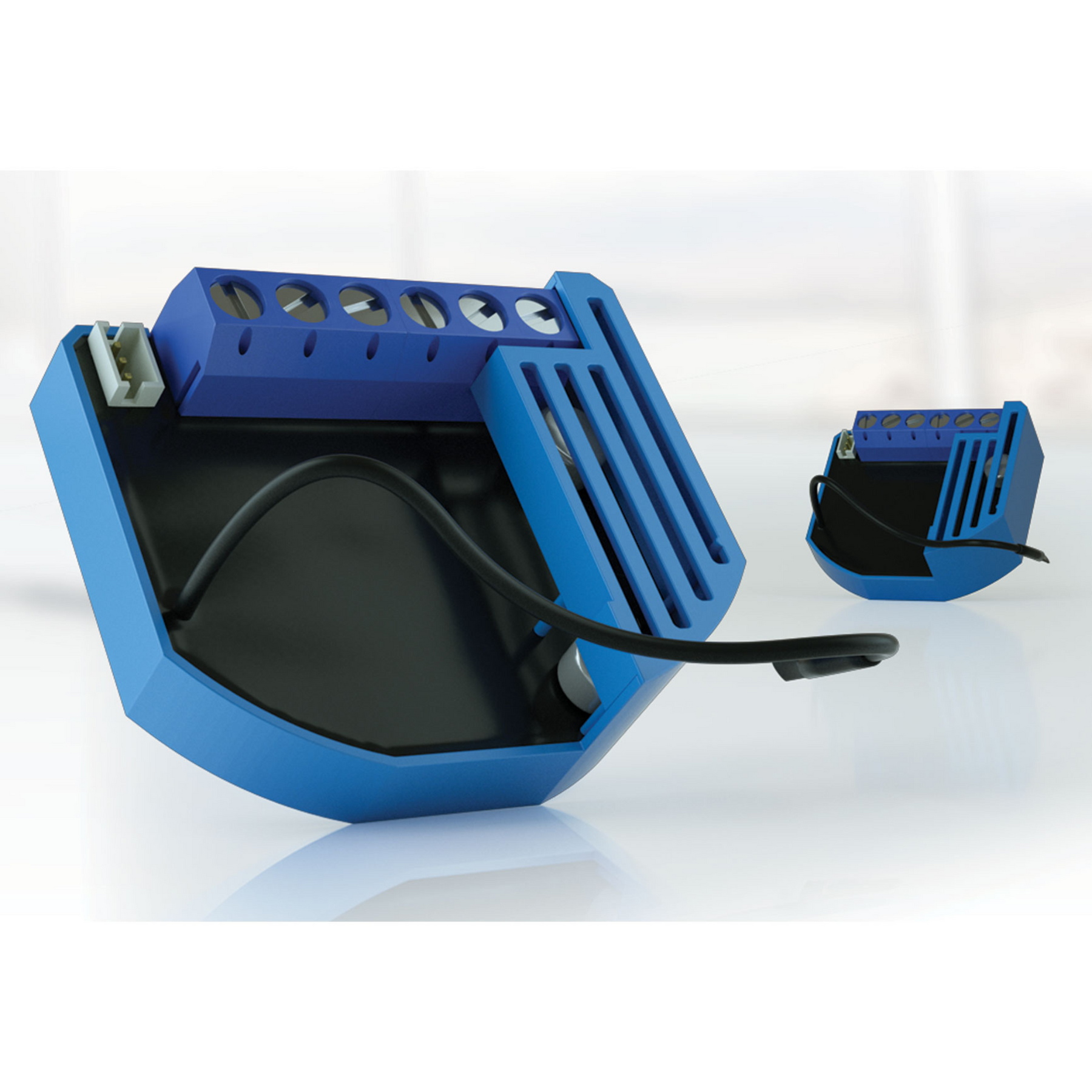

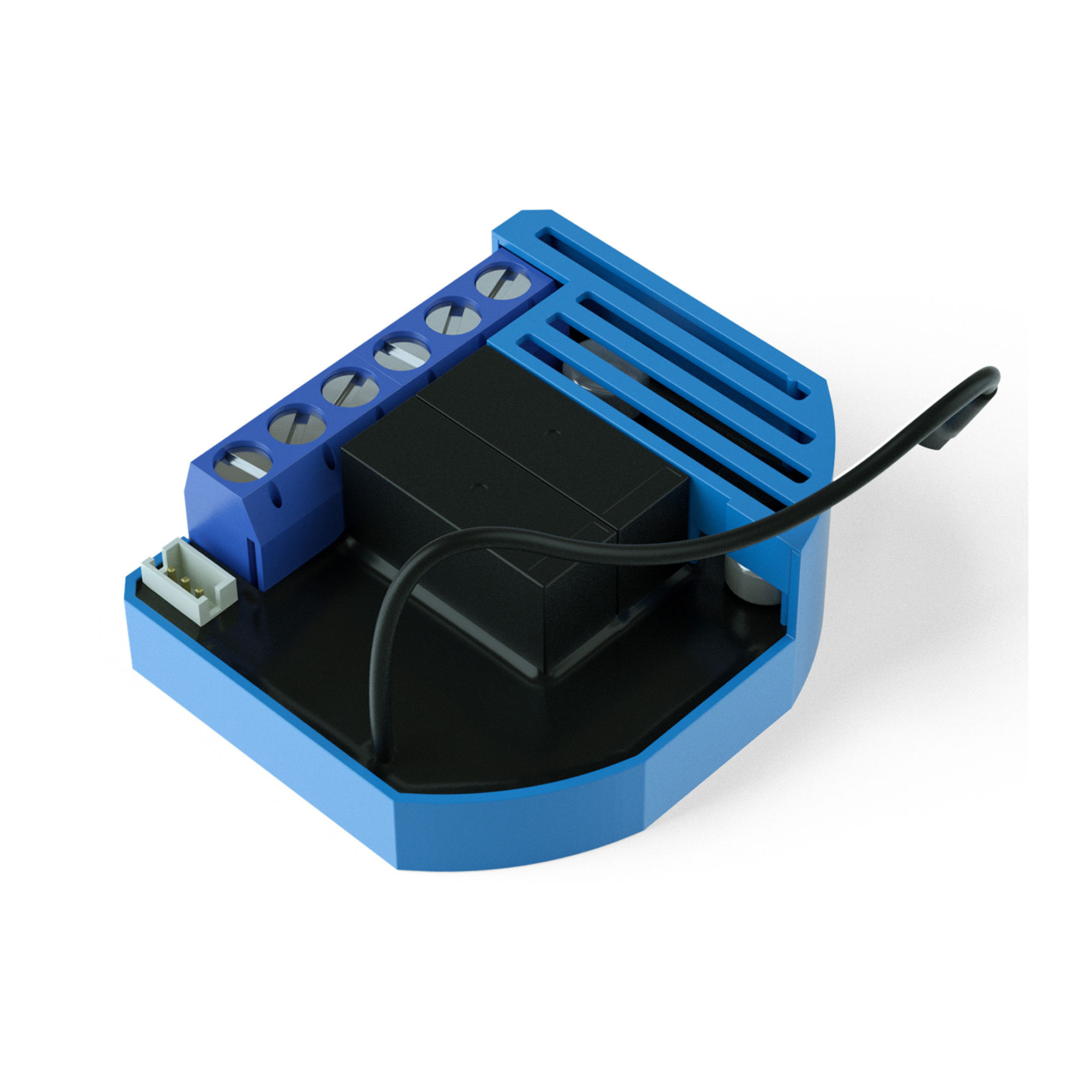

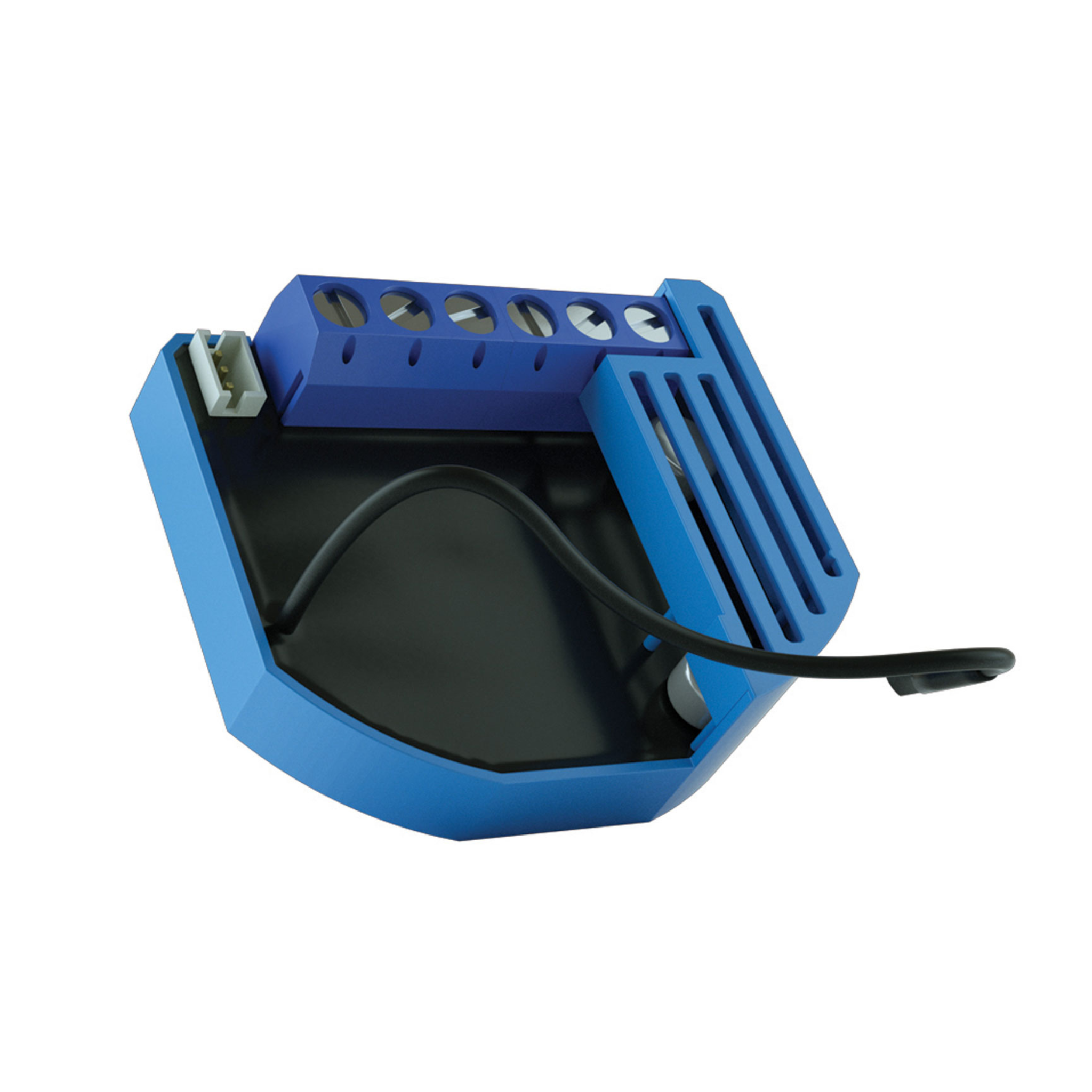

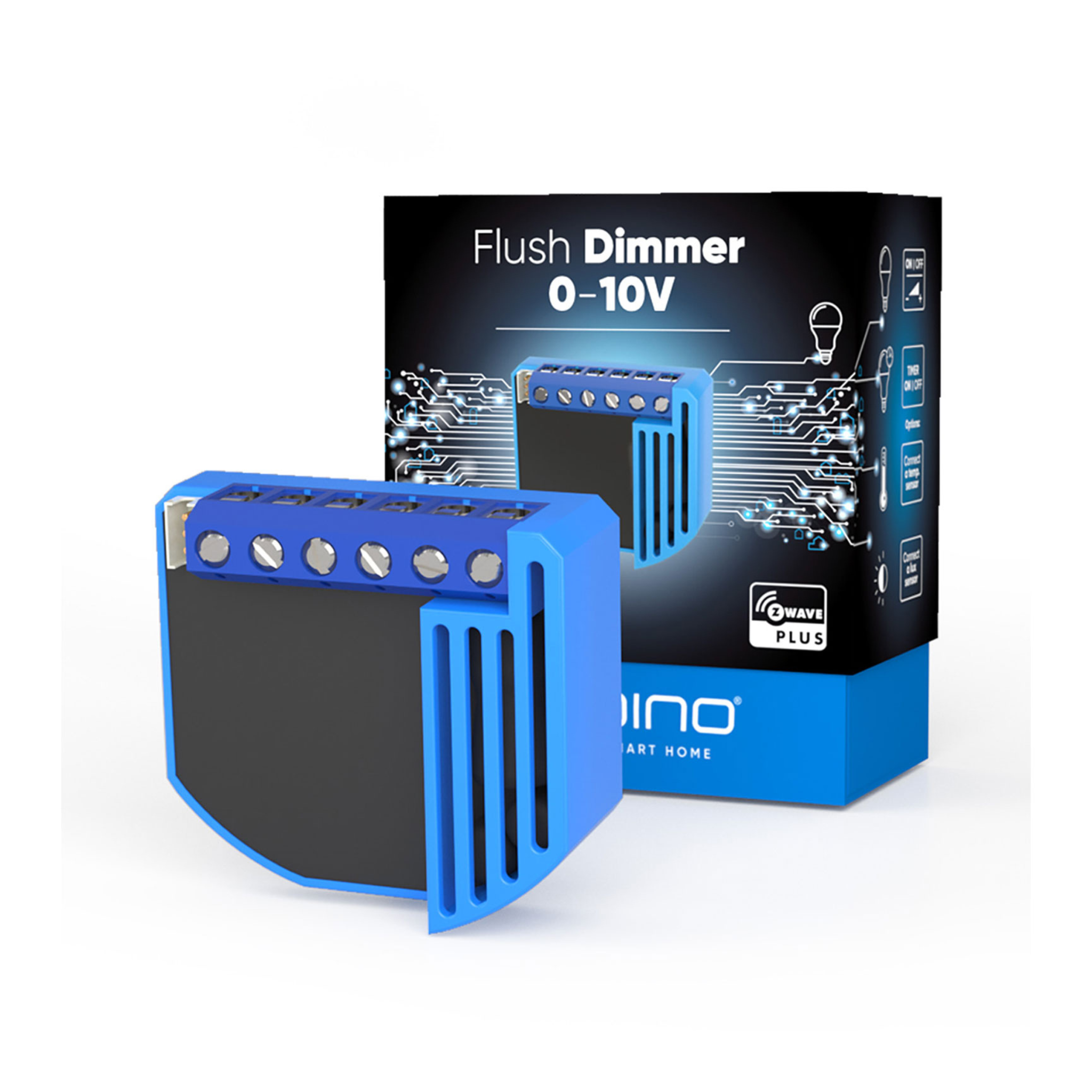

Qubino Flush Dimmer 0-10 V

With the Qubino Flush Dimmer 0-10V, existing lighting installations can be integrated into a Z-Wave network. Thus, the connected lights can still be switched and dimmed with the existing wall switch, but – thanks to Z-Wave – also via remote control, smartphone or sensor-controlled automation. The 0-10 V Dimmer is ideal for remotely dimming LED lights with low voltage ballast.

• Thinnest Z-Wave radio module for wall box installation
• Add digital temperature sensor (optional)
• Max. Output: 0…11 VDC
• Power Supply: 12…24 VDC
• Type: Reverse phase control dimmer
• Operating Temperature: -10°C ~ +40°C
• Measuring Temperature Range (optional sensor): -50°C ~ +125°C
• Standby Energy Consumption: 0.5 W
• Wireless Technology: Z-Wave Plus
• Dimensions: 42 x 37 x 15 mm
