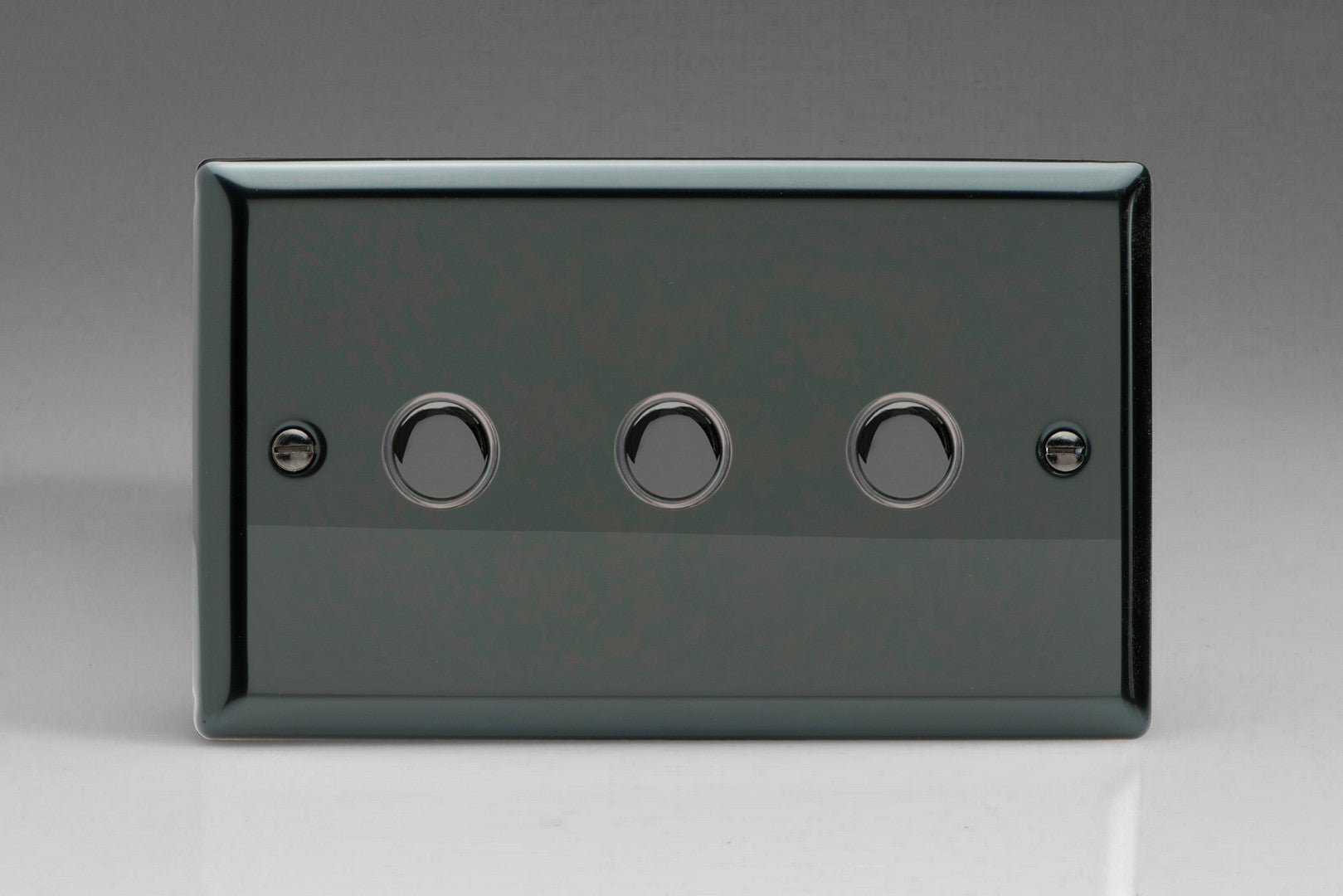

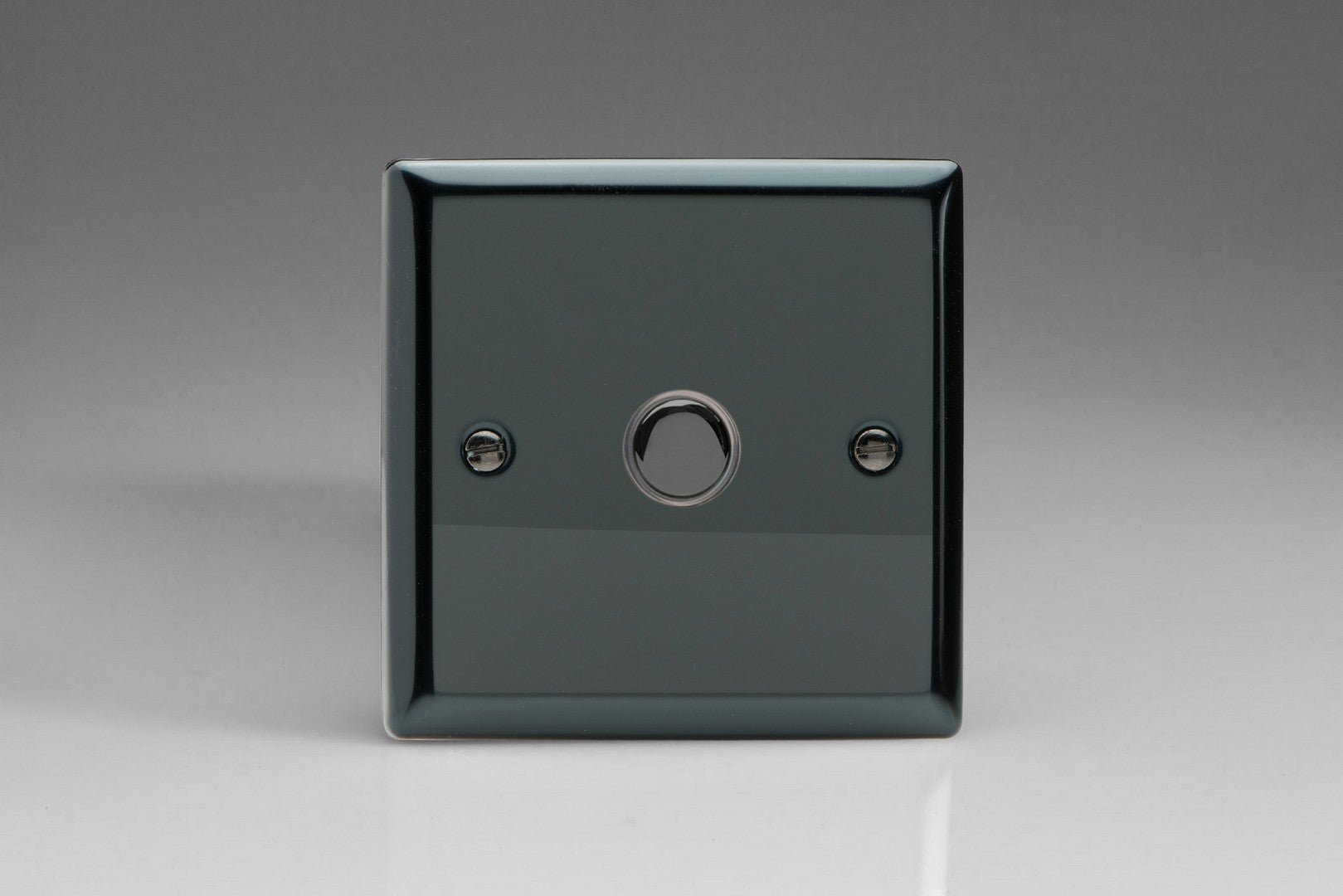

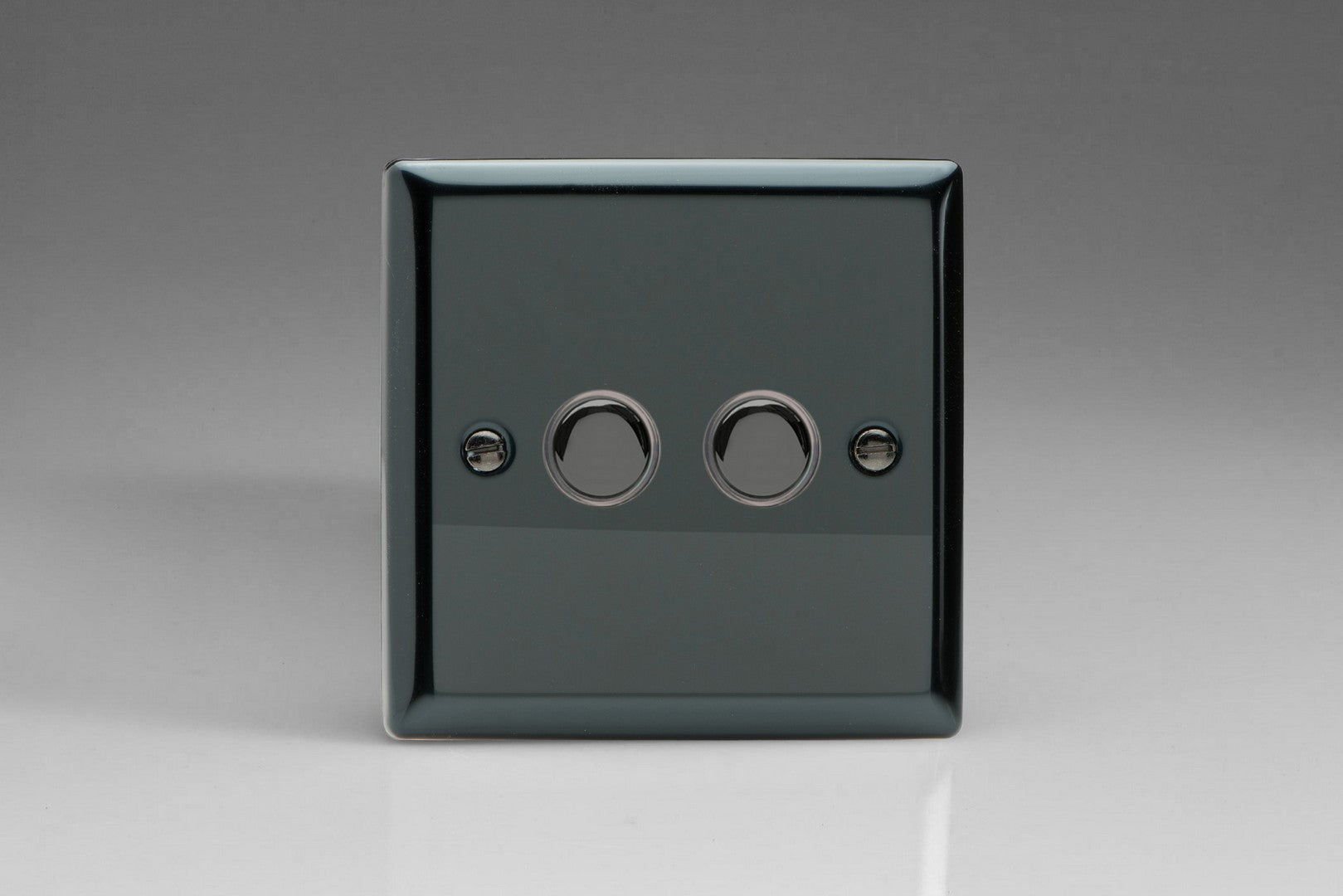

Push-to-Make Momentary Switch - Iridium Black

VARILIGHT's momentary push-to-make switches are perfect for use with dimmer and relay modules from FIBARO, Nice, Qubino, Shelly, Aeotec, Frient, etc

When wired with a module the switches will allow you to press for on, press for off and with dimmers press & hold to increase or decrease brightness of the lighting.

They can also be used with with blind controller modules, bells and applications where a momentary electric signal is required.

VARILIGHT Classic Collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.

Iridium Finish

The Iridium Black finish lends an air of sophistication and modernity with its deep, lustrous tone adding a touch of drama to stylish interiors.  VARILIGHT decorative wiring accessories are British made and covered by the VARILIGHT lifetime guarantee.

Dimensions:  1 &2-Gang 91x91x23mm, 3 & 4-Gang 91x150x23mm

Faceplate Depth: 8mm

Net Weight: 1-Gang 106g, 2-Gang 126g, 3-Gang 189g, 4-Gang g

Gross Weight: 1-Gang 108g, 2-Gang 128g, 3-Gang 192g, 4-Gang g

Fixing Centres: 1 &2-Gang 60.3mm, 3 & 4-Gang 120.6mm

Depth from Mounting Face: 11.5mm

Recommended Back Box Depth: 16mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 6A

Maximum Current Rating: 6A

Terminal (Live) Diameter: 3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic power supply.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 61058-1
