Push-to-Make Momentary Switch - Georgian Brass

VARILIGHT's momentary push-to-make switches are perfect for use with dimmer and relay modules from FIBARO, Nice, Qubino, Shelly, Aeotec, Frient, etc

When wired with a module the switches will allow you to press for on, press for off and with dimmers press & hold to increase or decrease brightness of the lighting.

They can also be used with with blind controller modules, bells and applications where a momentary electric signal is required.

VARILIGHT Classic Collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.

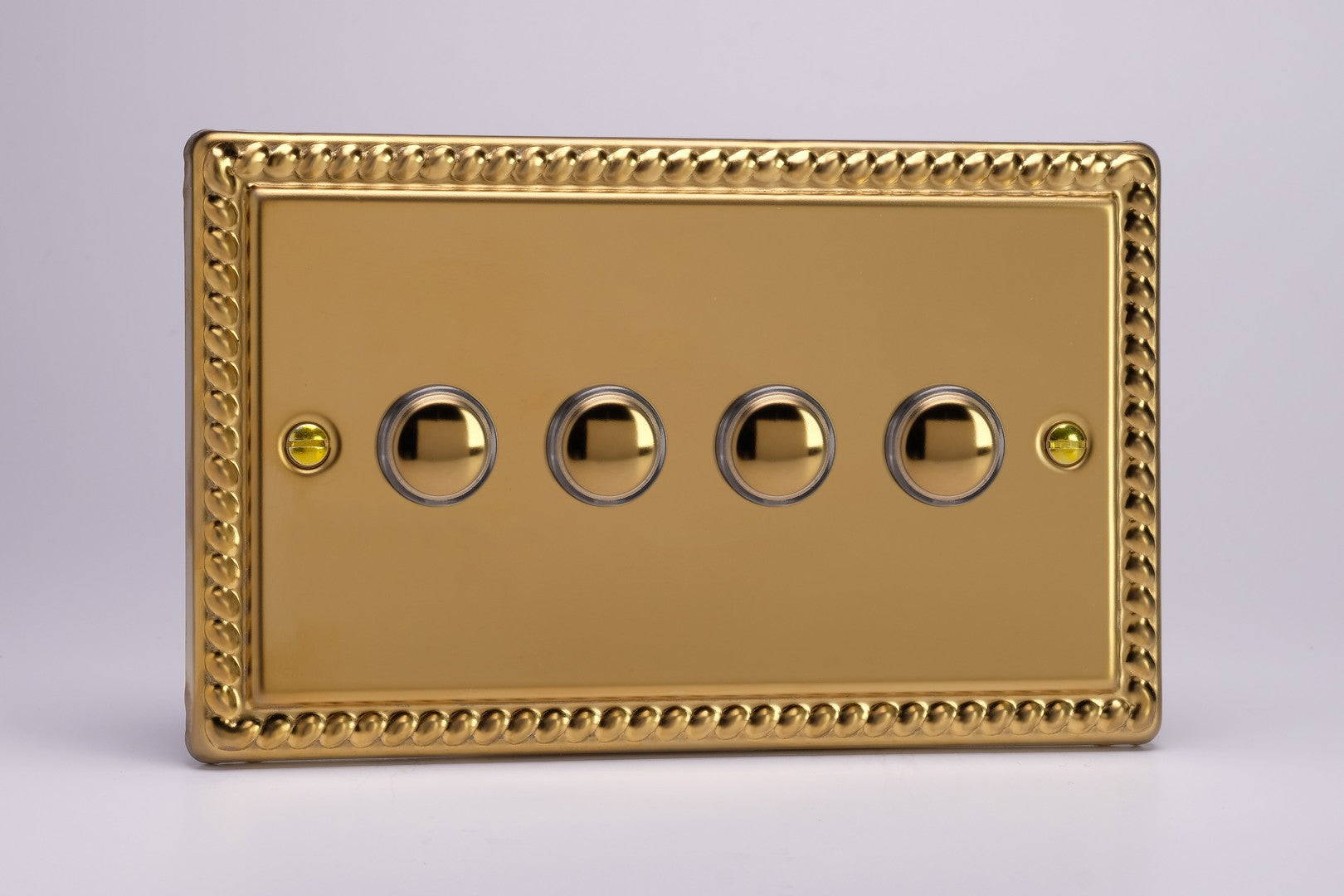

Georgian Brass Finish

Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal. VARILIGHT decorative wiring accessories are British made and covered by the VARILIGHT lifetime guarantee.

Dimensions:  1 &2-Gang 95x95x23mm, 3 & 4-Gang 95x155x23mm

Faceplate Depth: 7mm

Net Weight: 1-Gang 136g, 2-Gang 126g, 3-Gang 216g, 4-Gang 229g

Gross Weight: 1-Gang 138g, 2-Gang 128g, 3-Gang 218g, 4-Gang 232g

Fixing Centres: 1 &2-Gang 60.3mm, 3 & 4-Gang 120.6mm

Depth from Mounting Face: 10.8mm

Recommended Back Box Depth: 16mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 6A

Maximum Current Rating: 6A

Terminal (Live) Diameter: 3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic power supply.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 61058-1
