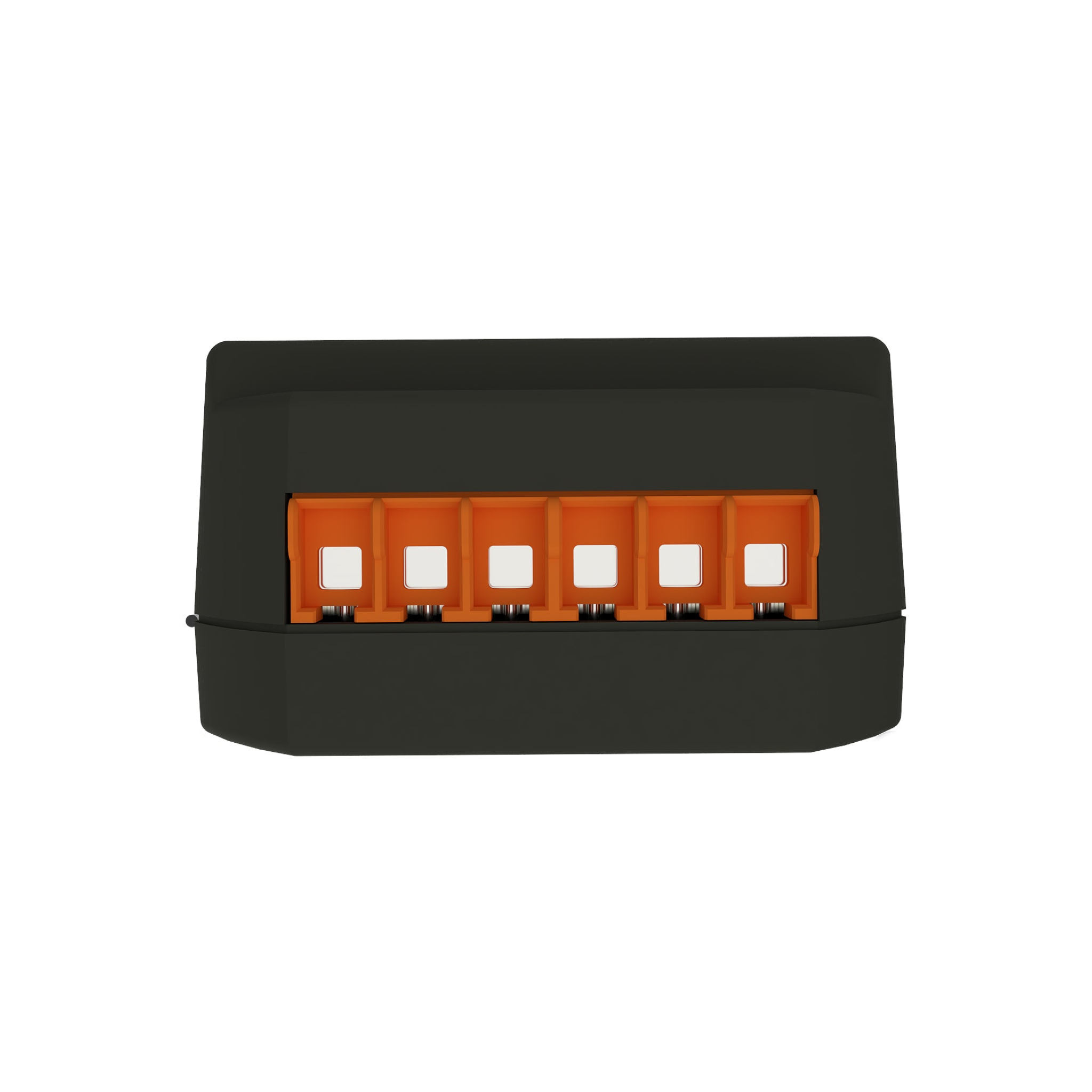

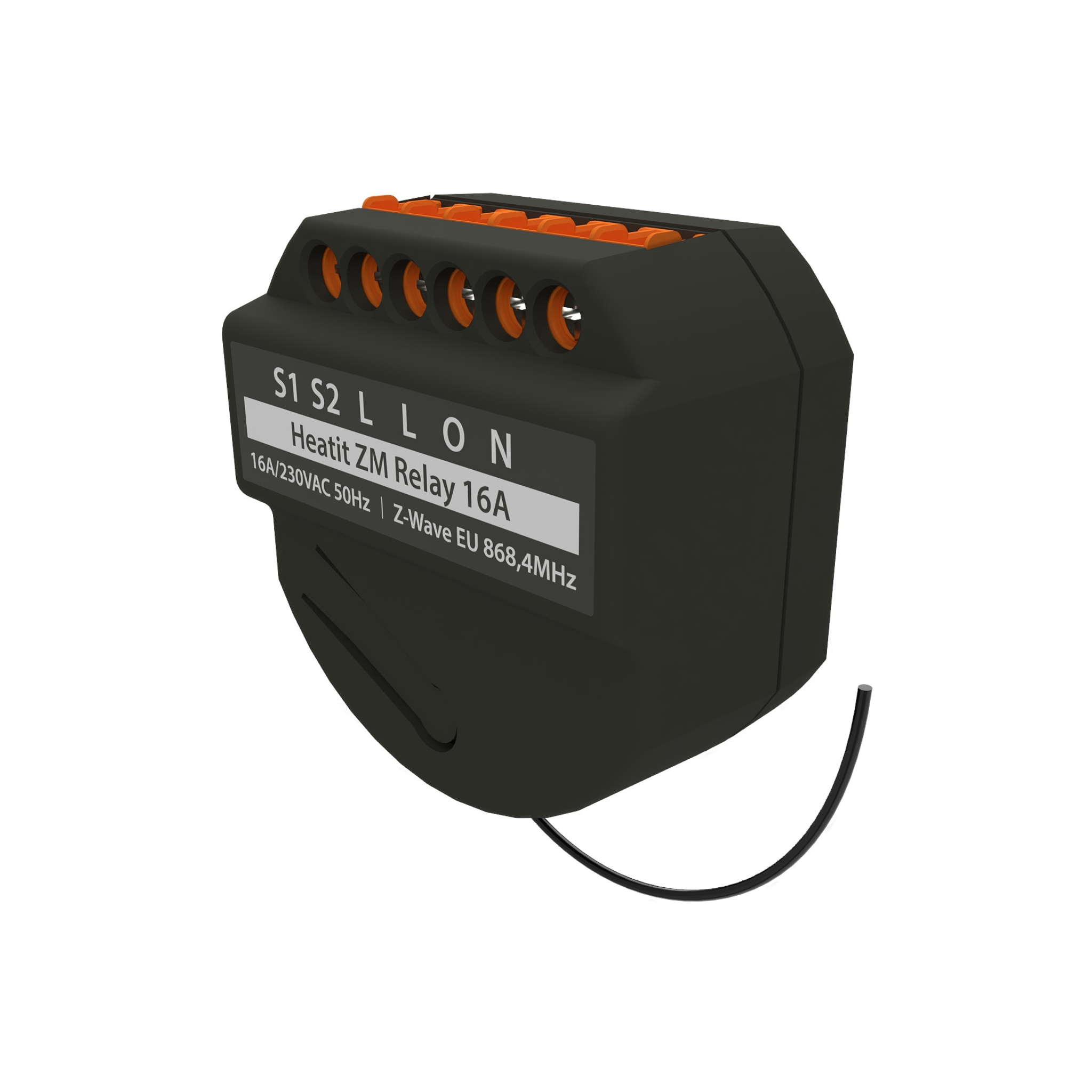

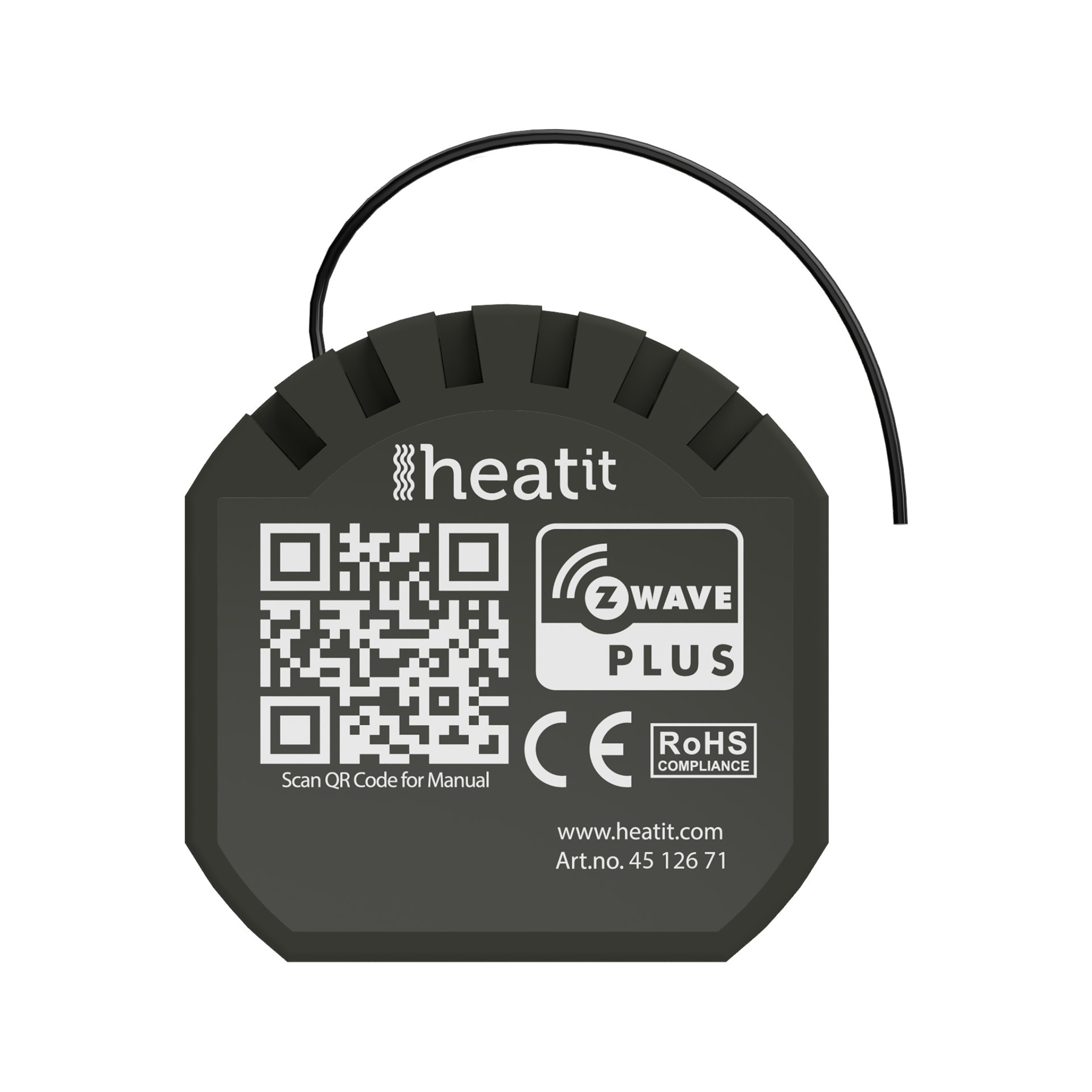

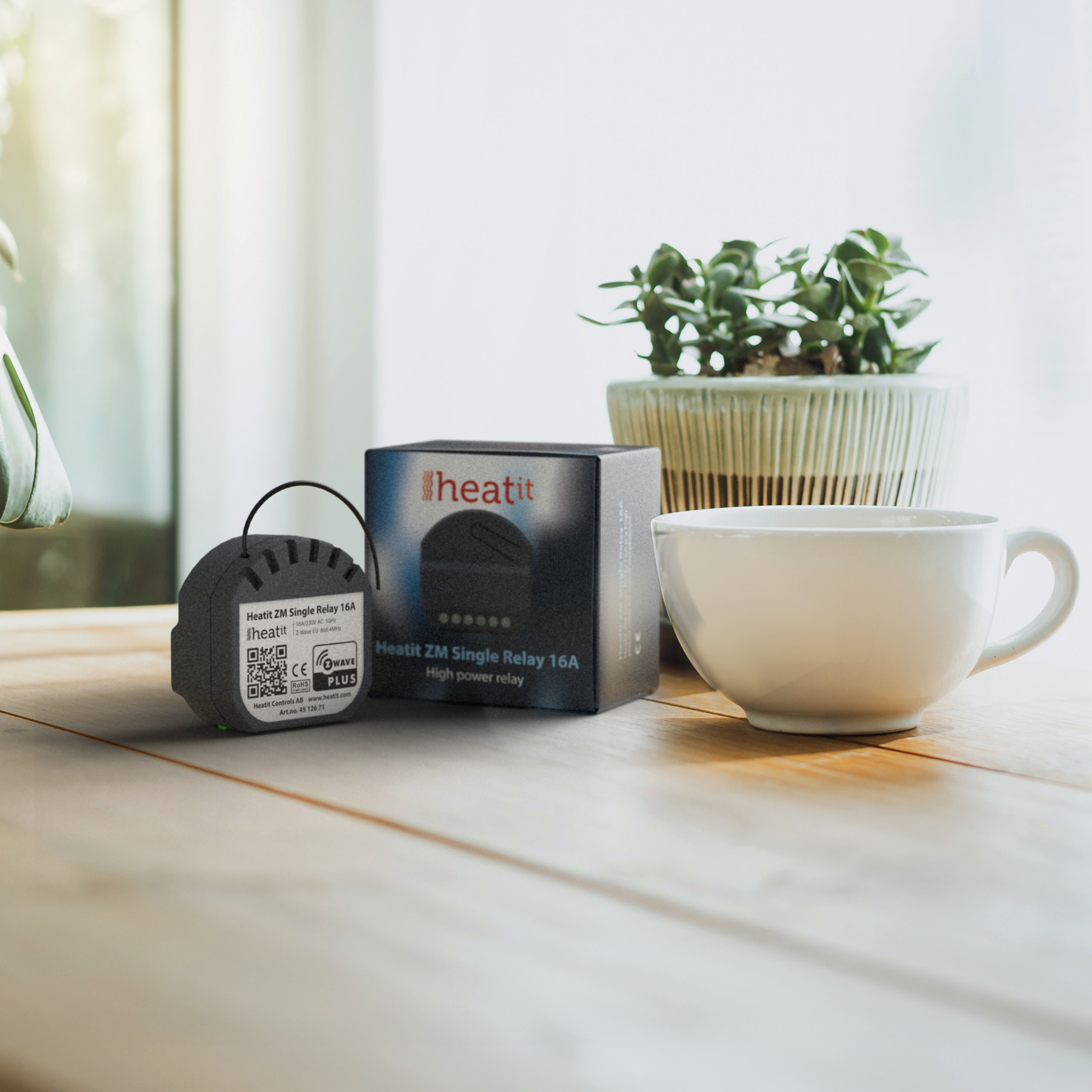

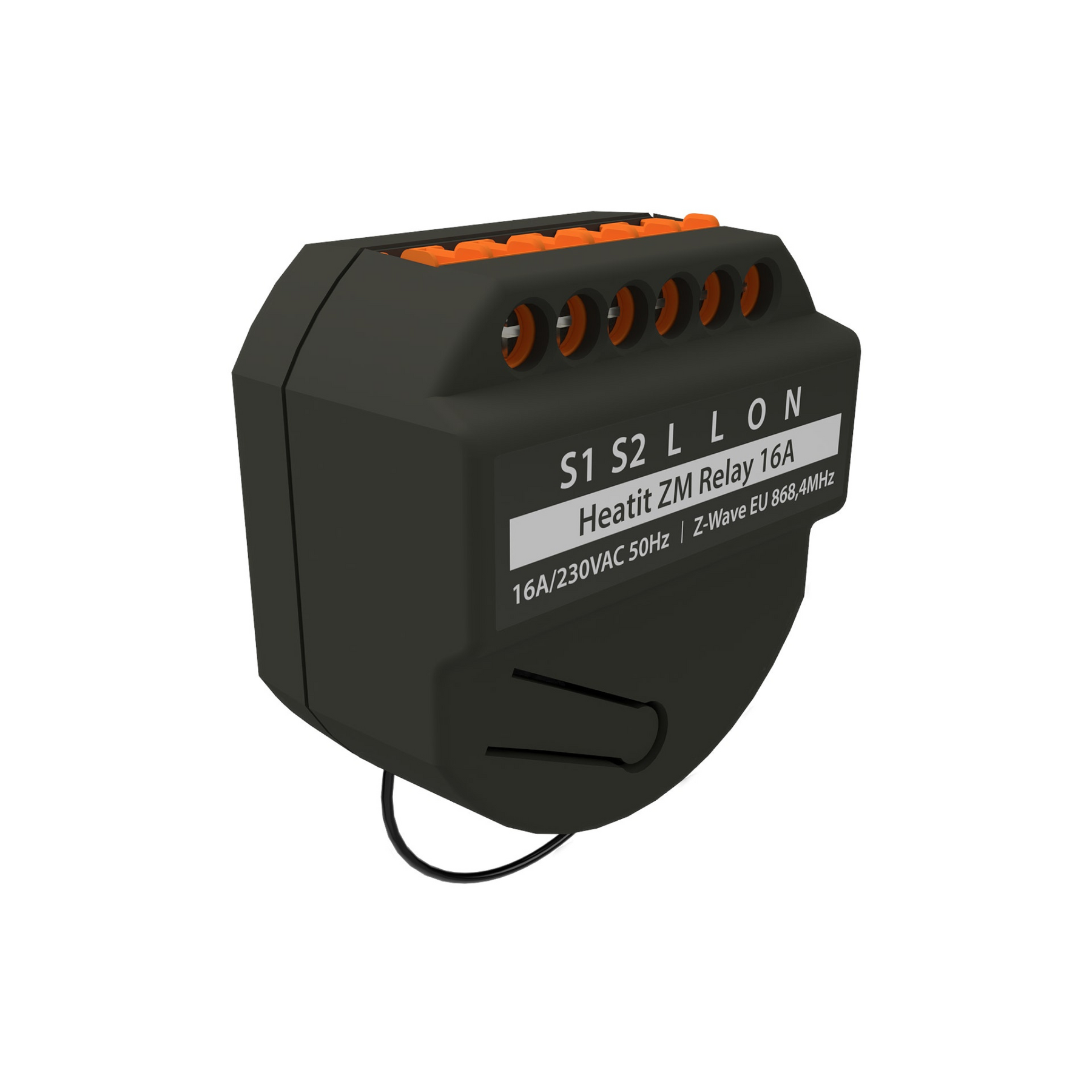

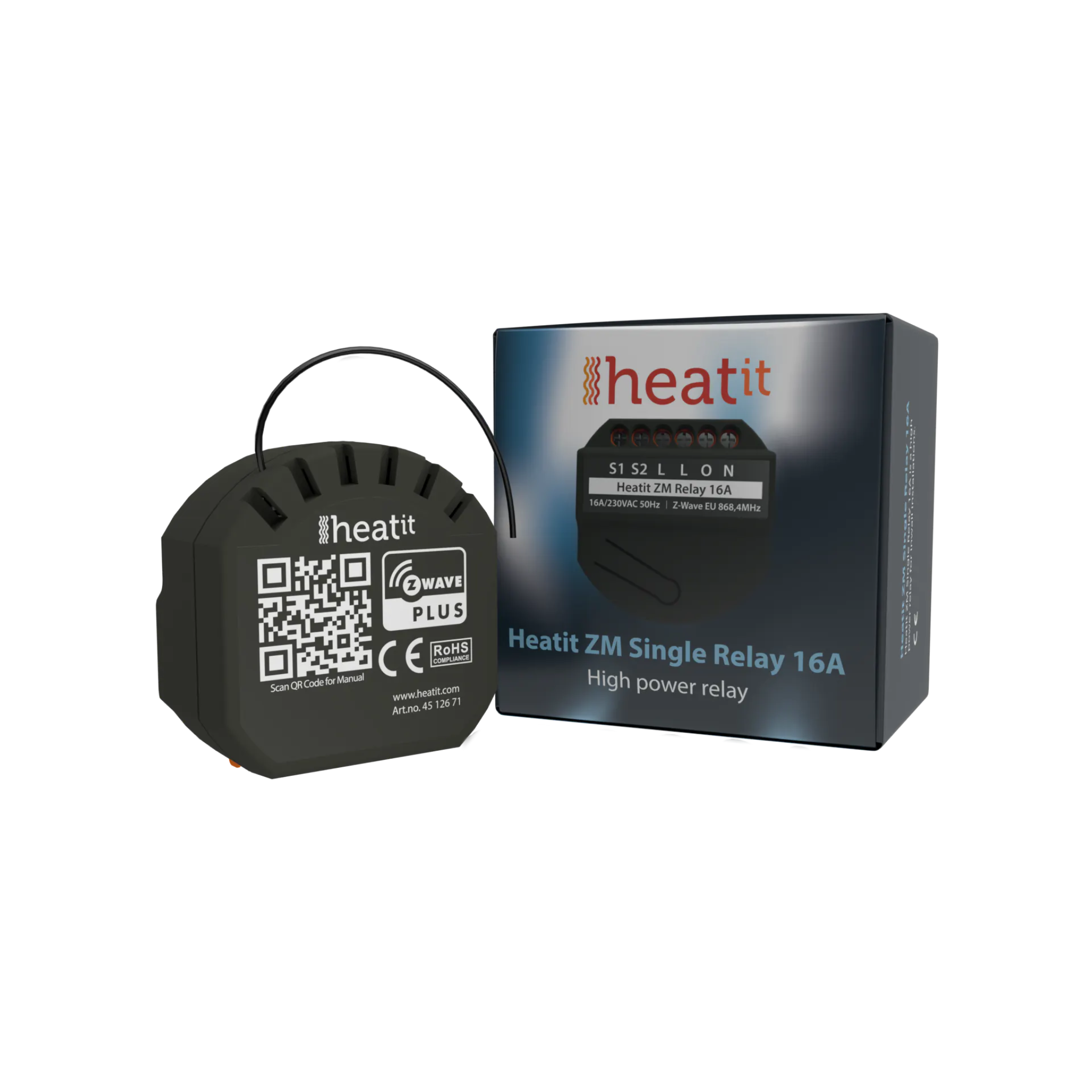

Heatit ZM Single Relay is a high power relay for in-wall installations. The relay allows you to control connected devices either through your Z-Wave network or via a wired switch. The module is equipped with a 16A relay and has a scene controller functionality.

The Heatit ZM Single Relay has a power metering feature that allows you to monitor the power consumption of your connected devices.

  • High power relay for in-wall installations
  • 16A/3600W
  • SmartStart
  • Scene Controller
  • Firmware update (OTA)
  • Power Metering
  • Supports encryption modes S0, S2 Authenticated Class, S2 Unauthenticated Class
  • IOT Protocol:Z-Wave - 868.4 MHz (EU)
  • Voltage:230V 50Hz
  • Max load (Watt - resistive load):3600
  • Max current (Ampere):16
  • Own power usage (watt):1
  • Max installation temperature (°C):40
  • Min. working temperature (°C):5
  • Protection grade (IP):IP 20
  • Certifications:Z-Wave Plus v2
  • Ambient temperature range in storage (°C):-30-70
  • Total gross effect (W):3600
  • International standard:WEE 2002/96/EC, EN 60669-1:2018, EN 60669-2-5:2016, EN 60669-2-1:2004 + A1:2009, EN 62479:2010, ETSI EN 301 489-3 V2.1.1(2017-03), ETSI EN 300 220-2 V3.1.1 (2017-02), IEC 965-2-1, RoHS 2002/95/EG, WEE 2002/96/EC, EN 60669-1:2004/ A12:2010
  • Signal range radio frequency (max no. meters):40
  • Max connection dimension (mm²):2,5mm²
  • Max ambient humidity (%RH):95% RF
  • Max temperature without load (°C):40
  • Max temperature with load (°C):40
  • Assembly / mounting location:Wall box ø≥60mm, depth ≥60mm
  • Product height (mm):46
  • Product length (mm):25
  • Product weight (gram):42
  • Product width (mm):45
  • IOT Chip type:Z-Wave 700 chip
  • Z-Wave encryption mode:S2 Unauthenticated Class, S2 Authenticated Class, S2 Unauthenticated Class, S0
