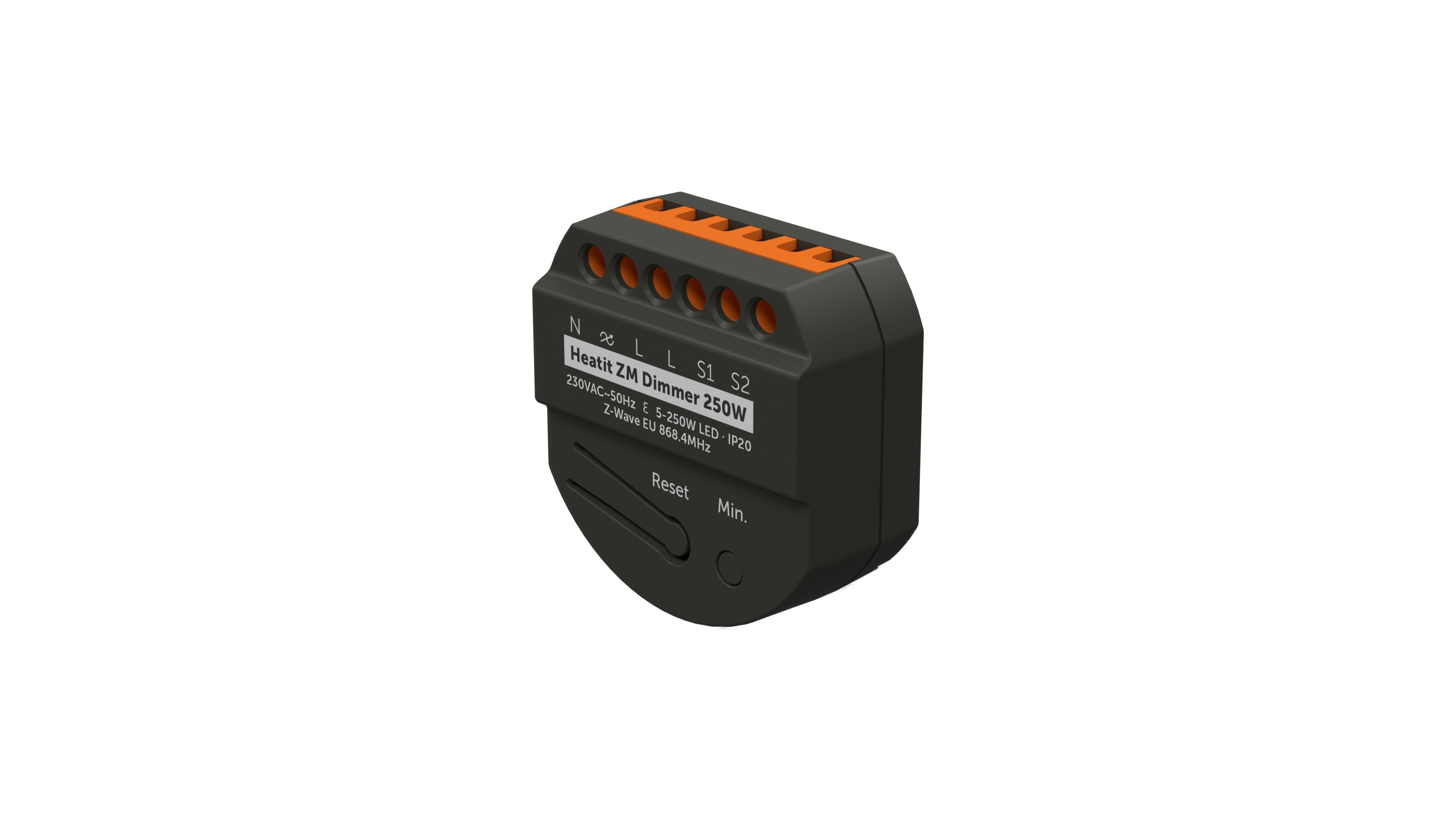

Heatit ZM Dimmer 250W
Heatit ZM Dimmer 250W
Whitehills
15 Olympic Court
Blackpool FY4 5GU
United Kingdom
Choose options
Heatit ZM Dimmer is an inwall dimmer for installation in European electrical wall boxes. The dimmer enables the user to control light sources from the Z-Wave network and/or an external switch.
The Heatit ZM Dimmer works on most low loads of both LEDs and other light fixtures without causing flickering.
The dimmer may be connected to two external switches that can be used to control the lights, associated devices and scenes.
Heatit ZM Dimmer has active power metering and it gives you real time information about your power consumption.
Features
-
Z-Wave
-
Dimmer for inwall installations
-
2 or 3-wire
-
5W - 250W
-
LED, incandescent and halogen
-
SmartStart
-
Scene controller
-
Firmware update (OTA)
-
Active power metering
-
Overload protection
-
Short circuit protection
-
Surge protection
-
Overheat protection
-
Two external switches
-
Min. dim level adjustable
-
Max. dim level auto-calibration
-
On/off functionality
-
Supports encryption mode S0, S2 Authenticated Class, S2 Unauthenticated Class
Technical
-
IOT Protocol:Z-Wave - 868.4 MHz (EU)
-
Voltage:230VAC
-
Max installation temperature (°C):40
-
Min installation temperature (°C):5
-
Protection grade (IP):IP20
-
Certifications:Z-Wave Plus
-
Ambient humidity (RH non-condensing %):10-85
-
Ambient temperature range in storage (°C):-30-70
-
Declarations:CE declaration, Nemko, CE, Z-Wave Plus v2, RoHS, Reach
-
International standard:CE, Nemko, Z-Wave Plus
-
Signal range radio frequency (max no. meters):40
-
Max connection dimension (mm²):2,5mm²
-
Assembly / mounting location:European Junction Box
-
Package size:65x65x35mm
-

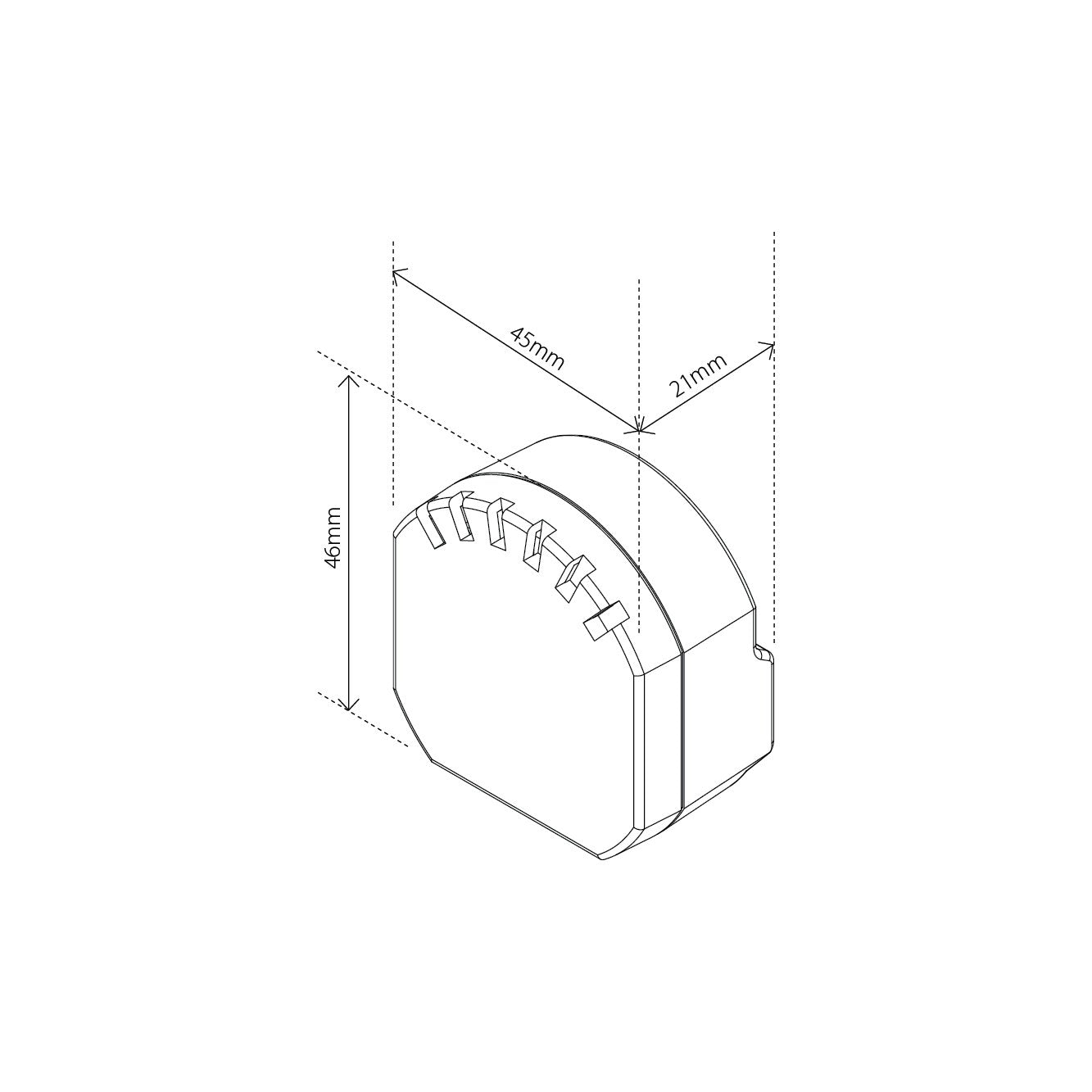

Product height (mm):21
-
Product length (mm):45
-
Product weight (gram):37
-
Product width (mm):46
-
IOT Chip type:Z-Wave 800 chip
-
Push buttons:2 push buttons
-
Z-Wave encryption mode:S0, S2 Authenticated Class, S2 Unauthenticated Class
