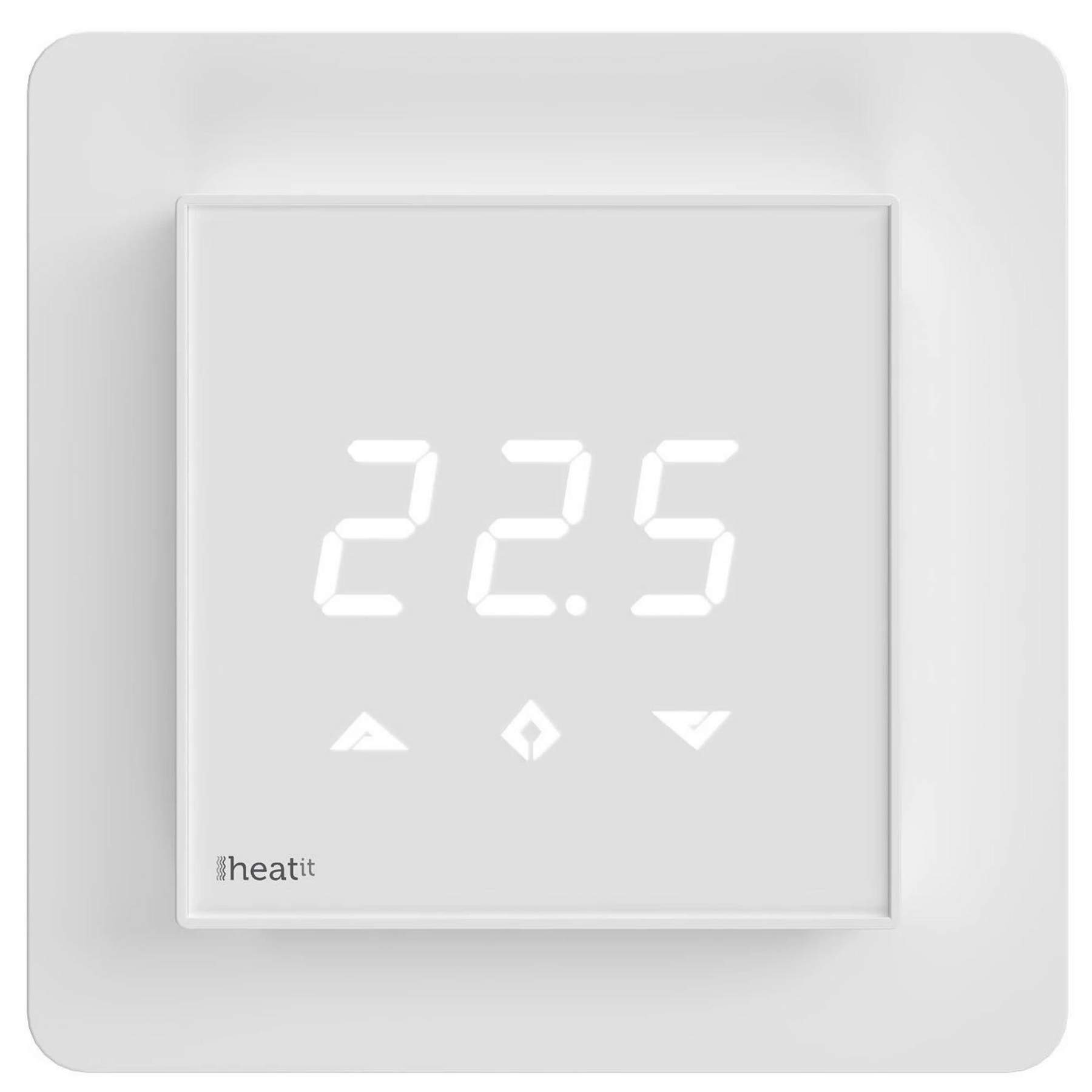

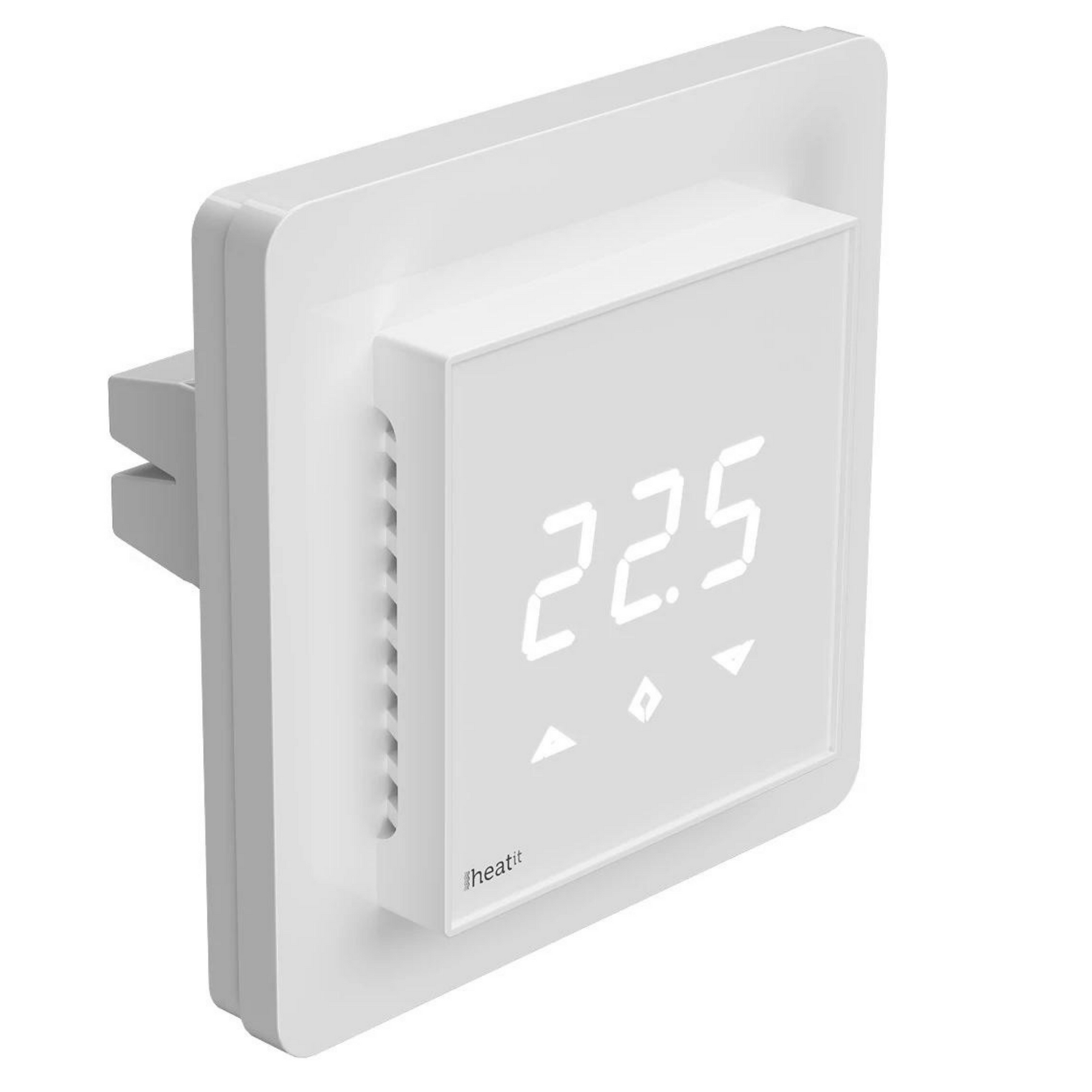

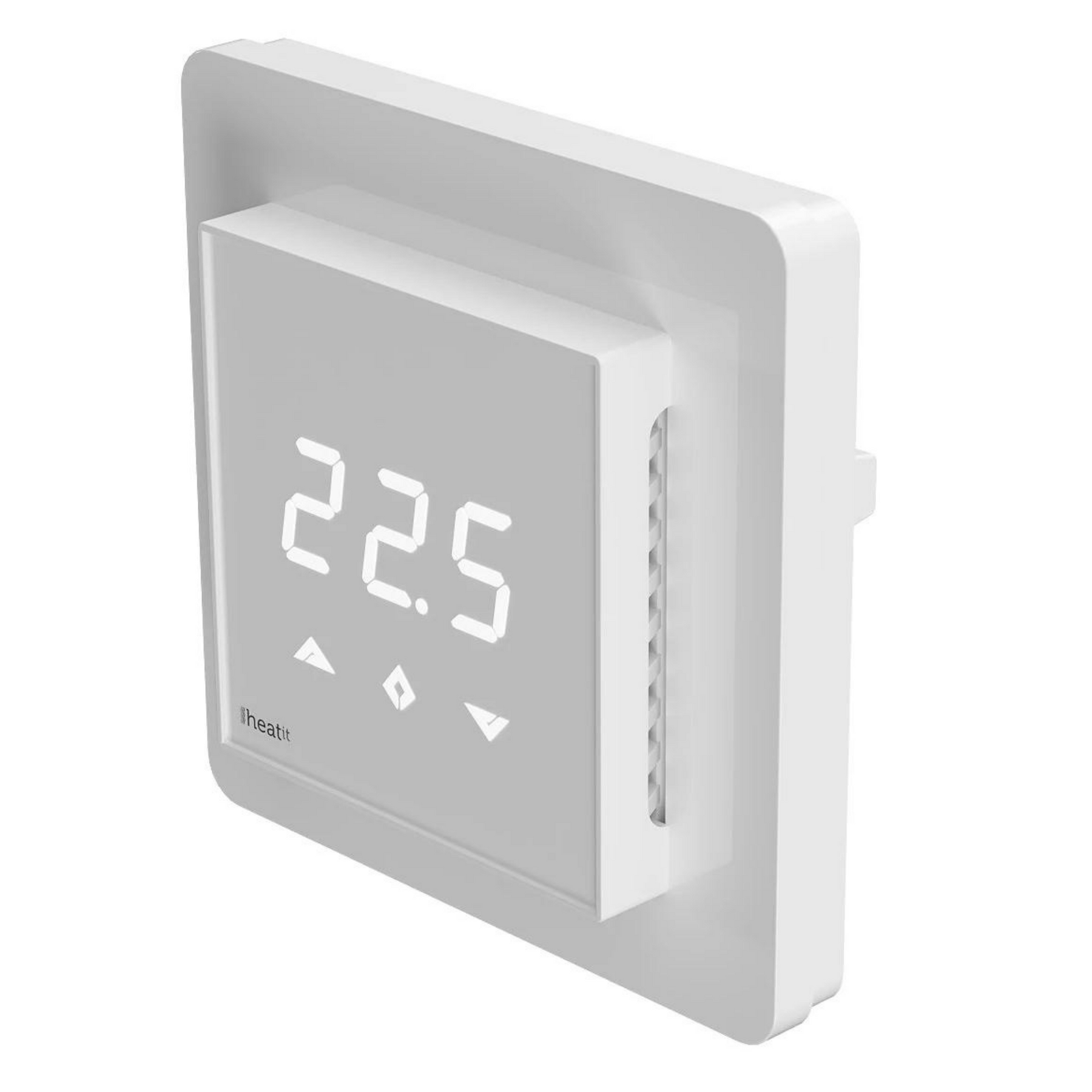

Heatit Z-TRM3 White Z-Wave Electric Heating Thermostat 3600W 16A

The Heatit Z-TRM3 is an electronic thermostat for electric underfloor heating. Mounted in standard wall box, the thermostat has a built-in Z-Wave chip that can be connected to control systems. Being a part of the Z-Wave system means it perfectly integrates with our system to enable whole home heating control, including: grouping, scheduling and responsive heating, etc.

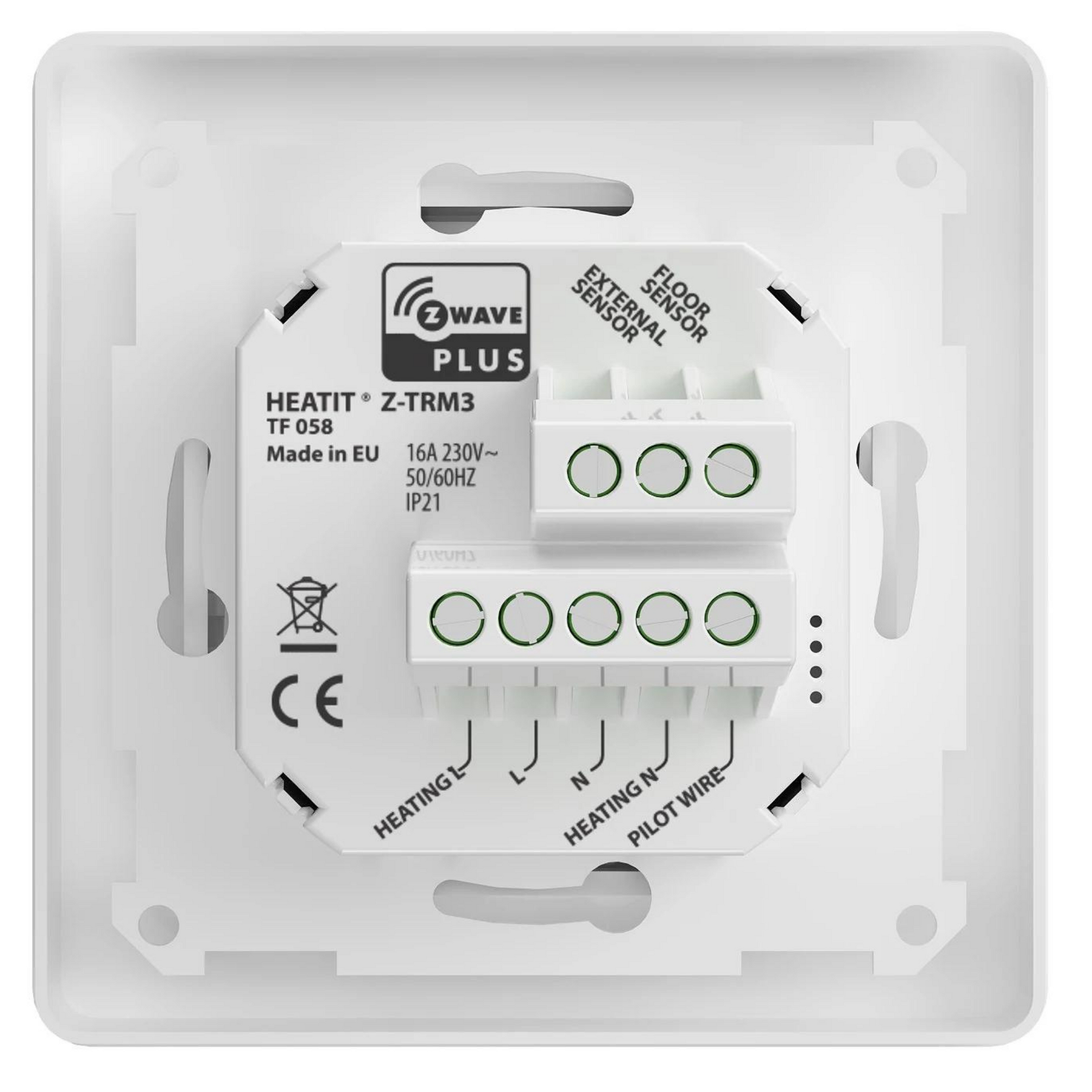

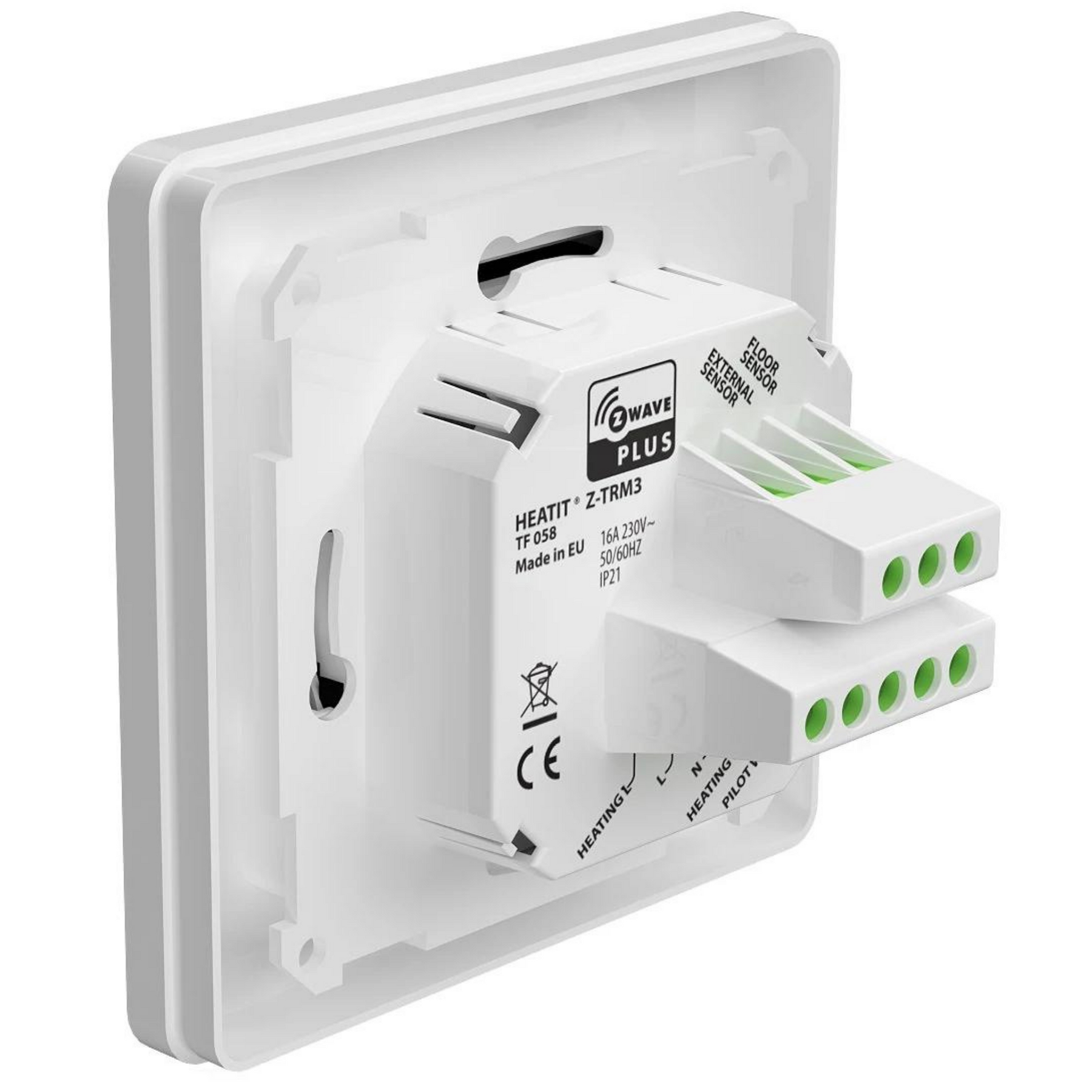

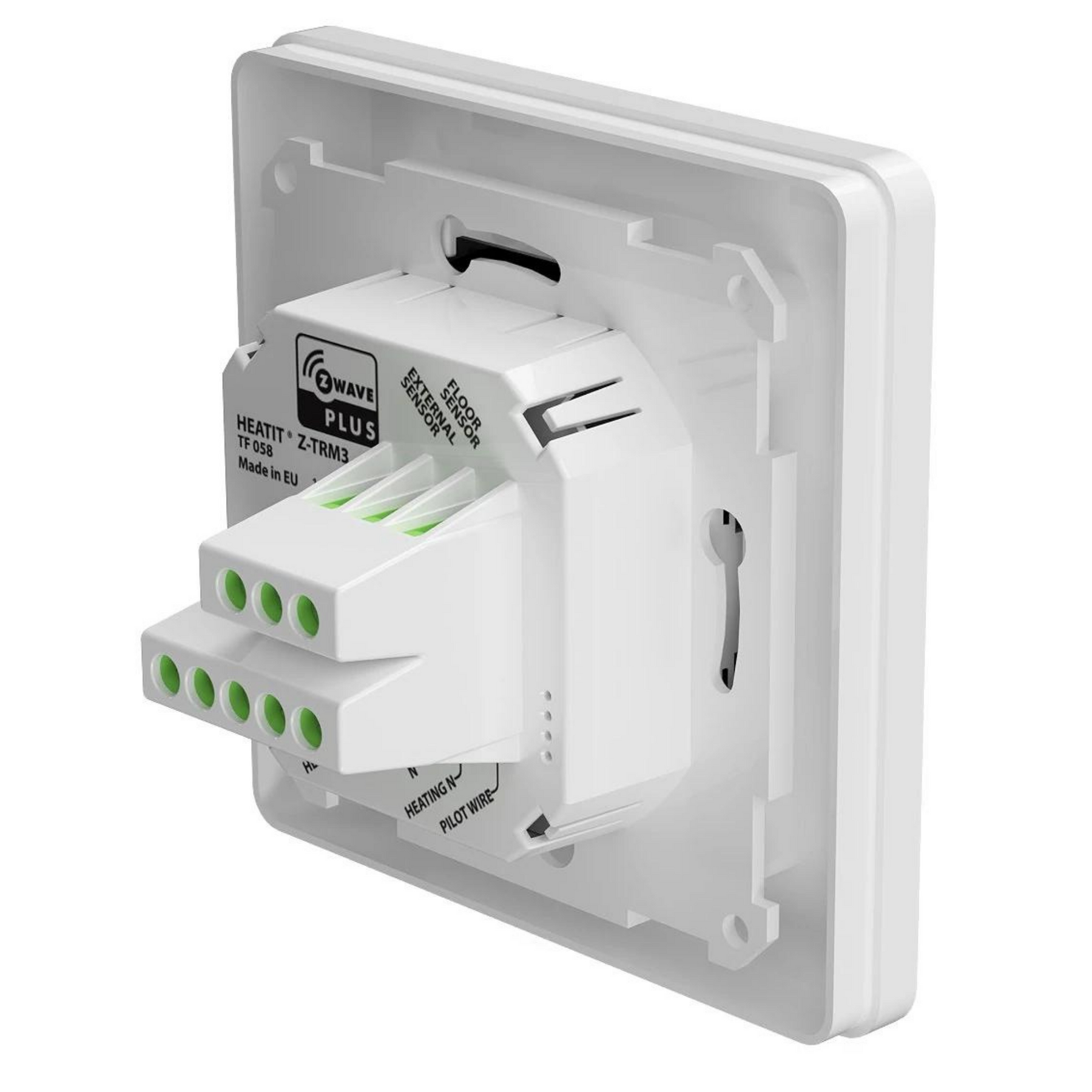

The thermostat can withstand a load of max. 16A / 3600W at 230VAC. We recommend a contactor for loads above 13A. The thermostat can be connected to two external sensors. The thermostat can be connected in 5 associations, so that it can, for example, control 5 external relays, wall plugs etc.

The Z-TRM3 includes a 10K (at 25°C) temperature sensor that is 3m in length.

Features

• Regulator for waterbased heating systems
• Relay outputs can control actuators in a waterbased floor heating system
• May be used to control both 24V actuators and 230VAC actuators
• May be used with a Heatit Z-Temp2 or Heatit Z-TRM3 thermostat in each zone
• DIN-rail mounting
• Works as a Z-Wave repeater to improve the Z-Wave network range
• Firmware update (OTA)
• Supports encryption mode: S0, S2 Authenticated Class, S2 Unauthenticated Class

Technical

• IOT Protocol:Z-Wave - 868.4 MHz (EU)
• Voltage:230V 50Hz
• Max load (Watt - resistive load):3600
• Max current (Ampere):16
• Own power usage (watt):0.2
• Max installation temperature (°C):40
• Min installation temperature (°C):5
• Min. working temperature (°C):5
• Temperature interval:External room sensor 5°C - 40°C
• Hysteresis:0,3°C to 3,0°C (default hysteresis 0,5°C)
• Compatible NTC-sensors (k? @ 25°C):10, 12, 15, 22, 33, 47
• Protection grade (IP):IP 21
• Certifications:Z-Wave Plus

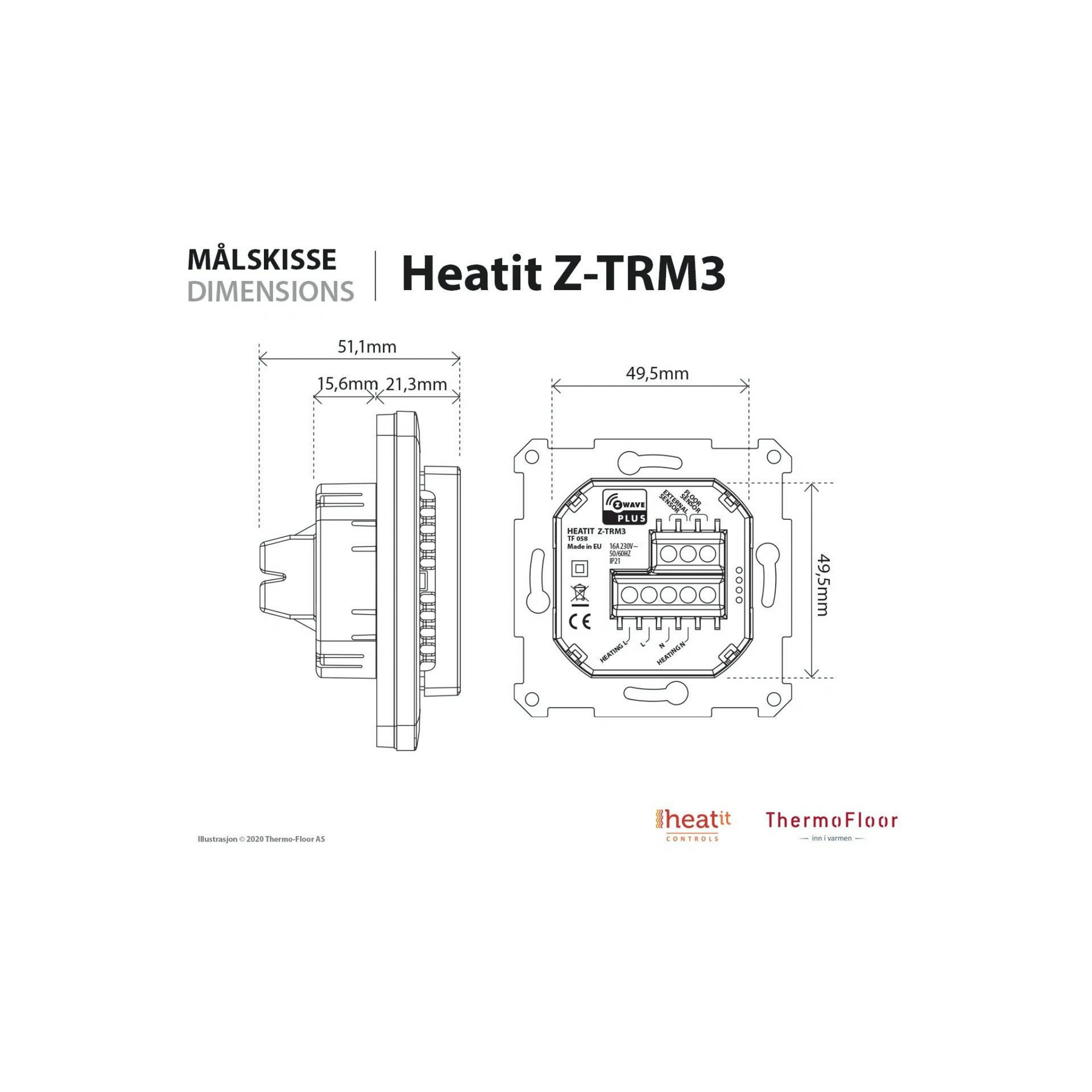

• Dimensions (LxHxW):52x86x86
• Total gross effect (W):3600
• Declarations:CE
• International standard:CE, EMC 2014/30/EU, EN 60730-1, EN 60730-2-9, LVD 2014/35/EU, RoHS 2011/65/EU
• Signal range radio frequency (max no. meters):40
• SDK:6.81.06
• Max connection dimension (mm²):2,5mm²
• Max ambient humidity (%RH):80% RF
• Max regulating temperature (ºC):40
• Max temperature without load (°C):40
• Max temperature with load (°C):35
• Model type:Termostat
• Product height (mm):52
• Product length (mm):86
• Product weight (gram):109
• Product width (mm):86
• IOT Chip type:Z-Wave 500 chip
• Z-Wave encryption mode:S0, S2 Authenticated Class, S2 Unauthenticated Class, AES-128 encryption

Manuals

Heatit Z-TRM3 Manual
