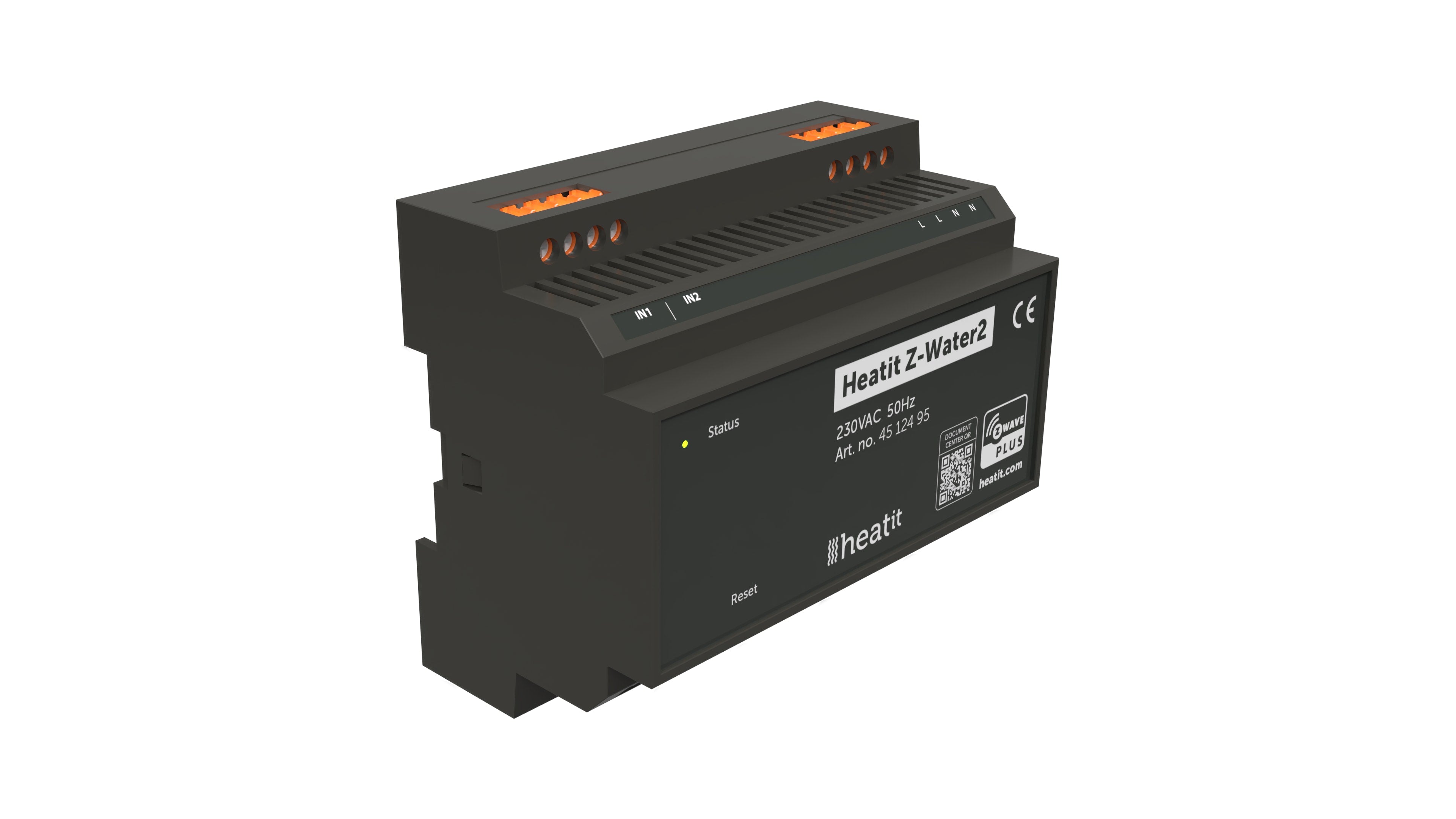

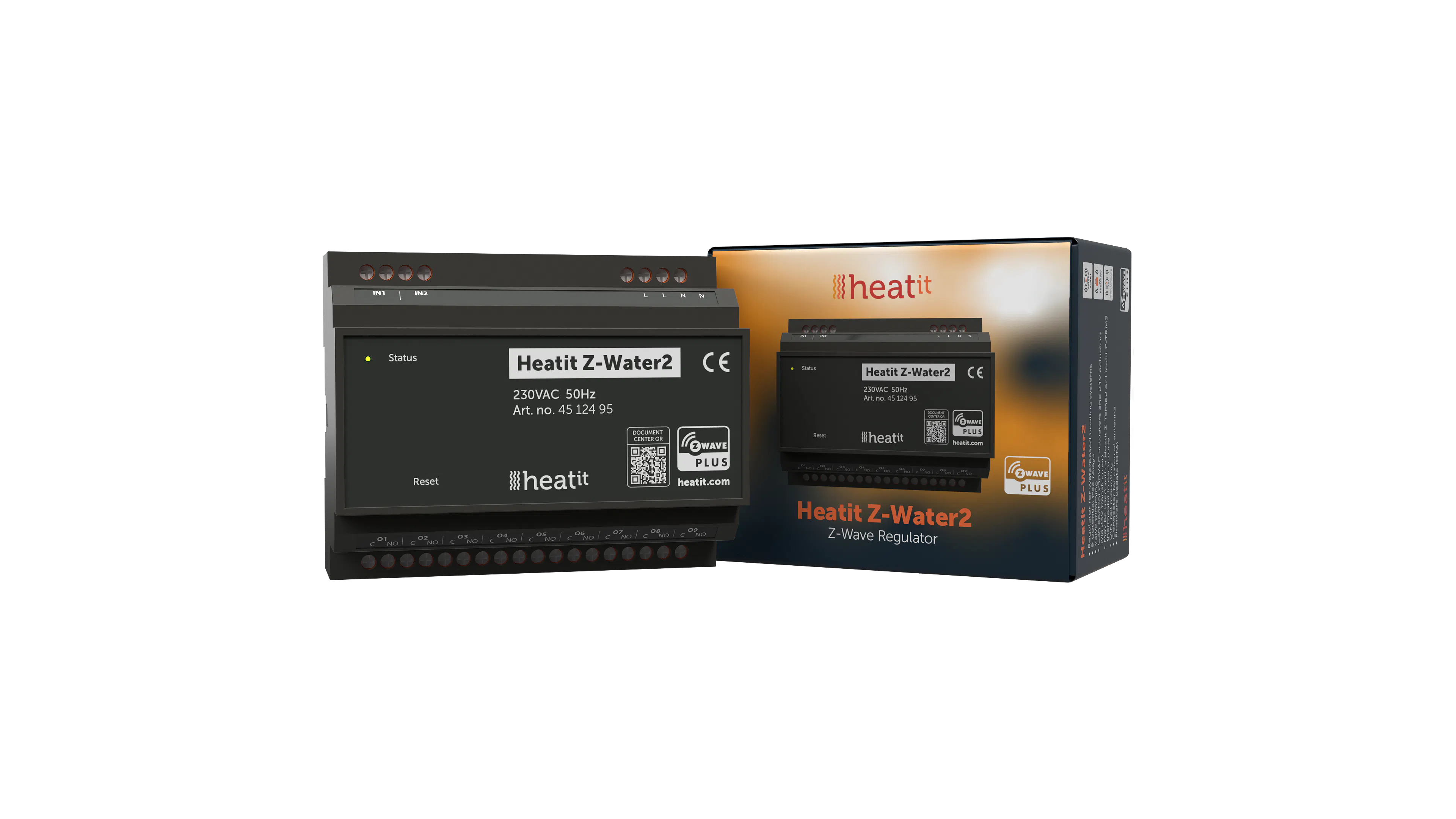

Heatit Z-Water2 Z-Wave Wet Underfloor Heating Controller

Heatit Z-Water2 is a DIN-rail regulator for controlling waterbased heating systems. The module clips right onto a DIN-rail and allows you to control your waterbased heating through your Z-Wave network. Heatit Z-Water2 is equipped with 9 potential free relays for actuators. It also has 2 analog inputs for temperature sensors.

The Heatit Z-Water2 relays may be controlled by associations with other Z-Wave thermostats e.g Heatit. Each relay can control one or several actuators in your heating system.

Features

• Z-Wave

• Regulator for waterbased heating systems

• 9 potential free relays

• Valve exercise

• Can control 230VAC actuators and 24V actuators from an external power supply

• Can be used with Heatit thermostats in each heating zone

• DIN-rail mounting

• Connector for external antenna

• SmartStart

• Firmware update (OTA)

• Supports encryption mode S0, S2 Authenticated Class, S2 Unauthenticated Class


Technical

• IOT Protocol:Z-Wave - 868.4 MHz (EU)

• Voltage:240V, 230V 50Hz, 230VAC 50Hz

• Max current (Ampere):5

• Own power usage (watt):0.4

• Max installation temperature (°C):40

• Min installation temperature (°C):5

• Min. working temperature (°C):5

• Protection grade (IP):IP20

• Certifications:Z-Wave Plus

• Ambient humidity (RH non-condensing %):10-85

• Ambient temperature range in storage (°C):-30-70

• Total gross effect (W):1350

• Declarations:CE, CE declaration, Z-Wave Plus

• International standard:CE

• Signal range radio frequency (max no. meters):40

• Max connection dimension (mm²):2,5mm²

• Max ambient humidity (%RH):85% RF

• Max temperature without load (°C):40

• Max temperature with load (°C):40

• Assembly / mounting location:DIN Rail

• Package size:1

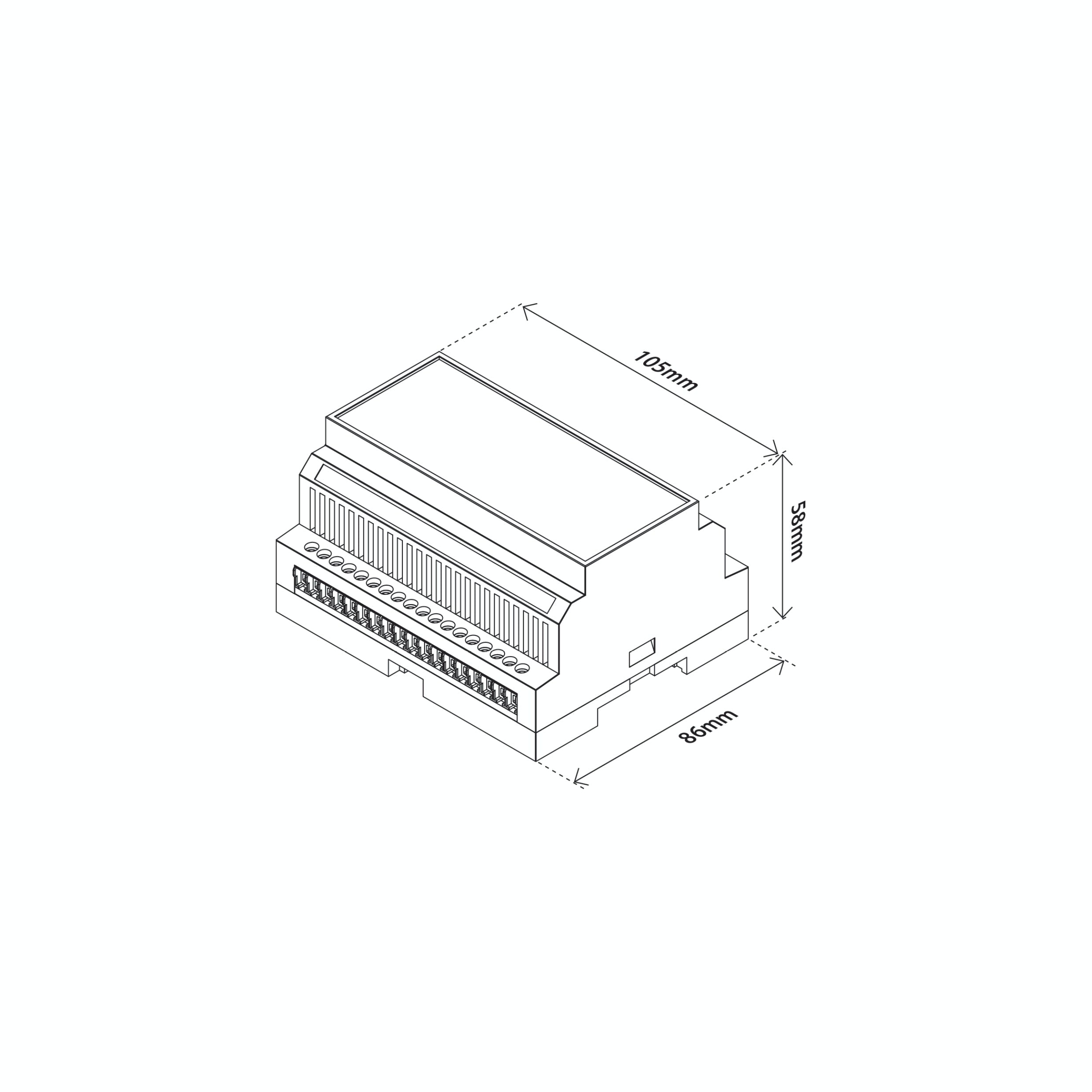

• Product height (mm):58

• Product length (mm):86

• Product width (mm):105

• IOT Chip type:Z-Wave 800 chip

• Z-Wave encryption mode:S2 Unauthenticated Class, S2 Authenticated Class, S0


Manuals

Heatit Z-Water2 Manual
