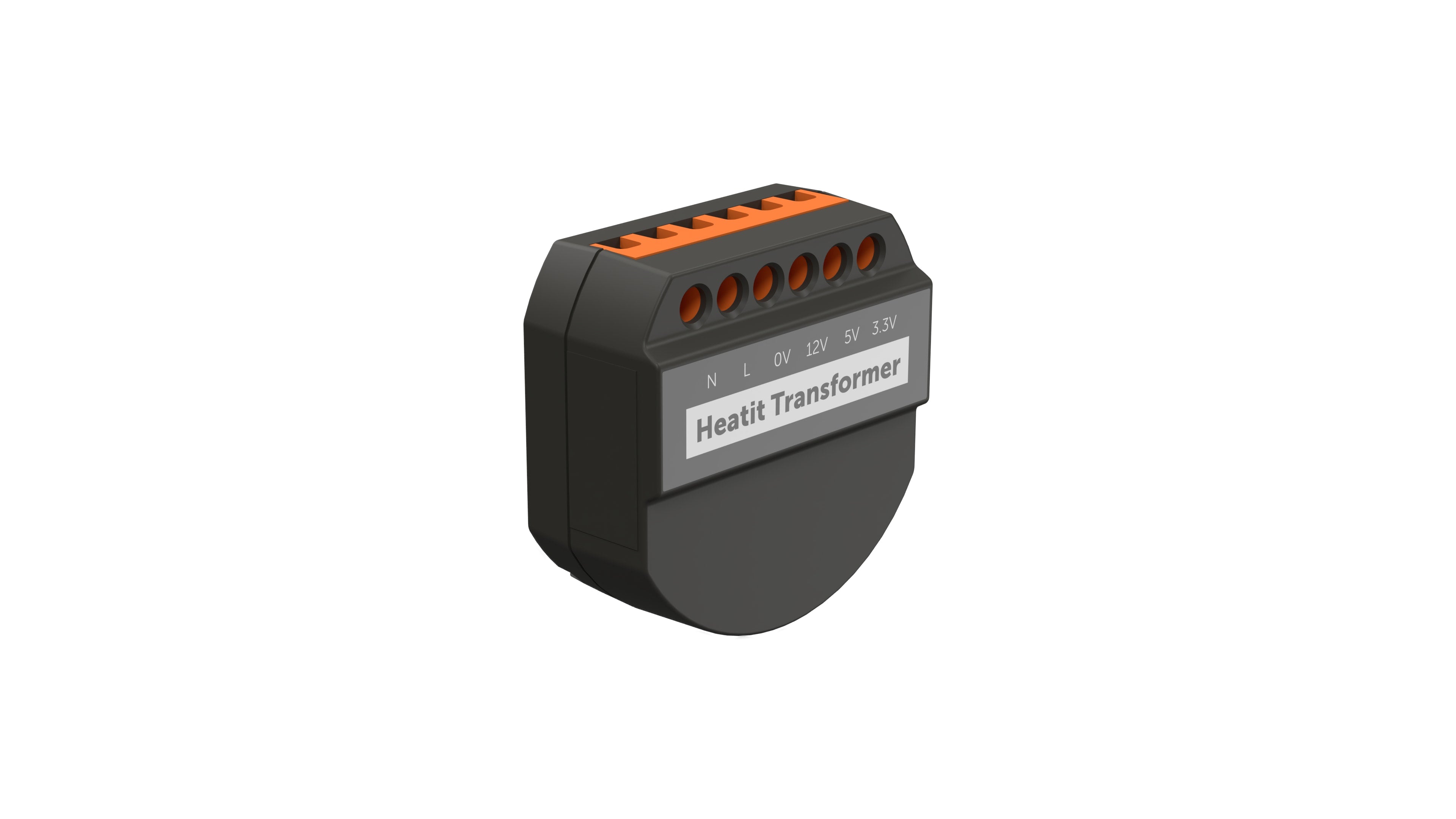

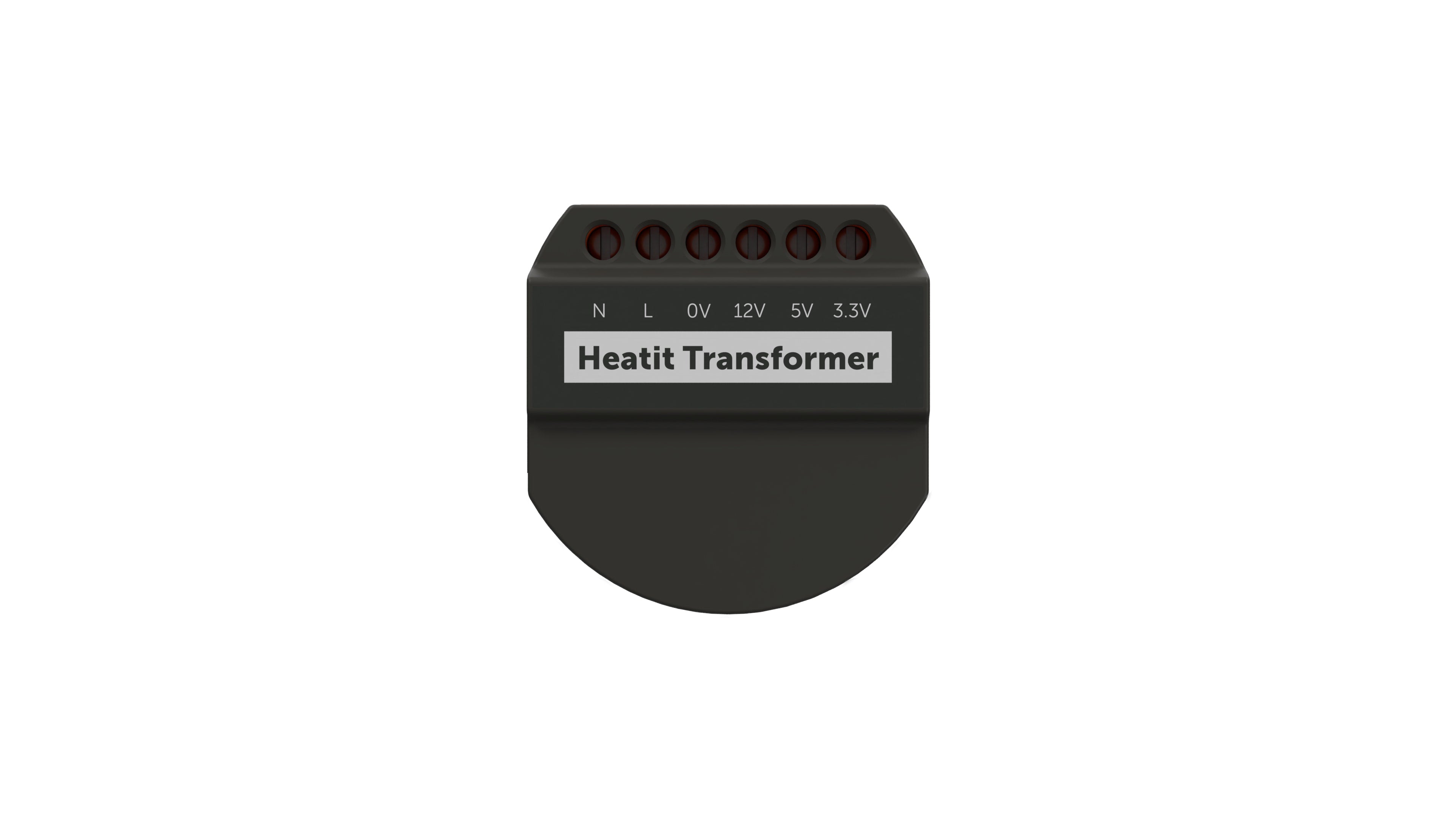

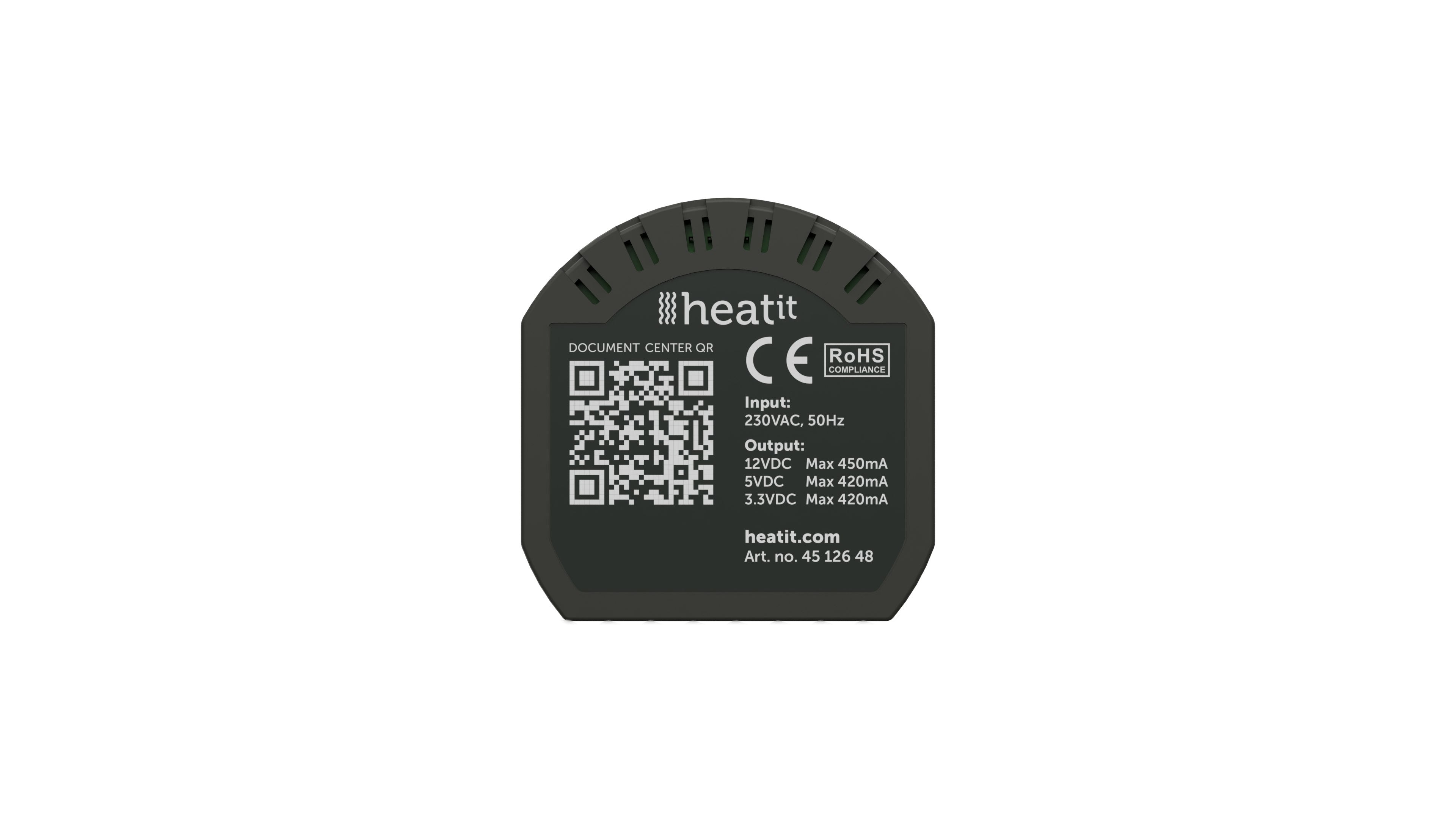

Heatit Transformer 230VAC to 12VDC, 5VDC & 3.3VDC

Heatit Transformer is an in-wall transformer that fits inside >35mm deep electrical back boxes. It enables the user to connect low voltage devices to mains power and change the voltage from 230VAC to either 12VDC, 5VDC or 3.3VDC.

Paired with Heatit battery adapters, Heatit Transformer can make your battery-powered devices run on mains power. Any battery-powered devices with a power draw of up to 450mA at 12VDC or 420mA at 5VDC and 3.3VDC can be connected to the transformer.

Features

• Adjust voltage from 230VAC to 12VDC, 5VDC or 3.3VDC

• Compact size - fits easily in European electrical wall box

• Easy to install


Technical

• Voltage:230VAC, 230V 50Hz, 230VAC 50Hz

• Max current (Ampere):0.45

• Own power usage (watt):1

• Protection grade (IP):IP20

• Ambient humidity (RH non-condensing %):10-85

• Ambient temperature range in storage (°C):-30-70

• Declarations:CE, CE declaration

• Depth in mounting box (mm):19

• Max connection dimension (mm²):2,5mm²

• Assembly / mounting location:European Junction Box

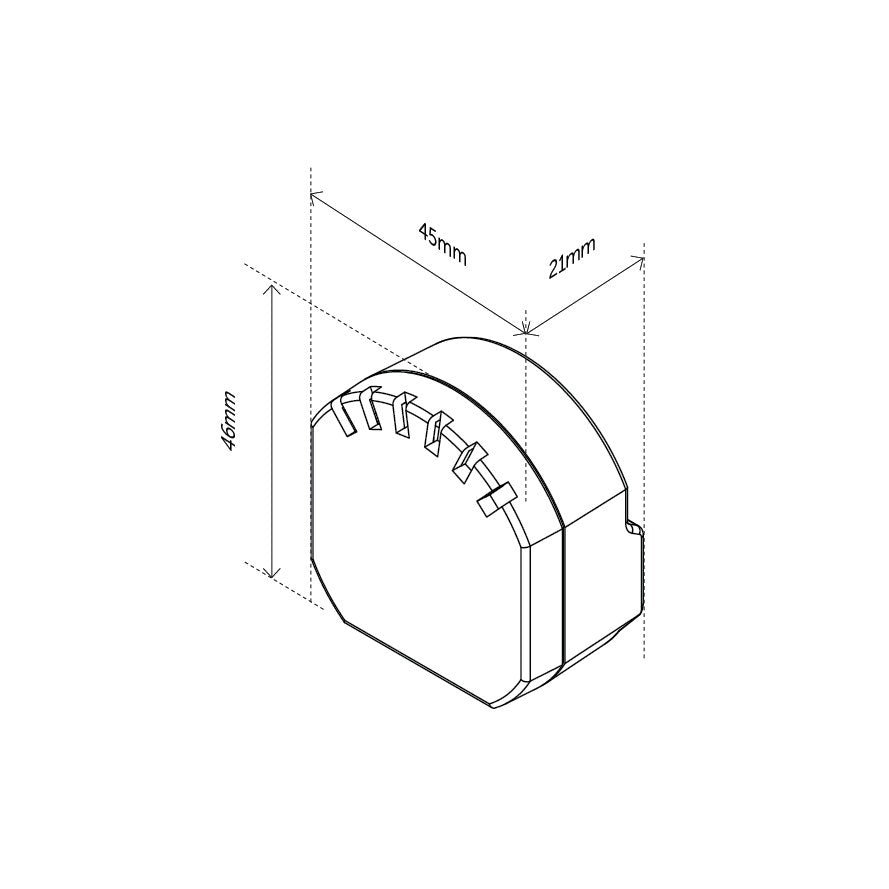

• Product height (mm):19

• Product length (mm):45

• Product weight (gram):40

• Product width (mm):46


Manuals

Heatit Transformer 230VAC Manual
