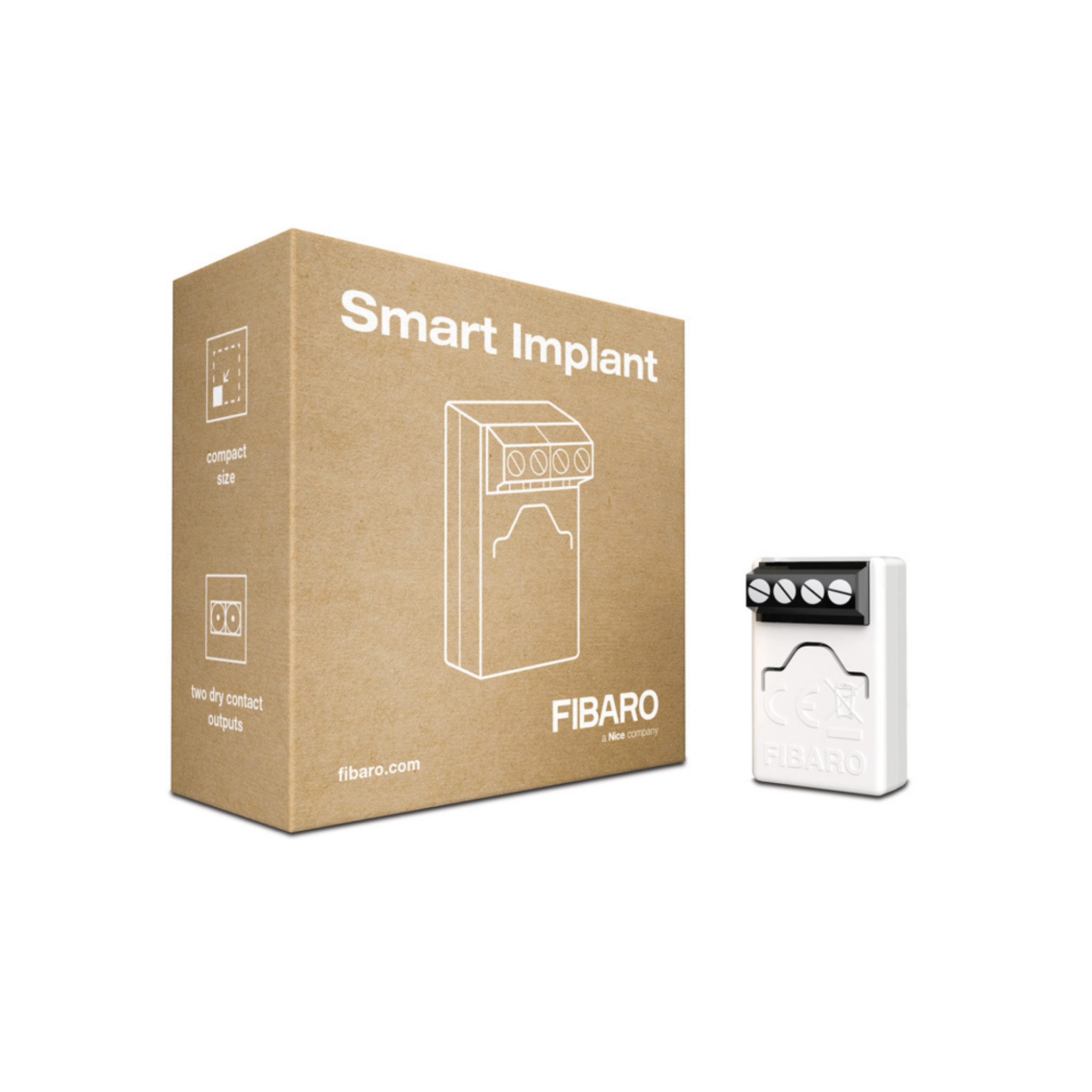

FIBARO Smart Implant allows to enhance the functionality of wired sensors and other devices by adding Z-Wave network communication.
You can connect binary sensors, analog sensors, DS18B20 temperature sensors or DHT22 humidity and temperature sensor to report their readings to the Z-Wave controller.

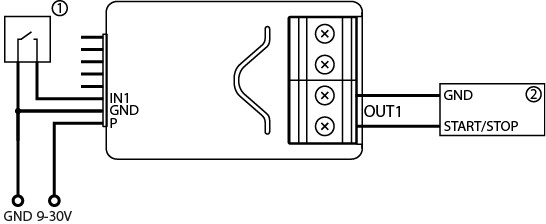

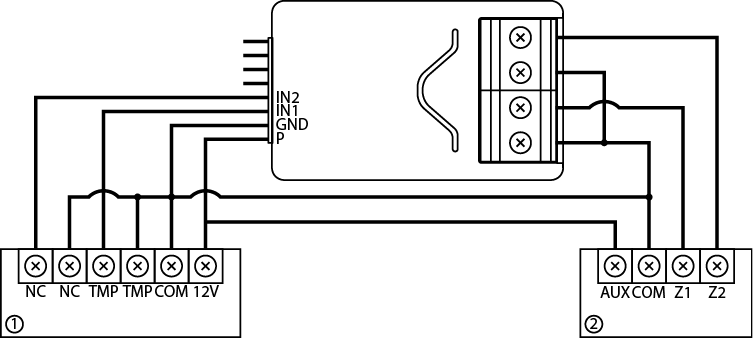

It can also control devices by opening/closing output contacts independently of the inputs.
- Compatible with any certified Z-Wave or Z-Wave Plus controller.
- Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption.
- Works as a Z-Wave signal repeater.
Allows for connecting sensors:

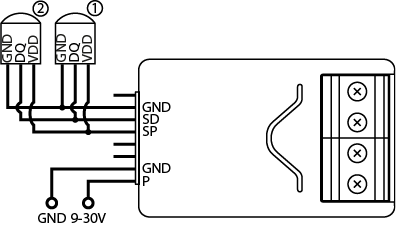

- 6 DS18B20 sensors,

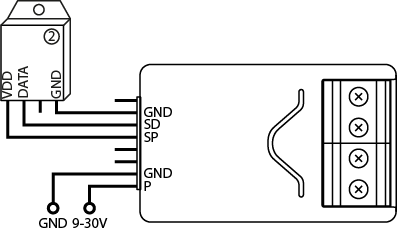

- 1 DHT sensor,

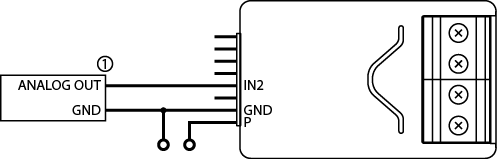

- 2 2-wire analog sensor,
- 2 3-wire analog sensor,

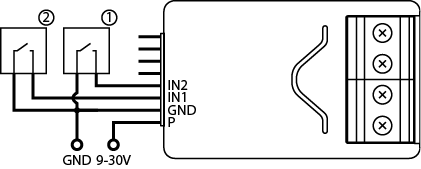

- 2 binary sensors.
- Built-in temperature sensor.

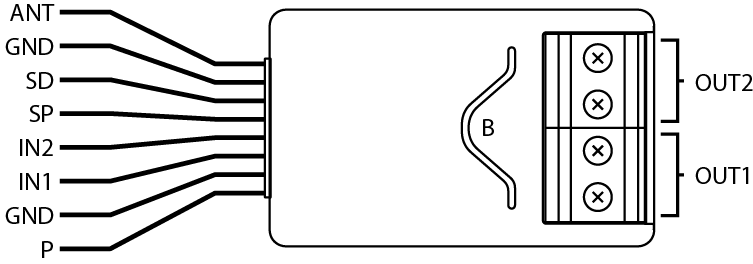

|Power supply||9-30V DC ±10%|
2 0-10V or digital inputs
1 serial 1-wire input
|Outputs||2 potential-free outputs|
|Supported digital sensors||6 DS18B20 or 1 DHT22|
|Maximum current on outputs||150mA|
|Maximum voltage on outputs||30V DC / 20V AC ±5%|
|Built-in temperature sensor measurement range||
|Operating temperature||0–40°C (32–104°F)|
|Radio protocol||Z-Wave (500 series chip)|
868.4 or 869.8 MHz EU;
908.4, 908.42 or 916.0 MHz US;
921.4 or 919.8 MHz ANZ;
869.0 MHz RU;
|Radio ransmit power||max. 7 dBm (EIRP)|
up to 50m (164 ft) outdoors
up to 40m (131 ft) indoors
(depending on terrain and building structure)
(Length x Width x Height)
29 x 18 x 13 mm
(1.14” x 0.71” x 0.51”)
|Compliance with EU directives||
Click here for the FIBARO Smart Implant Manual
