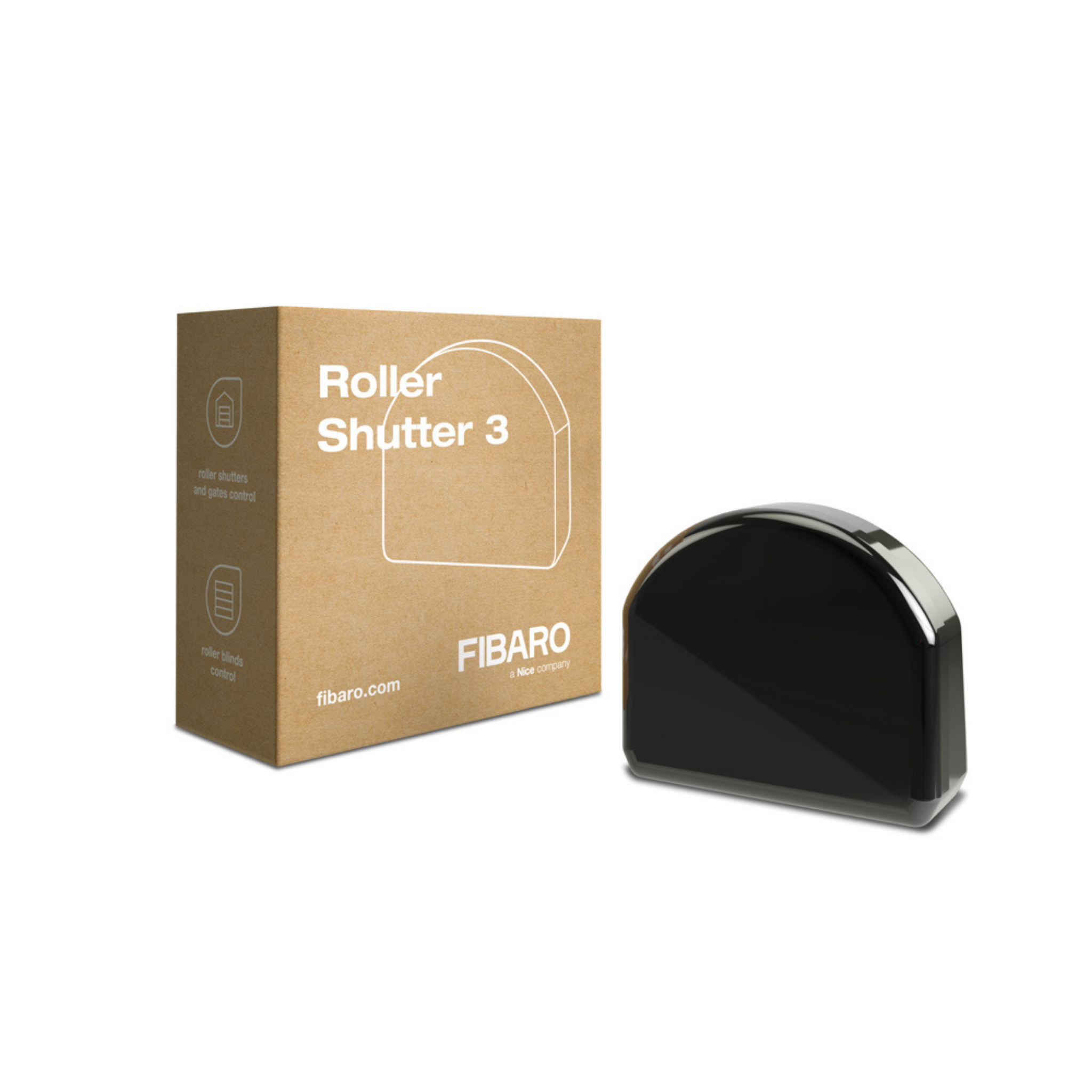

FIBARO Roller Shutter 3 - Blind, Curtain & Gate Controller
Quantity:
Pickup available at Whitehills
Usually ready in 4 hours
FIBARO Roller Shutter 3 - Blind, Curtain & Gate Controller
Whitehills
Pickup available, usually ready in 4 hours
6 Thompson Road
Whitehills Business Park
Blackpool FY4 5QF
United Kingdom
FIBARO Roller Shutter 3 is a device designed to control roller blinds, awnings, venetian blinds, gates and other single phase, AC powered devices.
Roller Shutter 3 allows precise positioning of roller blinds or venetian blind lamellas. The device is equipped with power and energy monitoring. It allows to control connected devices either via the Z-Wave network or via a switch connected directly to it.
Features
- Compatible with any Z-Wave or Z-Wave+ Controller,
- Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption,
- To be installed with roller blind motors with electronic or mechanical limit switches,
- Advanced microprocessor control,
- Active power and energy metering functionality,
- Works with various types of switches – momentary, toggle and dedicated roller blind switches,
- To be installed in wall switch boxes.
Specifications
| Power supply: | 100-240V~ 50/60 Hz |
| Rated load current: |
4.2A for lamps and resistive loads 1.7A for motors with compensated power factor (inductive loads) |
| Supported motor type: | single-phase AC motors |
| Required limit switches: | electronic and mechanic |
| Power consumption: | up to 0.8W |
| Operating temperature: | 0-35°C |
| Active element: | micro-gap relay switch μ |
| For installation in boxes: | Ø ≥ 50mm, depth ≥ 60mm |
| Radio protocol: | Z-Wave (500 series chip) |
| Radio signal power: | EIRP up to 6dBm |
| Radio frequency: |
868.4 or 869.8 Mhz EU 908.4 or 916.0 Mhz US 921.4 or 919.8 Mhz ANZ 869.0 Mhz RU |
| Range: |
up to 50 m outdoors up to 30 m indoors (depending on building materials) |
| Dimensions: (L x W x H): | 42.50 x 38.25 x 20.30 mm |
| Compliance with EU directives: |
RoHS 2011/65/EU RED 2014/53/EU |
Manuals
FIBARO Roller Shutter 3 Manual
