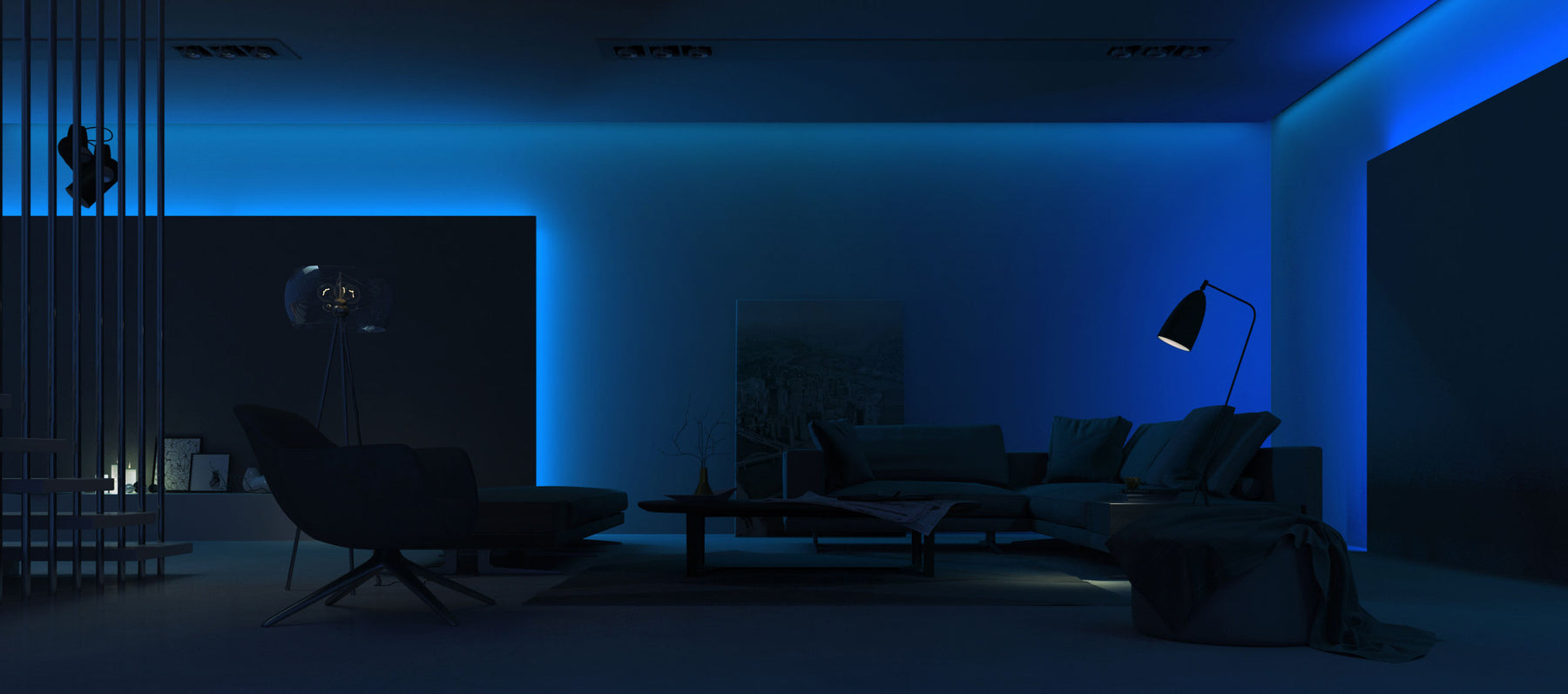

FIBARO RGBW Smart Home Lighting Controller blue light
FIBARO RGBW Smart Home Lighting Controller red light

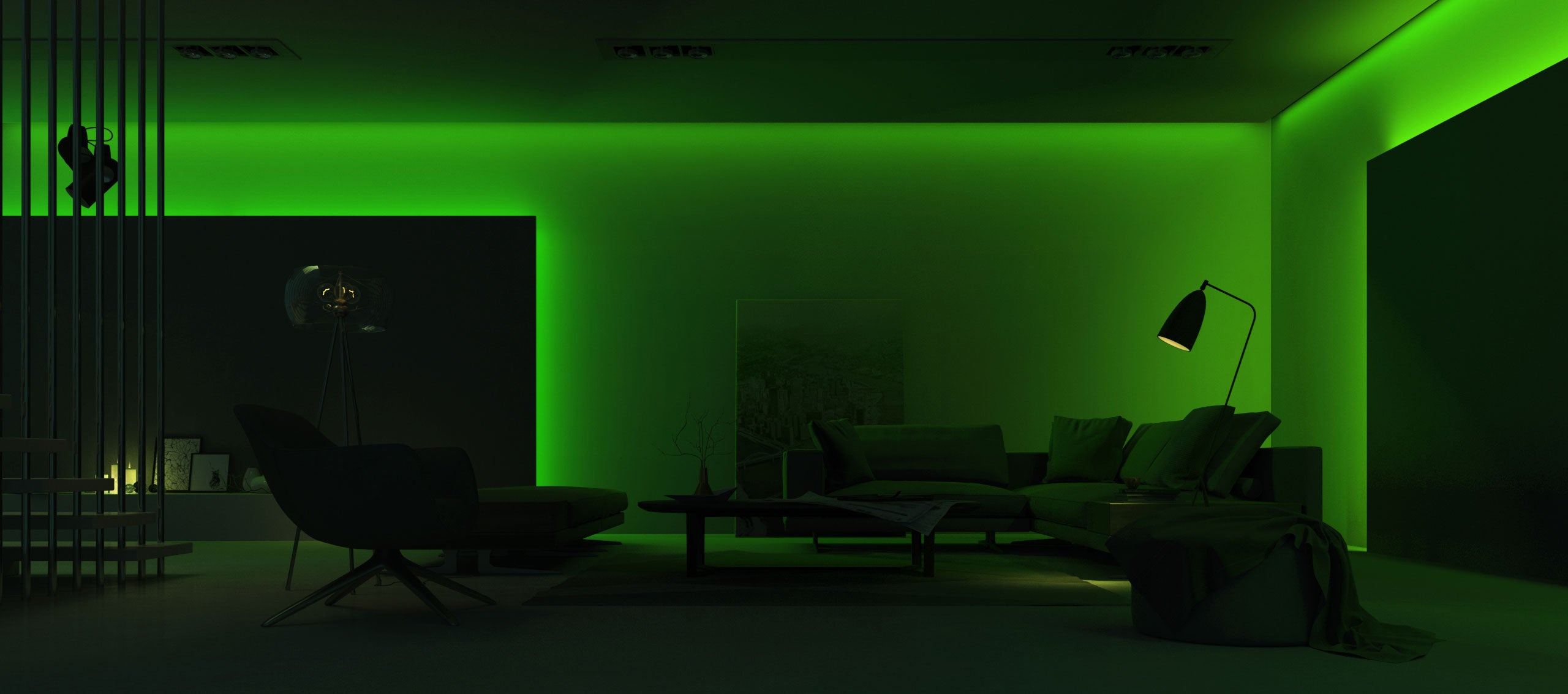

FIBARO RGBW Smart Home Lighting Controller green light
FIBARO RGBW Smart Home Lighting Controller dark green light

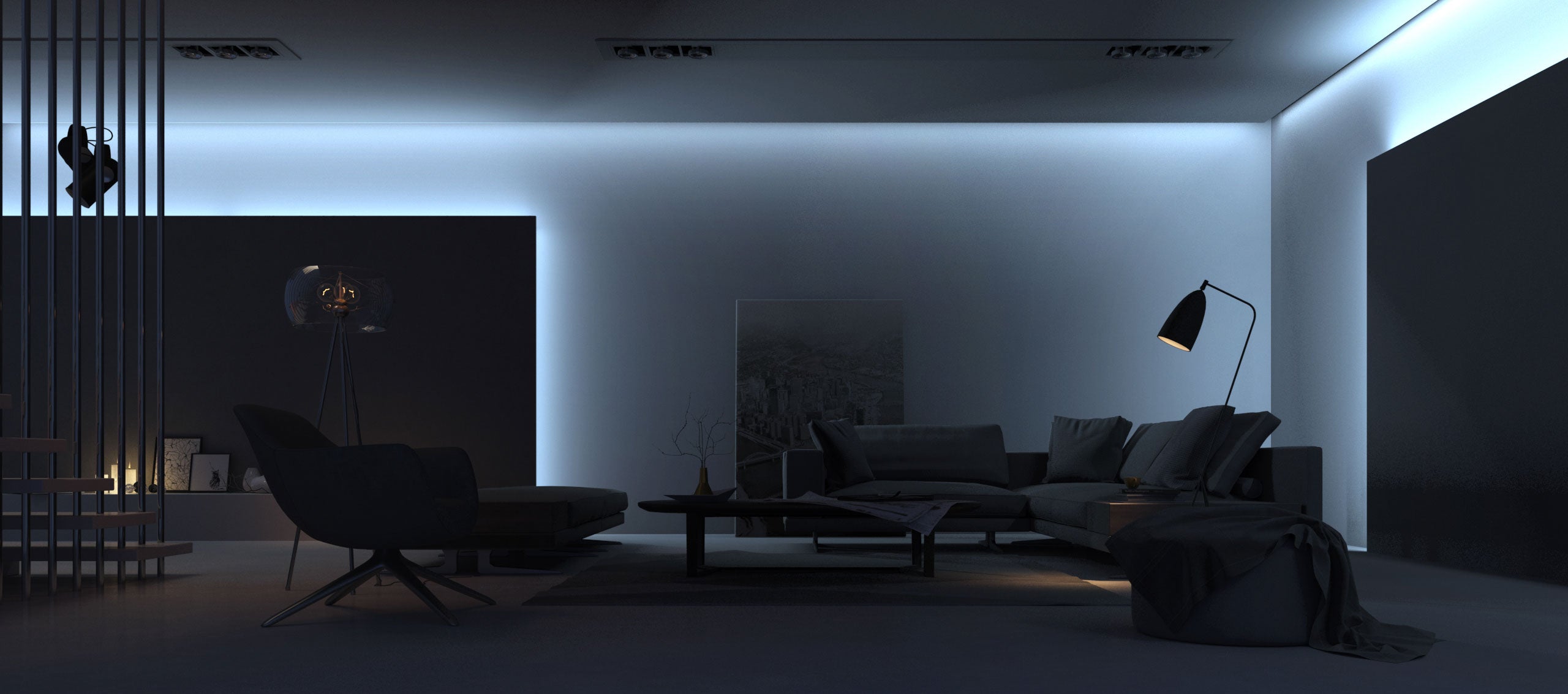

FIBARO RGBW Smart Home Lighting Controller white light

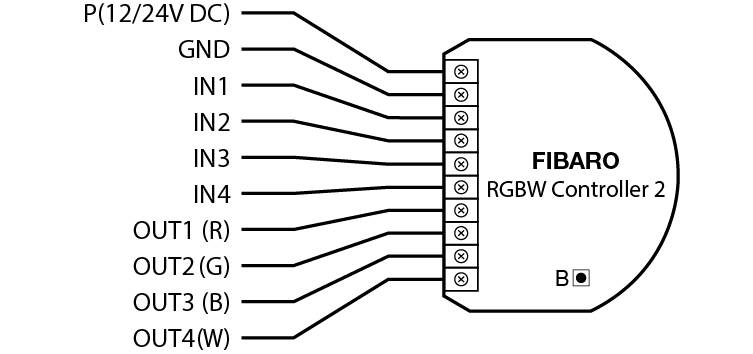

FIBARO RGBW Smart Home Lighting Controller installation design

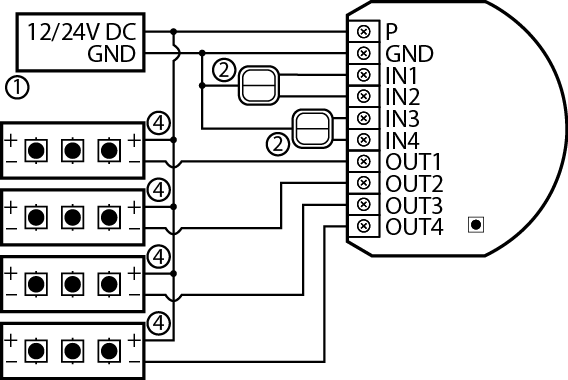

FIBARO RGBW Smart Home Lighting Controller installation design 2

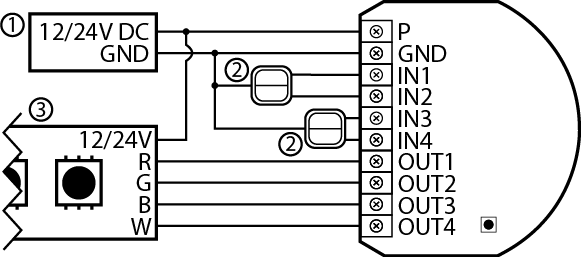

FIBARO RGBW Smart Home Lighting Controller installation design 3
FIBARO RGBW Controller 2 - 4 Channel Lighting Controller
  • Load image into Gallery viewer, FIBARO RGBW Controller 2 - 4 Channel Lighting Controller

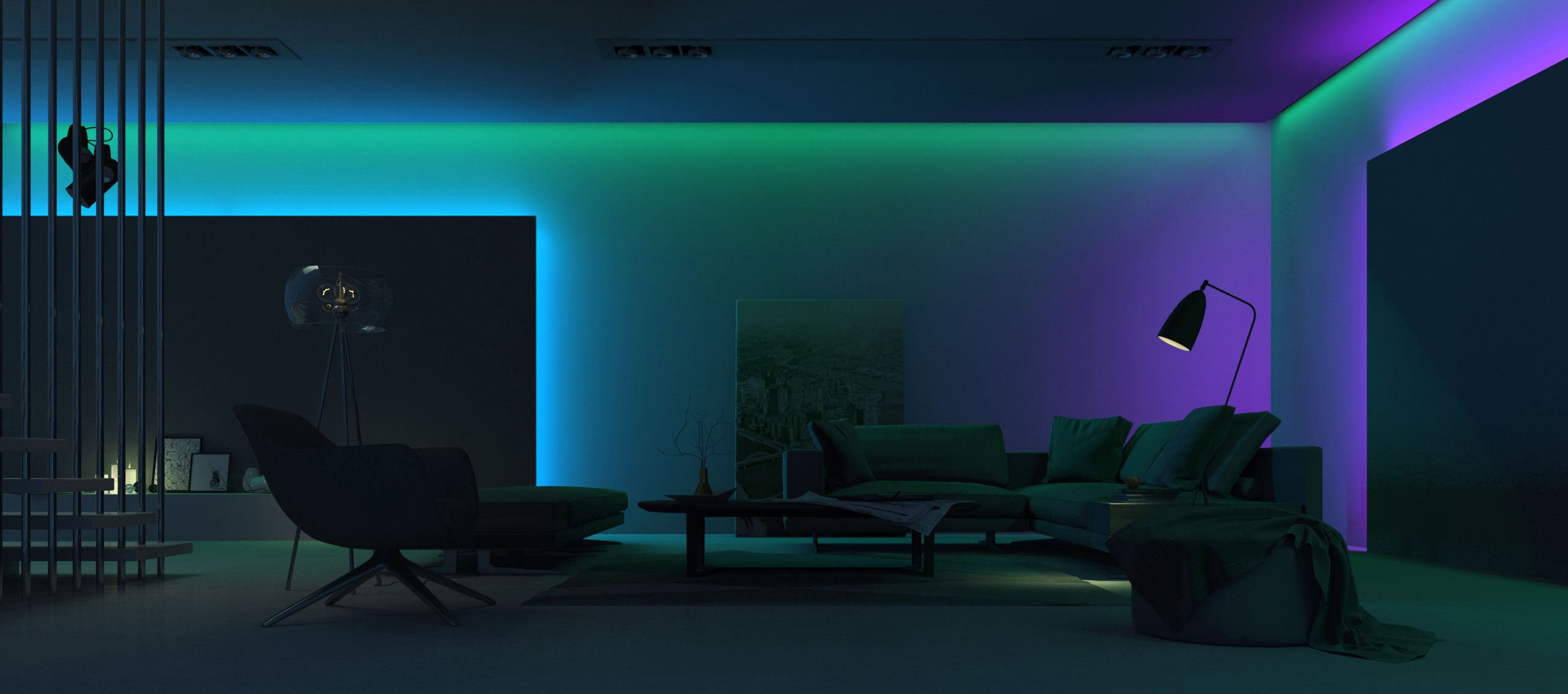

  • Load image into Gallery viewer, FIBARO RGBW Smart Home Lighting Controller colour range
  • Load image into Gallery viewer, FIBARO RGBW Smart Home Lighting Controller lighting scale

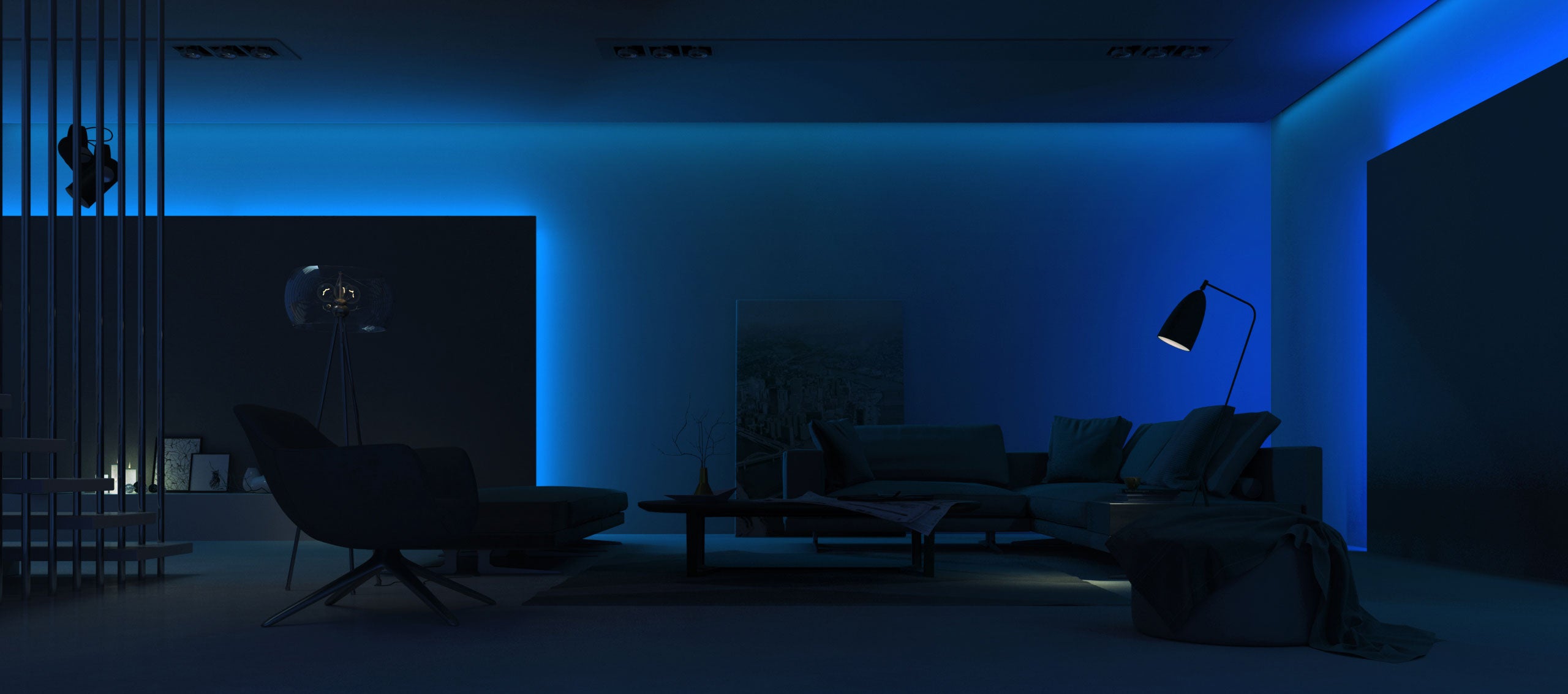

  • Load image into Gallery viewer, FIBARO RGBW Smart Home Lighting Controller blue light
  • Load image into Gallery viewer, FIBARO RGBW Smart Home Lighting Controller red light
  • Load image into Gallery viewer, FIBARO RGBW Smart Home Lighting Controller green light
  • Load image into Gallery viewer, FIBARO RGBW Smart Home Lighting Controller dark green light
  • Load image into Gallery viewer, FIBARO RGBW Smart Home Lighting Controller white light
  • Load image into Gallery viewer, FIBARO RGBW Smart Home Lighting Controller installation design
  • Load image into Gallery viewer, FIBARO RGBW Smart Home Lighting Controller installation design 2
  • Load image into Gallery viewer, FIBARO RGBW Smart Home Lighting Controller installation design 3
  • Load image into Gallery viewer, FIBARO RGBW Controller 2 - 4 Channel Lighting Controller

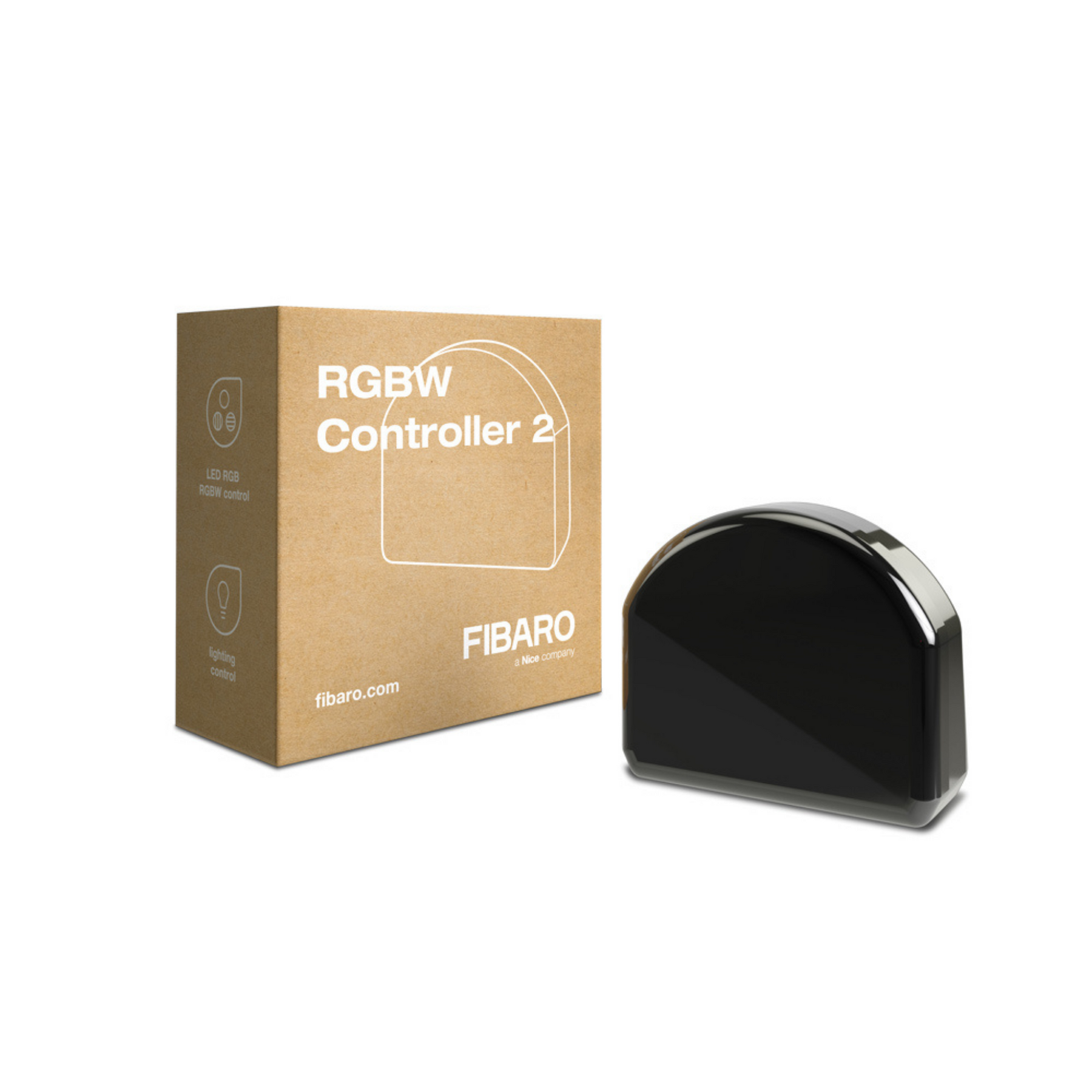

FIBARO RGBW Controller 2 - 4 Channel Lighting Controller

Vendor
FIBARO
Regular price
£49.99
Sale price
£49.99
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

FIBARO RGBW Controller is a universal, Z-Wave compatible RGB/RGBW controller. FIBARO RGBW Controller uses PWM output signal, which enables it to control LED, RGB, RGBW strips, halogen lights and fans. Controlled devices may be powered by 12 or 24 VDC. In addition the device supports up to four, 0V – 10V analog sensors, such as temperature sensors, humidity sensors, wind sensors, air quality sensors, light sensors etc. All IN and OUT terminals may be user configured for LED control or 0V-10V signal readouts

The Fibaro RGBW Controller 2 4 channel lighting controller that is perfectly designed to control our RGBW LED strip lights enabling you to create almost any colour of light.

While most multi colour LED strip lights are just RGB (red, green & blue) this controller also handles a fourth channel which enables it to work perfectly with LED strip lights that also have a white LEDs.

Now you can have and control both white and coloured lighting all from a single device and single LED strip light.

When controlled through the Fibaro system, almost any colour can be created with the controller and LED Strip, so you can create awesome scenes for scenarios like parties, relaxation or even warnings like intrusion, leaks or fire.

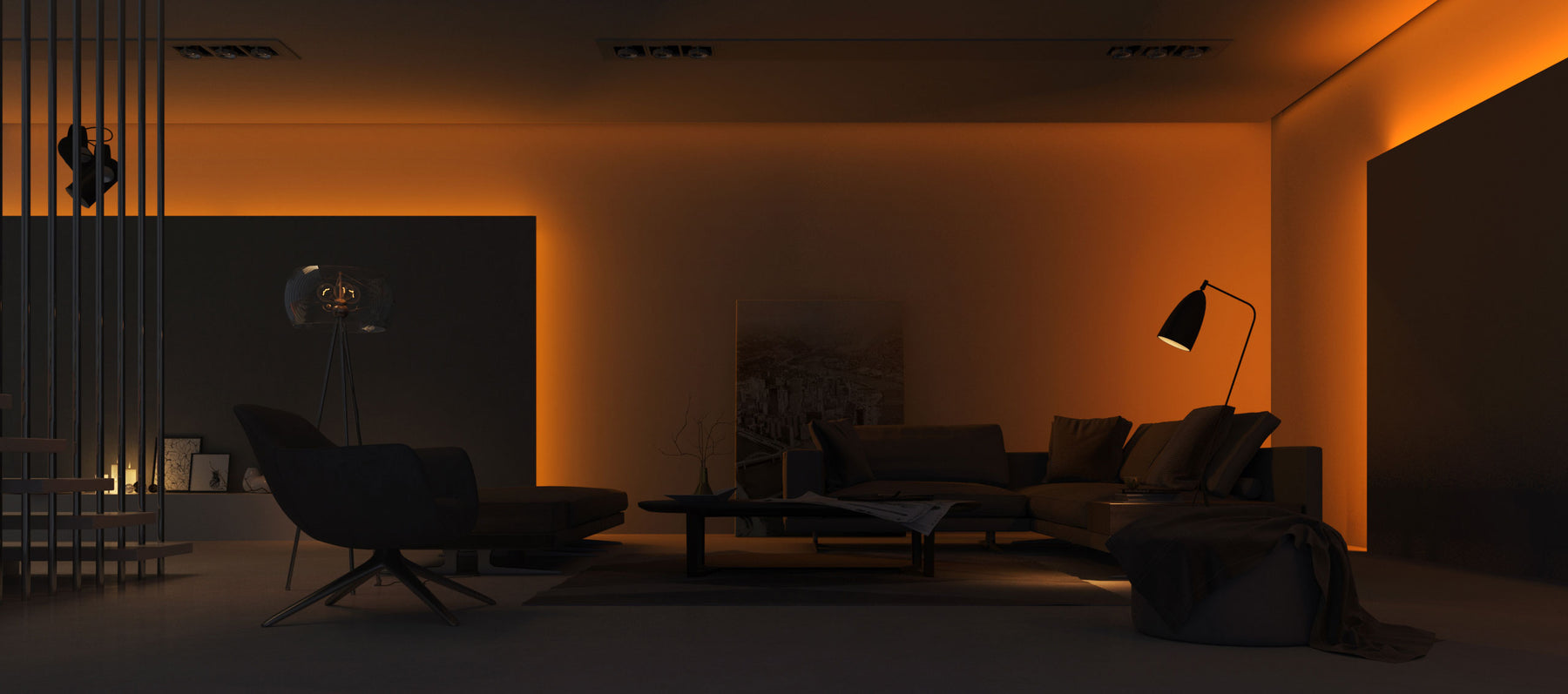

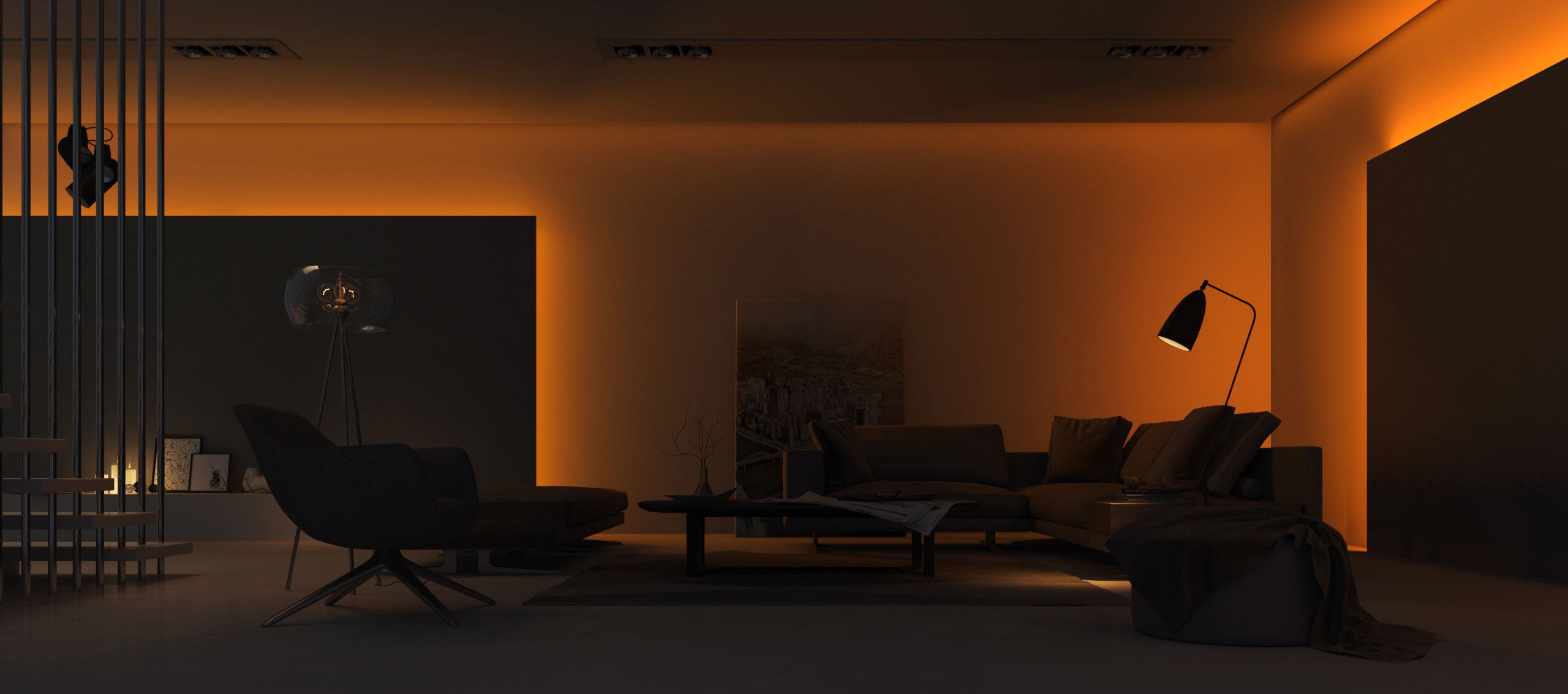

Imagine a room being washed in blue light is a water leak is detected somewhere or red if a possible intrusion has occurred. Better still, you could create relaxing warm colours like golden sunsets if you're wanting to relax. All of this can be automated based on many different triggers, like activation of a sensor, time of day, etc.

  • Compatible with any Z-Wave Controller
  • Advanced microprocessor control
  • Different operating modes
  • Active power and energy metering functionality
  • Multiple colour presets
  • Active element: transistor
  • To be installed in standard wall switch boxes

Supported loads

FIBARO RGBW Controller may control:

  • 12 / 24VDC powered RGB strips
  • 12 / 24VDC powered RGBW strips
  • 12 / 24VDC powered LED strips, bulbs, etc.
  • 12 / 24VDC powered halogen lights
  • 12 / 24VDC powered low output power fans

 Additional features:

  • 0-10V sensors signal readouts
  • 0-10V potentiometer signal readouts, and managing outputs accordingly
  • controlled by momentary or toggle switches


Technical data

Power supply: 12/24V DC
Rated output power: combined 12A (sum of all connected output channels)
6A for single output channel
PWM output frequency: 244Hz
Electricity consumption: 0.3W
Radio signal power: 1mW
For installation in boxes: Ø≥50 mm
Max load: at 12V – 144W combined
at 24V – 288W combined
EU directive compliance: RoHS 2011/65/EU
EMC 2004/108/EC
R&TTE 1999/5/EC
Radio protocol: Z-Wave
Radio frequency: 868.4 MHz EU
908.4 MHz US
921.4 MHz ANZ
869.0 MHz RU
Radio transmit power: up to -1 dBm (EIRP)
Range: up to 50m outdoors / up to 30m indoors
(depending on terrain and building structure)
Operational temperature: 0 – 40°C
Dimensions (L x W x H): 42 x 37 x 17 mm



Click this link for the FIBARO RGBW Controller 2 Manual
