Eutonomy euFIX R223 DIN Rail Enclosure for FIBARO Roller Shutter 3

Sale price£39.99

Tax included. Shipping calculated at checkout

SKU: EUFIXR223
Quantity:

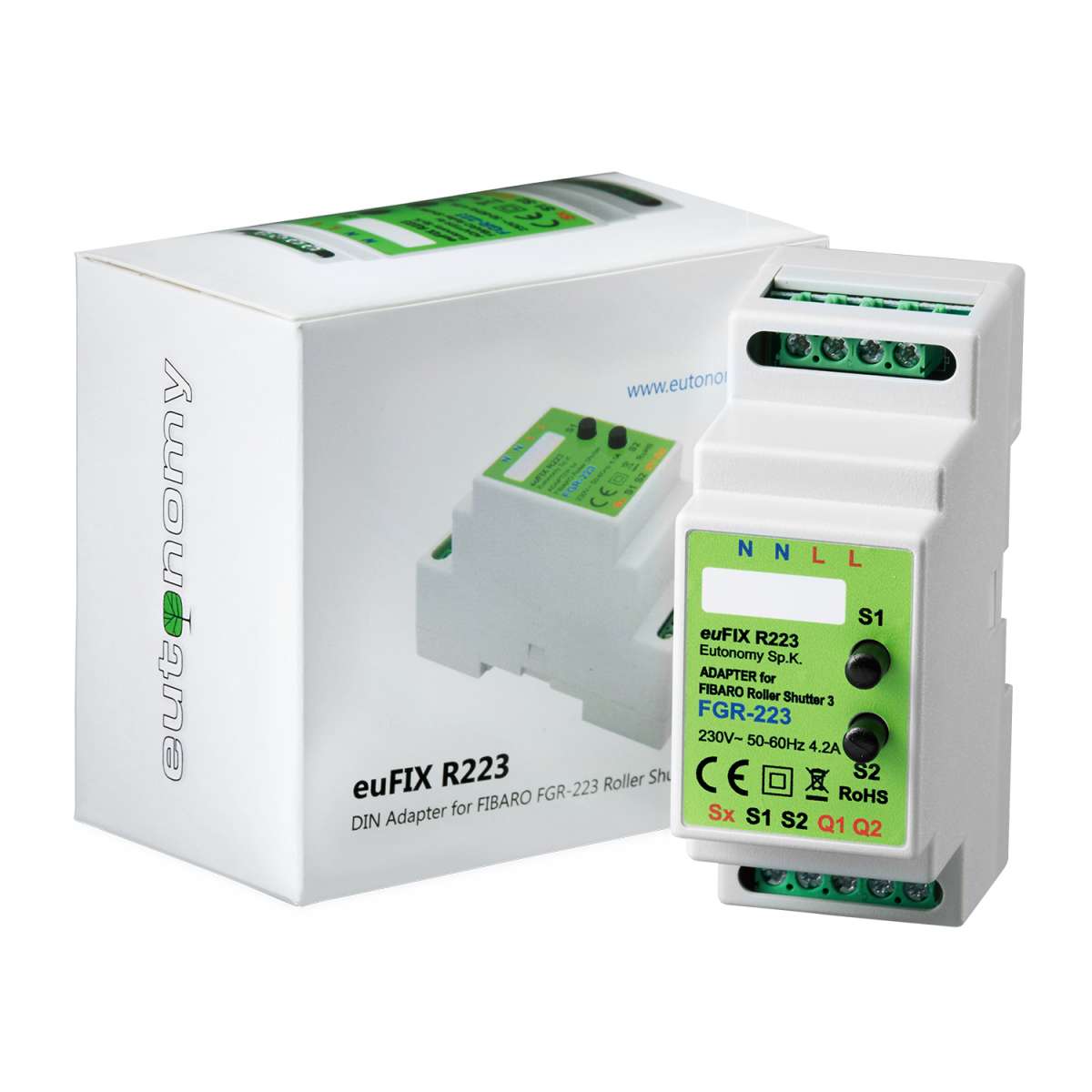

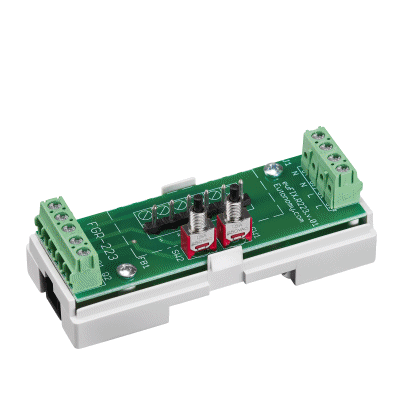

The euFIX R223 Adapter is used to install the Fibaro® Roller Shutter 3 FGR-223 module on DIN TH35 type rail in the electrical switchboard. The euFIX R223 Adapter consists of the case and the base board, where the FGR-223 module is mounted. The dimensions of the case are appropriate for a standard DIN TH35 type rail. The base board contains a set of screw terminals, where all the wires (power supply, input and output signals, control push-buttons) can be safely connected. The front panel of the case contains two diagnostics micro-push-buttons S1 & S2, which can be used to control the module, to reg-ister the module within the Z-Wave system or to remove it from the system without opening the adapter's case.

Please note that the Fibaro® FGR-223 module is not included and needs to be purchased separately.

Technical
  • Supply voltage: 230V AC +/-10%, 50–60Hz
  • Load power: max 4.2 A
  • Dimensions: 34.8 x 87.3 x 64.7 mm
  • Width in TE units: 2 TE modules conductor wires cross
    section:
    • max. 2.5 mm2
    • Maximum length of wires connected to Sx, S1, S2 inputs:
      10 m (construction limit of the Fibaro module)
  • Operating temperature: 0 °C to +35 °C
  • Relative humidity: ≤90 %, no condensation



Manual

Click here for Eutonomy euFIX DIN Rail Enclosure for FIBARO Roller Shutter 3 manual
