Eutonomy euFIX S224 DIN Rail Enclosure for FIBARO Double Smart Module
Eutonomy euFIX S224 DIN Rail Enclosure for FIBARO Double Smart Module
Whitehills
15 Olympic Court
Blackpool FY4 5GU
United Kingdom
Choose options

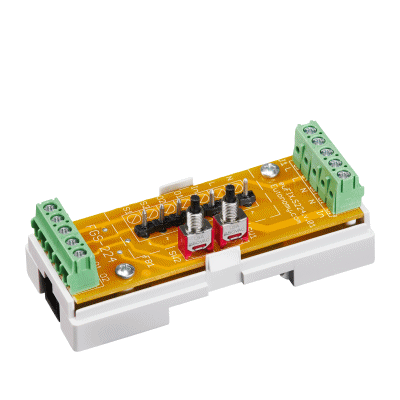

The euFIX S224 Adapter is used to install the FIBARO® Switch FGS-224 module on DIN TH35 type rail in the elec- trical switchboard. The euFIX S224 Adapter consists of the case and the base board, where the FGS-224 module is mounted. The dimensions of the case are appropriate for a standard DIN TH35 type rail. The base board con- tains a set of screw terminals, where all the wires (power supply, input and output signals, control push-buttons) can be safely connected. The front panel of the case contains two diagnostics micro-push-buttons S1 & S2, which can be used to control the module, to register the module within the Z-Wave system or to remove it from the system without opening the adapter's case.
Please note that the FIBARO® FGS-224 module is not included and needs to be purchased separately.
Technical
- Supply voltage: 230V AC +/-10%, 50–60Hz
- Load power: max 6 A per channel, 9.5 A in total.
- Dimensions: 34.8 x 87.3 x 64.7 mm
- Width in TE units: 2 TE modules conductor wires cross
section:- max. 2.5 mm2
- Maximum length of wires connected to Sx, S1, S2 inputs:
10 m (construction limit of the Fibaro module)
- Operating temperature: 0 °C to +35 °C
- Relative humidity: ≤90 %, no condensation
Manual
Click here for Eutonomy euFIX DIN Rail Enclosure for FIBARO Double Smart Module manual
