Eutonomy euFIX S214 DIN Rail Enclosure for FIBARO Single Smart Module
Eutonomy euFIX S214 DIN Rail Enclosure for FIBARO Single Smart Module

Eutonomy

Eutonomy euFIX S214 DIN Rail Enclosure for FIBARO Single Smart Module

Sale price£39.99

Tax included. Shipping calculated at checkout

SKU: EUFIXS214
Quantity:

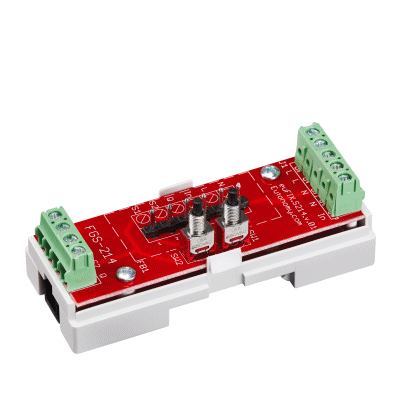

The euFIX S214 Adapter is used to install the FIBARO® Switch FGS-214 module on DIN TH35 type rail in the electrical switchboard. The euFIX S214 Adapter consists of the case and the base board, where the FGS-214 module is mounted. The dimensions of the case are appropriate for a standard DIN TH35 type rail. The base board contains a set of screw terminals, where all the wires (power supply, input and output signals, control push-buttons) can be safely connected. The front panel of the case contains two diagnostics micro-push-buttons S1 & S2, which can be used to control the module, to register the module within the Z-Wave system or to remove it from the system without opening the adapter's case.

Please note that the FIBARO® FGS-214 module is not included and needs to be purchased separately.


Technical
  • Supply voltage: 230V AC +/-10%, 50–60Hz
  • Load power: max 6.5 A (resistive load)
  • Dimensions: 34.8 x 87.3 x 64.7 mm
  • Width in TE units: 2 TE modules conductor wires cross
    section:
    • max. 2.5 mm2
    • Maximum length of wires connected to Sx, S1, S2 inputs:
      10 m (construction limit of the Fibaro module)
  • Operating temperature: 0 °C to +35 °C
  • Relative humidity: ≤90 %, no condensation



Manual

Click here for Eutonomy euFIX DIN Rail Enclosure for FIBARO Roller Shutter 3 manual
