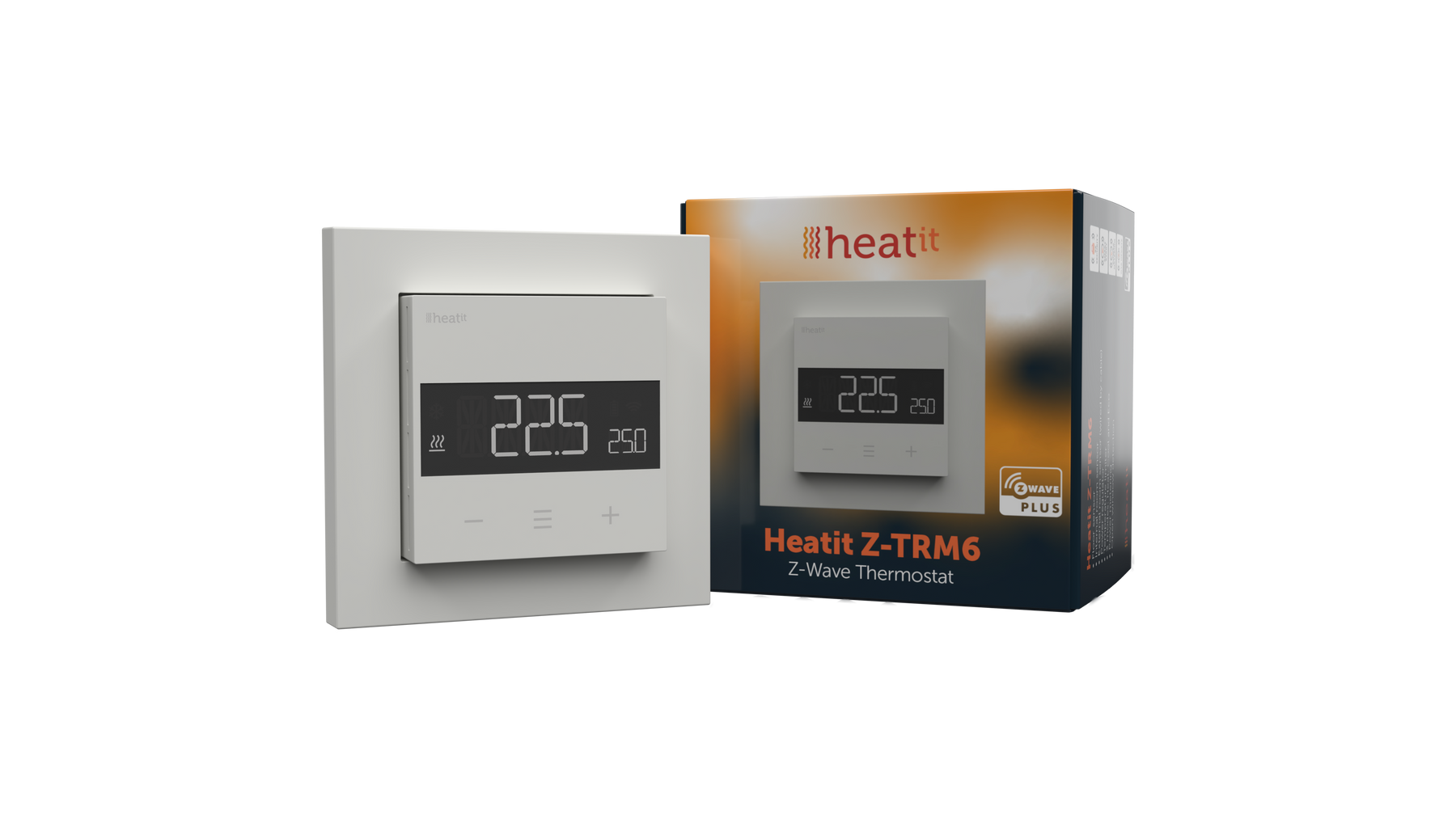

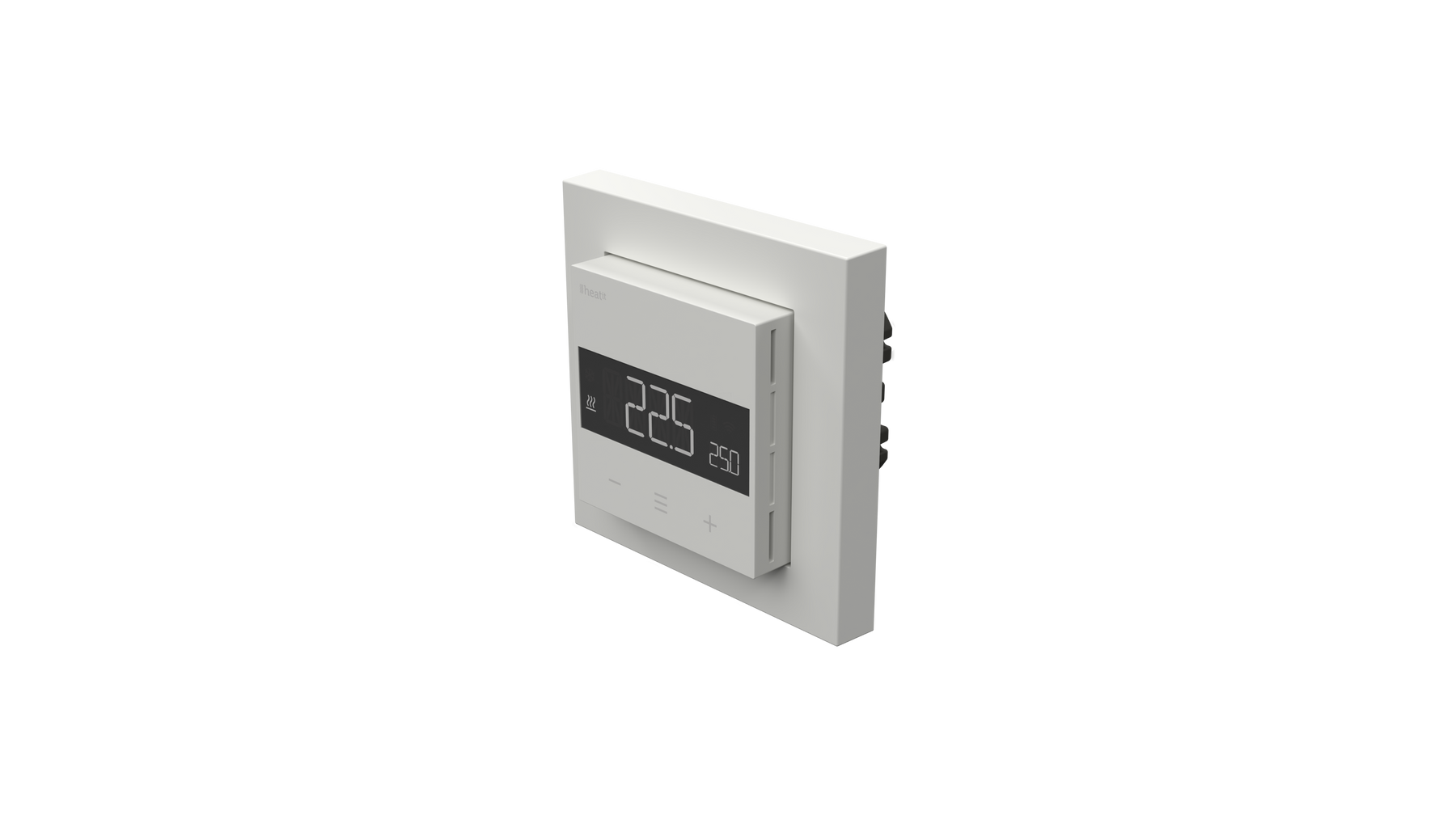

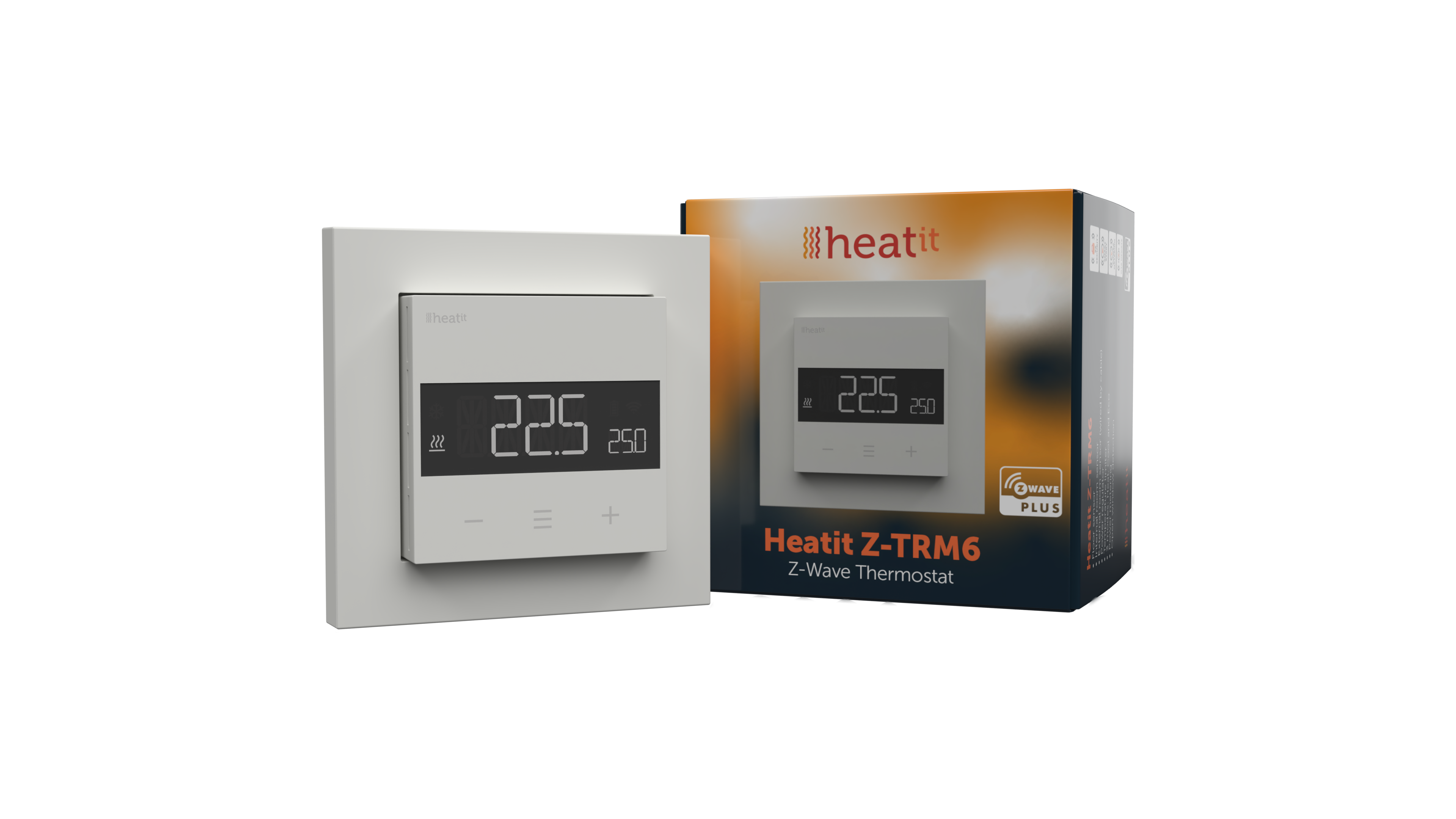

Heatit Z-TRM6 White Z-Wave Electric Heating Thermostat 3600W 16A

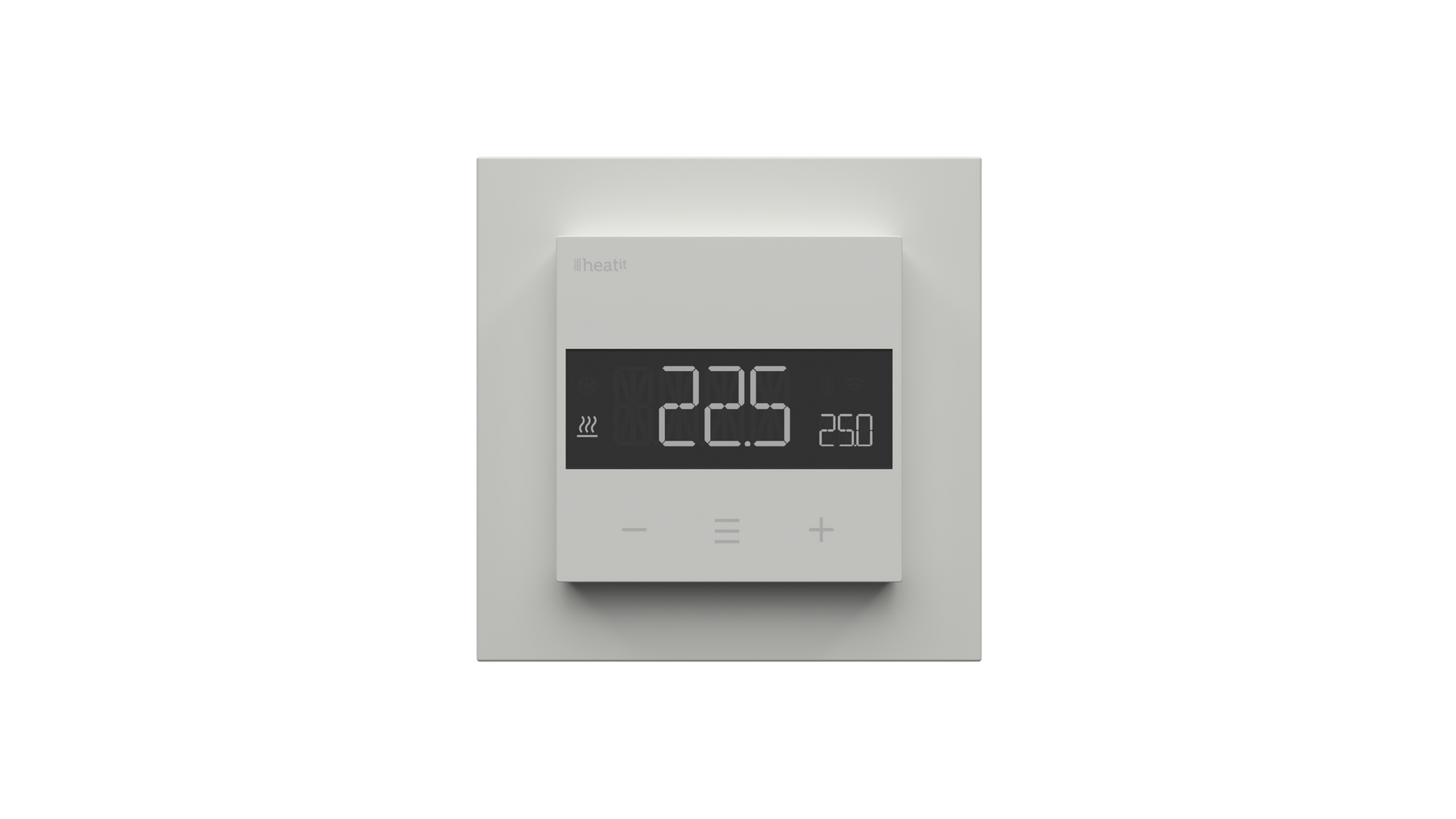

The new Heatit Z-TRM6 is an electronic thermostat designed for electrical heating, e.g. electric underfloor or wall heaters. The thermostat can be controlled through your Z-Wave network or via the buttons on the front. The thermostat has a user friendly interface.

Heatit Z-TRM6 has 3 modes; Heat - Cool and Eco.

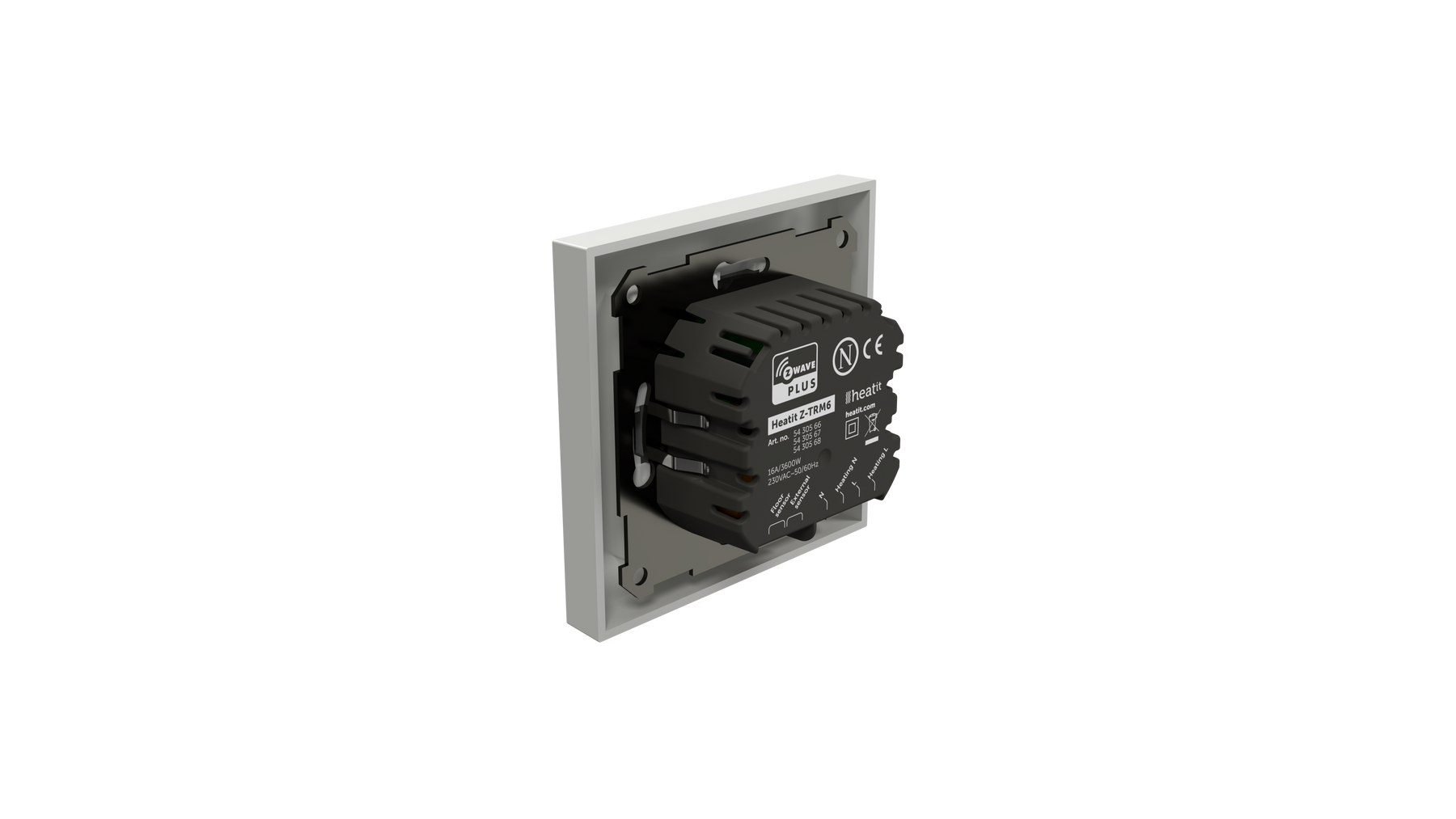

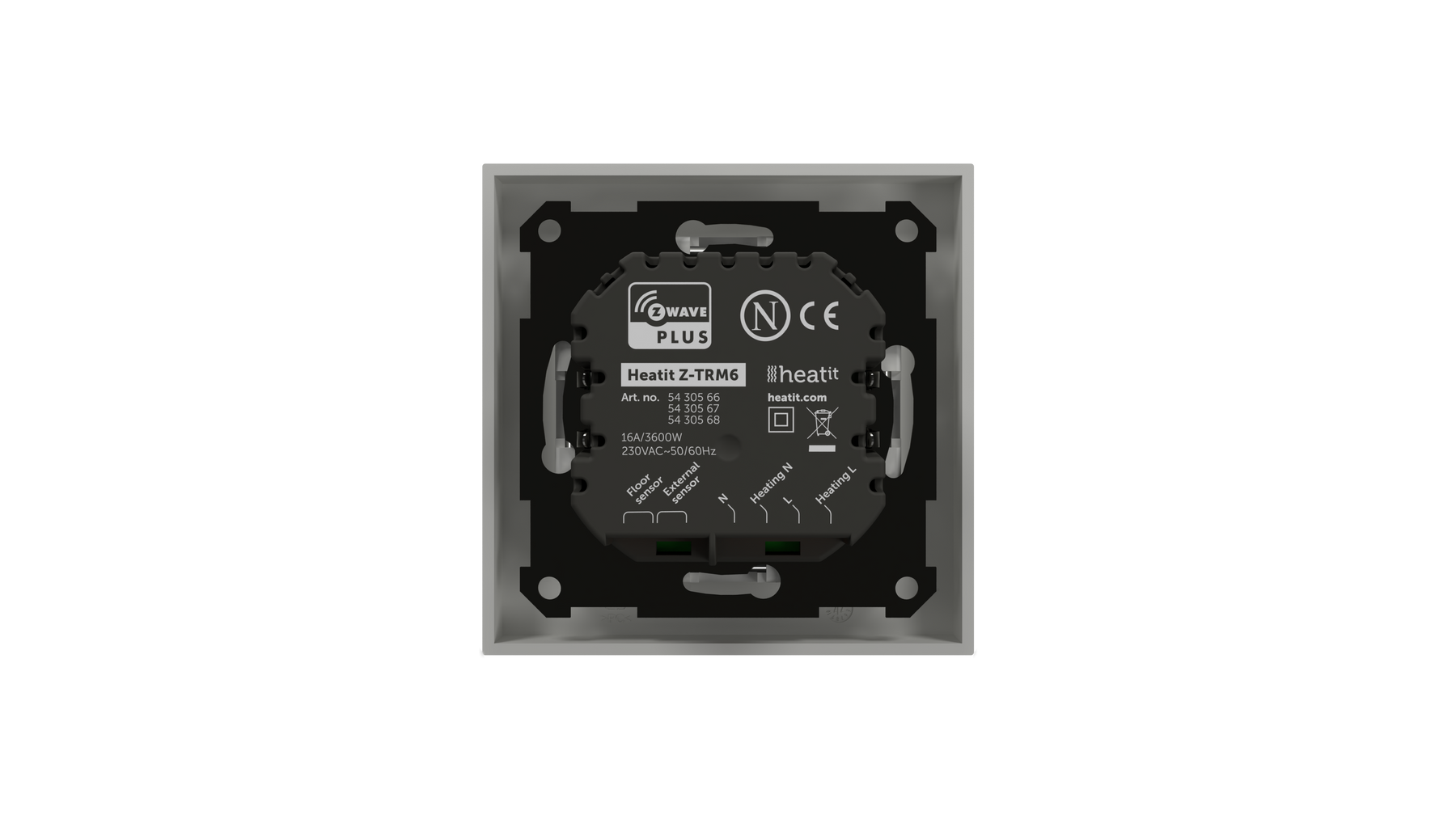

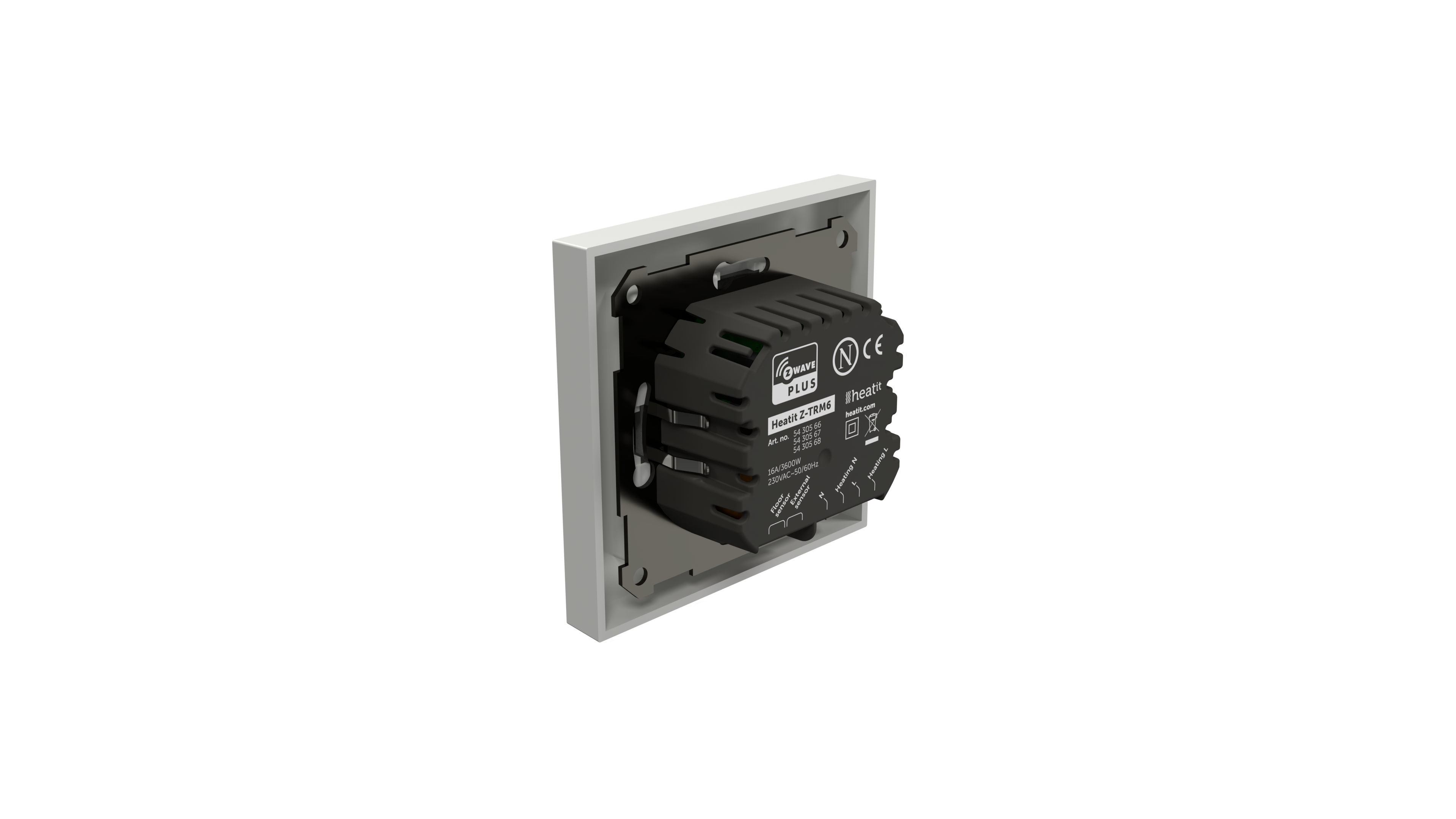

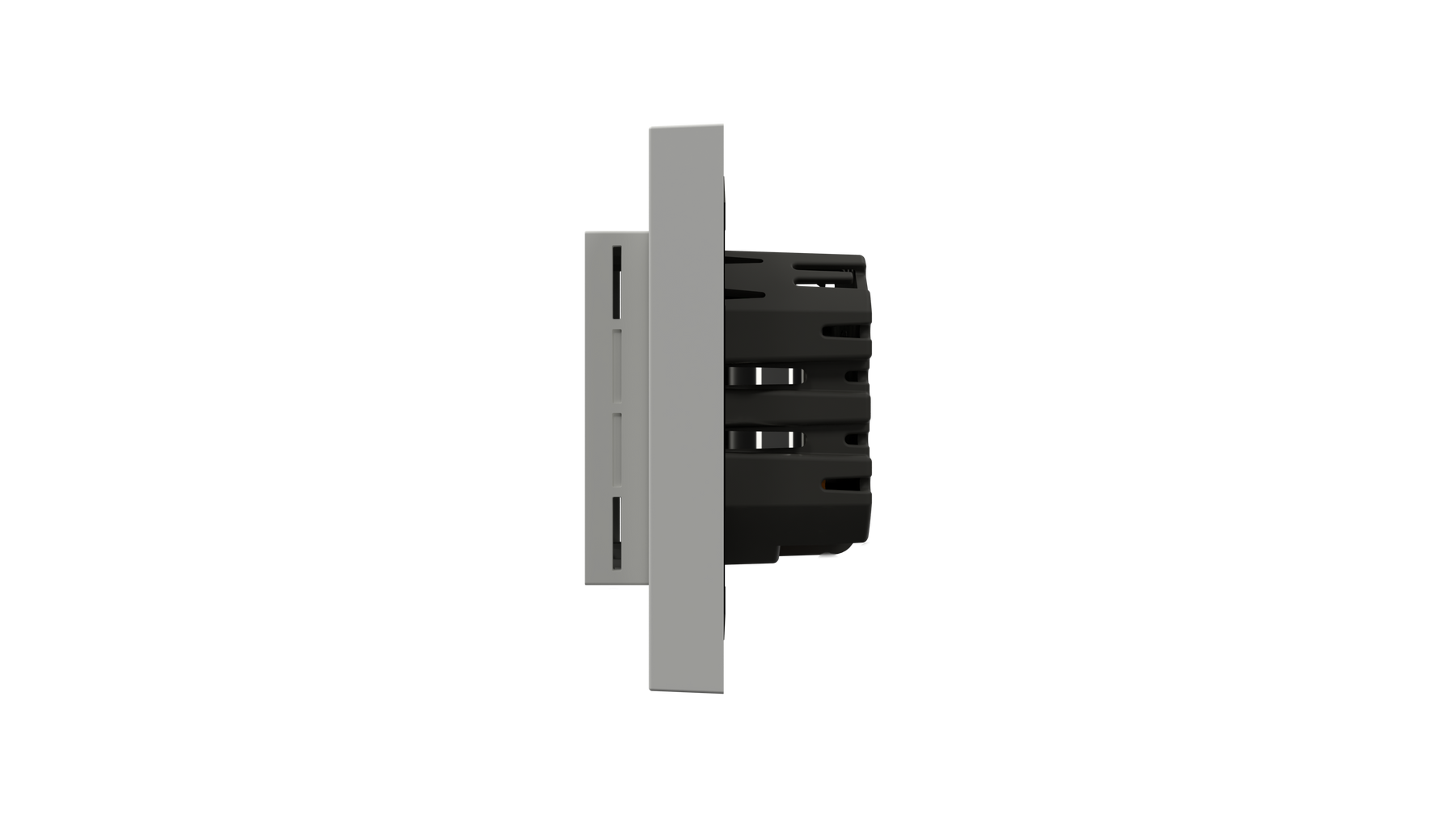

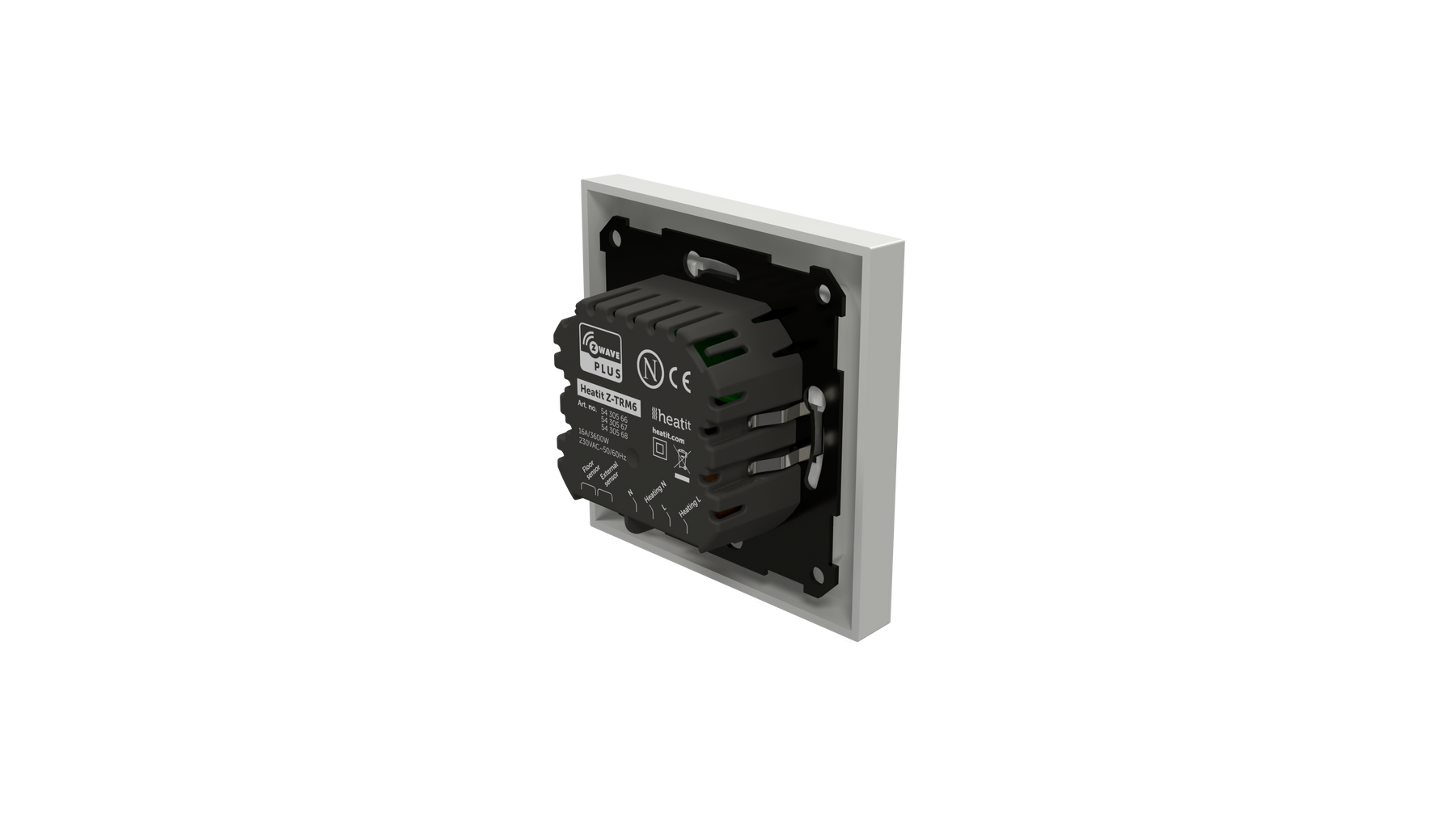

It has a sturdy metal frame for secure fastening on the junction box. The thermostat has one built-in room temperature sensor. Two additional external temperature sensors may also be connected.

Heatit Z-TRM6 has active power metering and it gives you real time information about your power consumption. It also allows you to set the power metering value manually in case of connection with a contactor.

The product has implemented ZeroX technology. This technology makes sure the relay switches at 0V when turning on and off. With this technology the thermostat will have a much longer lifetime.

The thermostat can be set up with multiple associations and can be used as a master thermostat. It can control up to 10 thermostats and 10 external relays E.g wall plugs.

Features

• Z-Wave thermostat

• Internal room sensor
• External room sensor (wired by cable)
• Floor sensor
• Power regulator
• Temperature limiter
• 3 modes: Heat, Cool and Eco
• SmartStart
• Temperature readout in gateway
• Weekly schedule in gateway
• Firmware update (OTA)
• Active power metering
• Hysteresis/PWM
• Relay status icon
• Adjustable display brightness
• Single pole switch
• Lock mode/child lock
• Temperature calibration
• Open window detection
• ZeroX detection
• Supports encryption modes S0, S2 Authenticated Class, S2 Unauthenticated Class

Technical

• IOT Protocol:Z-Wave - 868.4 MHz (EU)
• Voltage:230V 50Hz
• Max load (Watt - resistive load):3600
• Max current (Ampere):16
• Own power usage (watt):2
• Effect regulator:Timed cycle 0-30 minutes
• Max installation temperature (°C):40
• Min installation temperature (°C):5
• Temperature interval:External room sensor 5°C - 40°C
• Hysteresis:0,3°C to 3,0°C (default hysteresis 0,5°C)
• Switch type:One-pole switch
• Compatible NTC-sensors (k? @ 25°C):10, 12, 15, 22, 33, 47, 6.8, 100
• Protection grade (IP):IP21
• Certifications:Z-Wave Plus v2
• Ambient humidity (RH non-condensing %):10-85
• Ambient temperature range in storage (°C):-30-70
• Range ambient temperature (°C):5-40

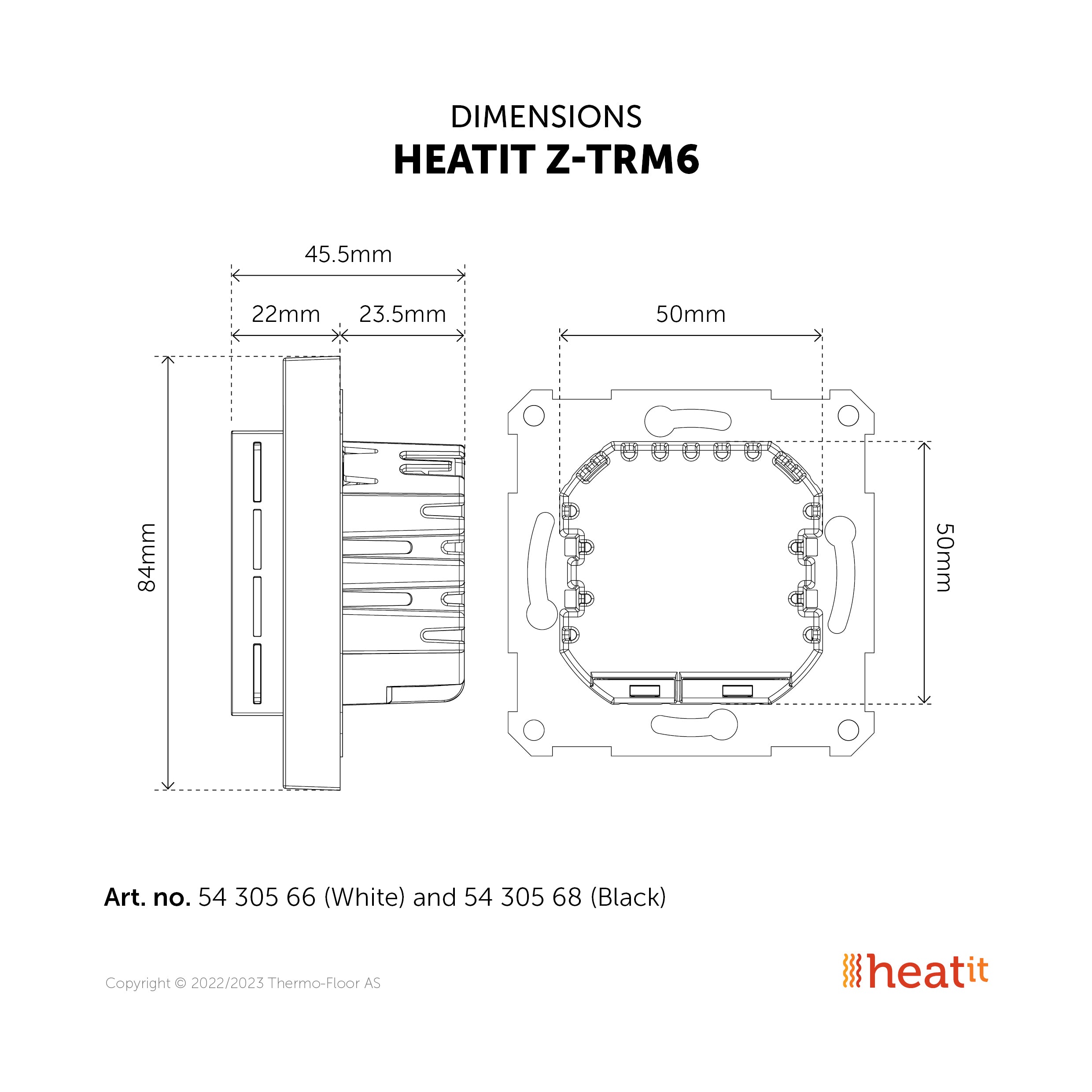

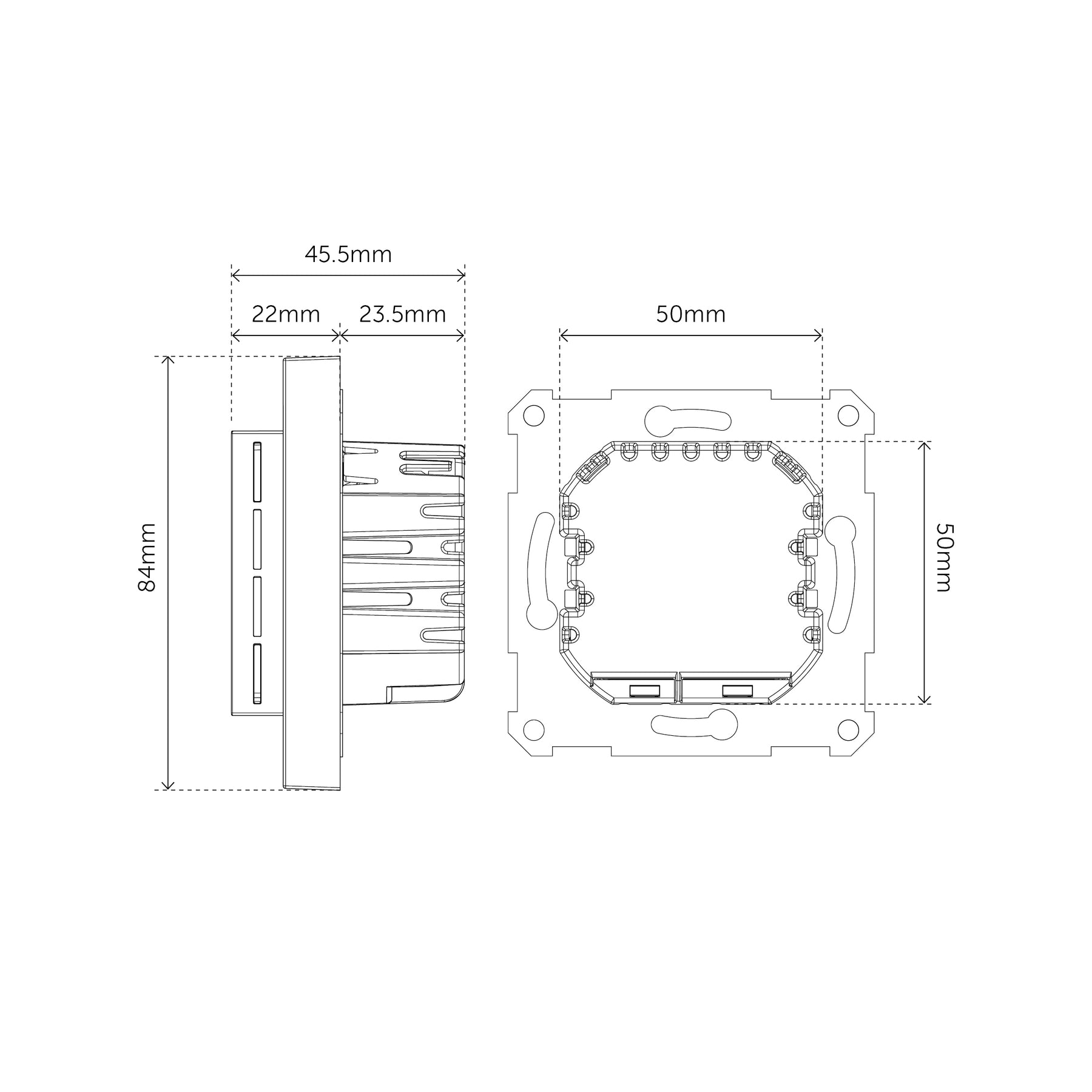

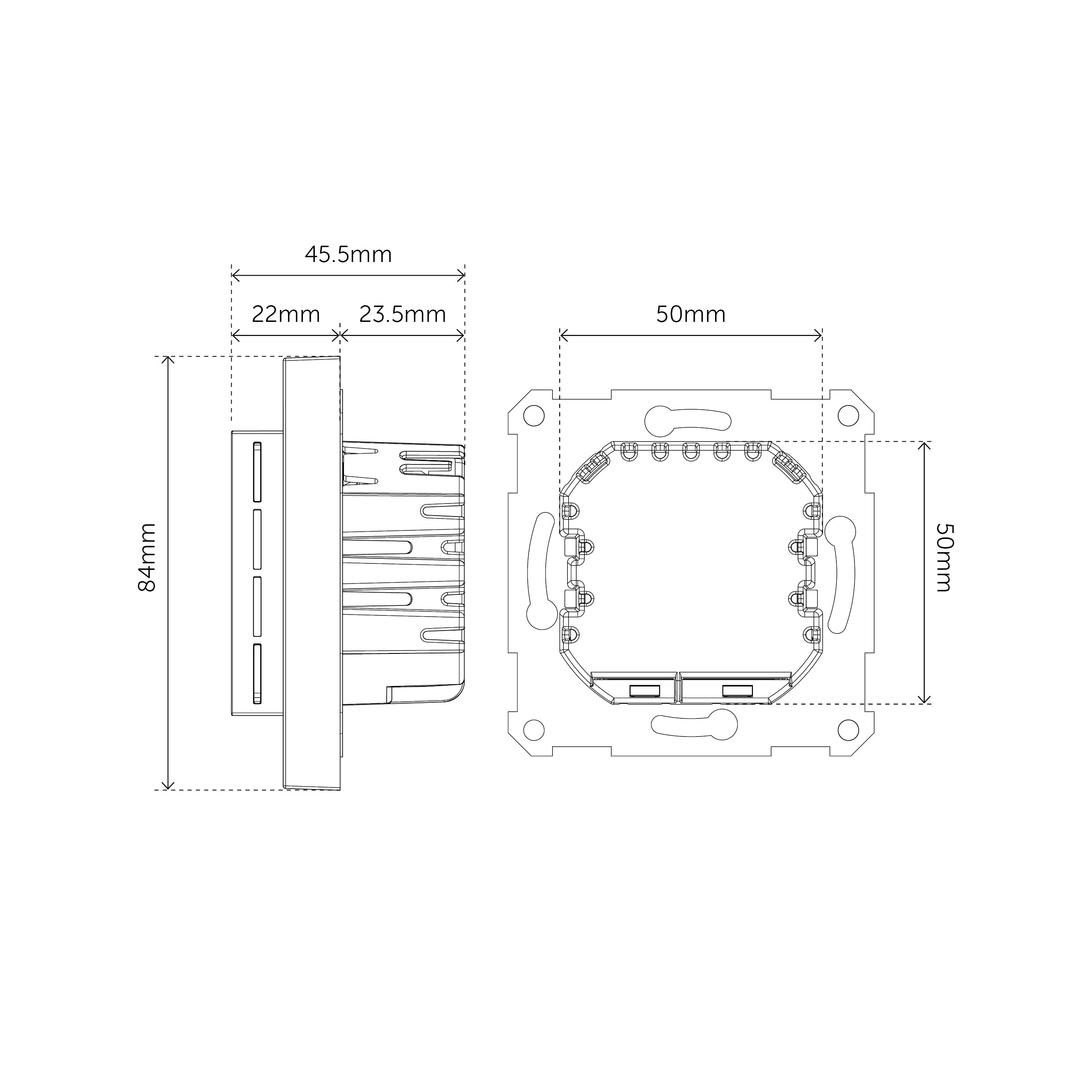

• Dimensions (LxHxW):45x84x84
• Total gross effect (W):3600
• Declarations:CE, CE declaration
• International standard:EN 60730-1, EN 60730-2-9, EMC 2014/30/EU, RoHS 2011/65/EU, LVD 2014/35/EU, CE
• Signal range radio frequency (max no. meters):40
• SDK:7.18.1
• Max connection dimension (mm²):2,5mm²
• Max ambient humidity (%RH):80% RF, 85% RF
• Max regulating temperature (ºC):40
• Model type:Thermostat
• Assembly / mounting location:European Junction Box
• Multisensor surveyparameters:Temperature sensor air
• Package size:1
• Product height (mm):45
• Product length (mm):84
• Product weight (gram):135
• Product width (mm):84
• Sensor values thermostats:25°C 10,0 kΩ
• IOT Chip type:Z-Wave 800 chip
• Push buttons:3
• Z-Wave encryption mode:S0, S2 Authenticated Class, S2 Unauthenticated Class

Manuals

Heatit Z-TRM6 Manual
