Sale price£41.99
Pickup available at Whitehills Usually ready in 4 hours

Aeotec Range Extender 7 - UK


Pickup available, usually ready in 4 hours

15 Olympic Court
Blackpool FY4 5GU
United Kingdom


PLEASE NOTE: Due to global stock issues, all Aeotec products are currently operating on a 5-7 working day dispatch time.

We all know how annoying weak wireless signals can be. Weak WiFi and poor phone signals are frustrating. Imagine if your smart home was also plagued by weak wireless signals and the same frustrations? Your smart home wouldn’t be very smart. The Range Extender 7 from Aeotec ensures that your connected home stays connected. It intelligently listens to the commands and reports that your Z-Wave network sends, actively capturing weak signals and then amplifying and repeating them.

Amplifies wireless signals:
Not only does Range Extender 7 accurately repeat Z-Wave signals, it amplifies them too and helps improve the reliability and accuracy of your Z-Wave network.

Big on impact. Small in size:
Range Extender 7 is a power-outlet friendly device, designed to be as small and as compact as possible without compromising on performance. So that it doesn’t block neighbouring power outlets.

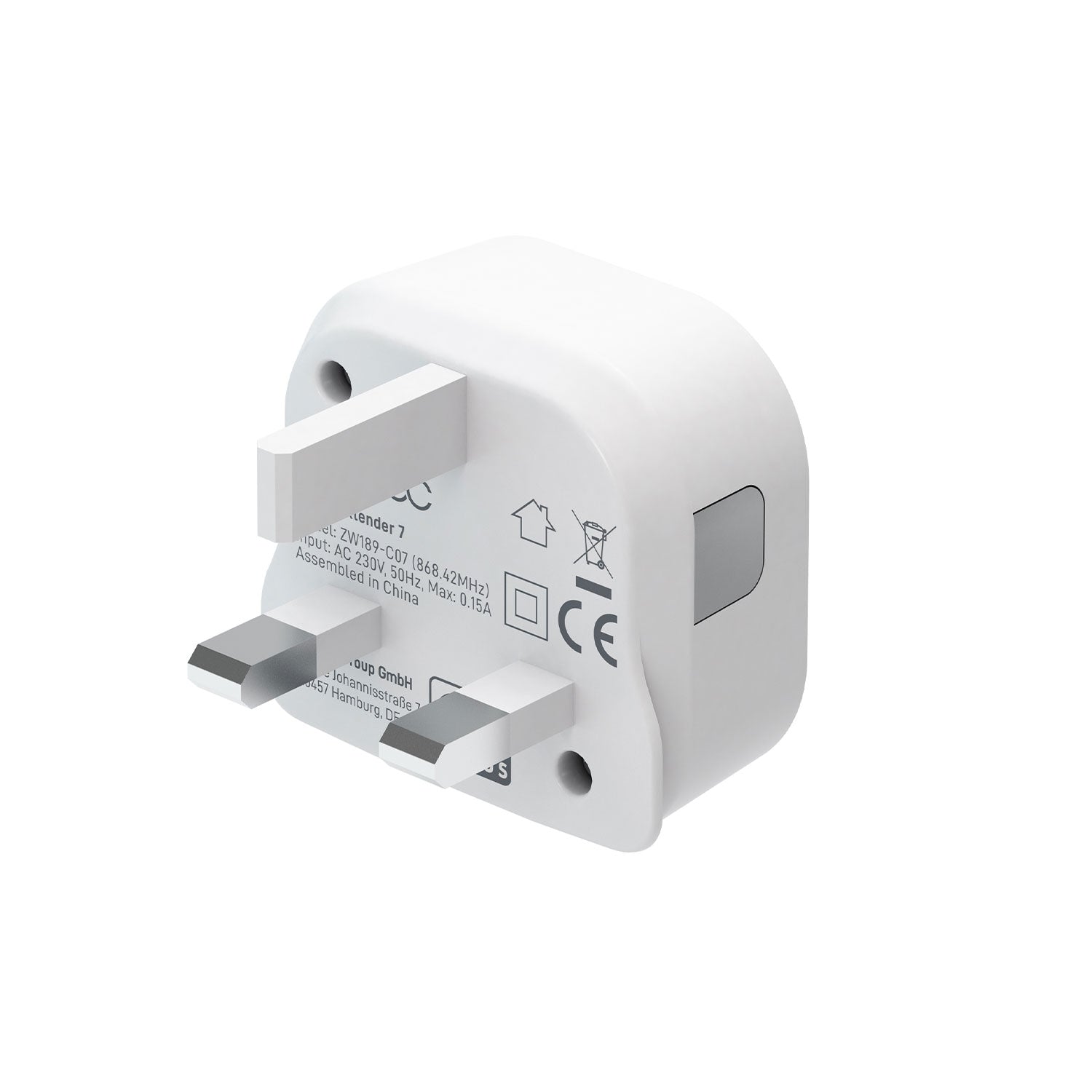

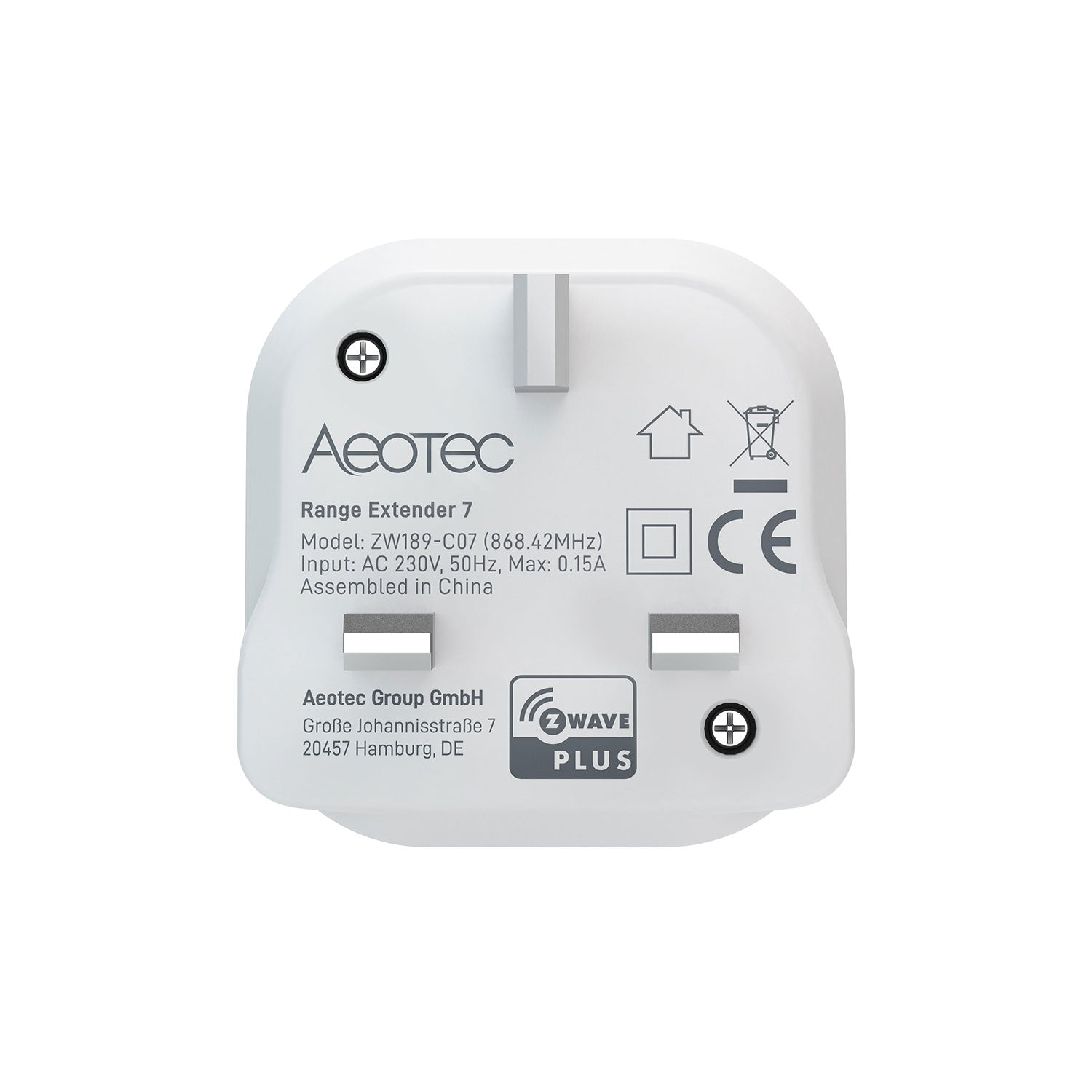

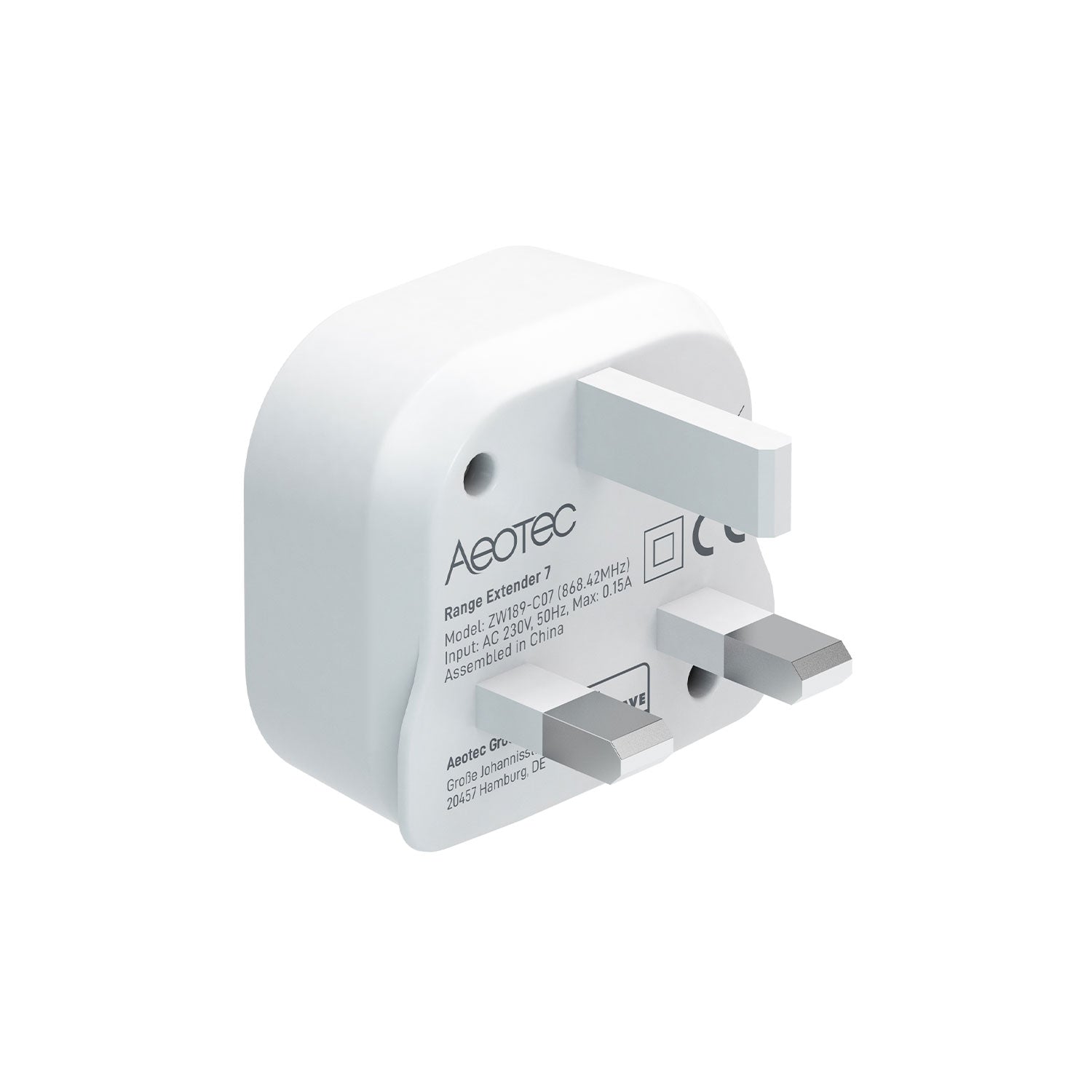

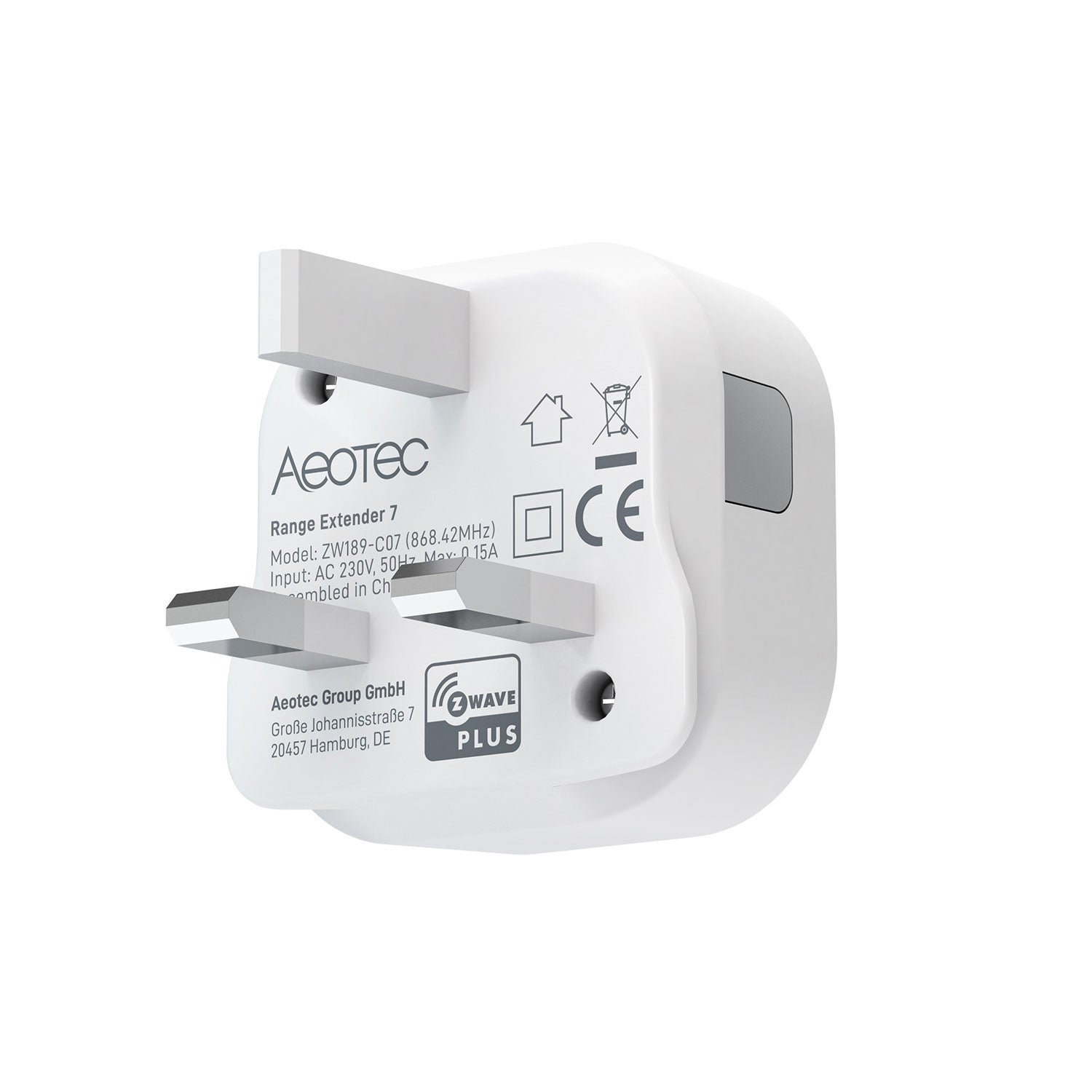

The Aeotec Range Extender 7 is compatible with a plug Type G.

  • Repeat and improve Z-Wave network
  • Compact design for space-saving use
  • Power Supply: 230V
  • Wireless technology: Z-Wave Plus

Name: Range Extender 7

Model number:

US: ZW189-A01

AU: ZW189-B21

EU/UK: ZW189-C15/C07

Product Dimensions:

US: 53.2 x 46 x 40 mm

EU: 46 x 46 x 60.65 mm

AU: 46 x 46 x 48.6 mm

UK: 53.2 x 46 x 48.6 mm

Package Dimensions: 76 x 68 x 58 mm

Product Weight: 38g

Total Package Weight: 66 g


US: 810667025274

EU: 1220000016583

Smart Start: Yes

Repeater: Yes

Beaming Capable: Yes

Security Supported:

S2 Unauthenticated

S2 Authenticated

Power Consumption:

EU/AU/UK = 1.2W

US = 0.6W

Operating temperature: 32°F to 104°F/0°C to 40°C.

Relative humidity: 8% to 80%.

Operating distance:

More than 70 meters indoors / More than 229 feet indoors.

Up to 150 meters outdoors / Up to 492 feet outdoors.

Waterproof and dust rating: IP20 under IEC 60529

AC input:

Version Input (standby power) Working Band
EU/UK 100 - 240VAC, 50/60Hz Max: 150mA 868.42MHz
AU 100 - 240V 50/60Hz, Max: 150mA 921.42MHz
US 120V 60Hz, Max: 100mA 908.42MHz

Saftey Certifications:





Aeotec Range Extender 7 Manual
