UniFi 6 Mesh - Outdoor WiFi Access Point
UniFi 6 Mesh - Outdoor WiFi Access Point
Whitehills
6 Thompson Road
Whitehills Business Park
Blackpool FY4 5QF
United Kingdom
Description

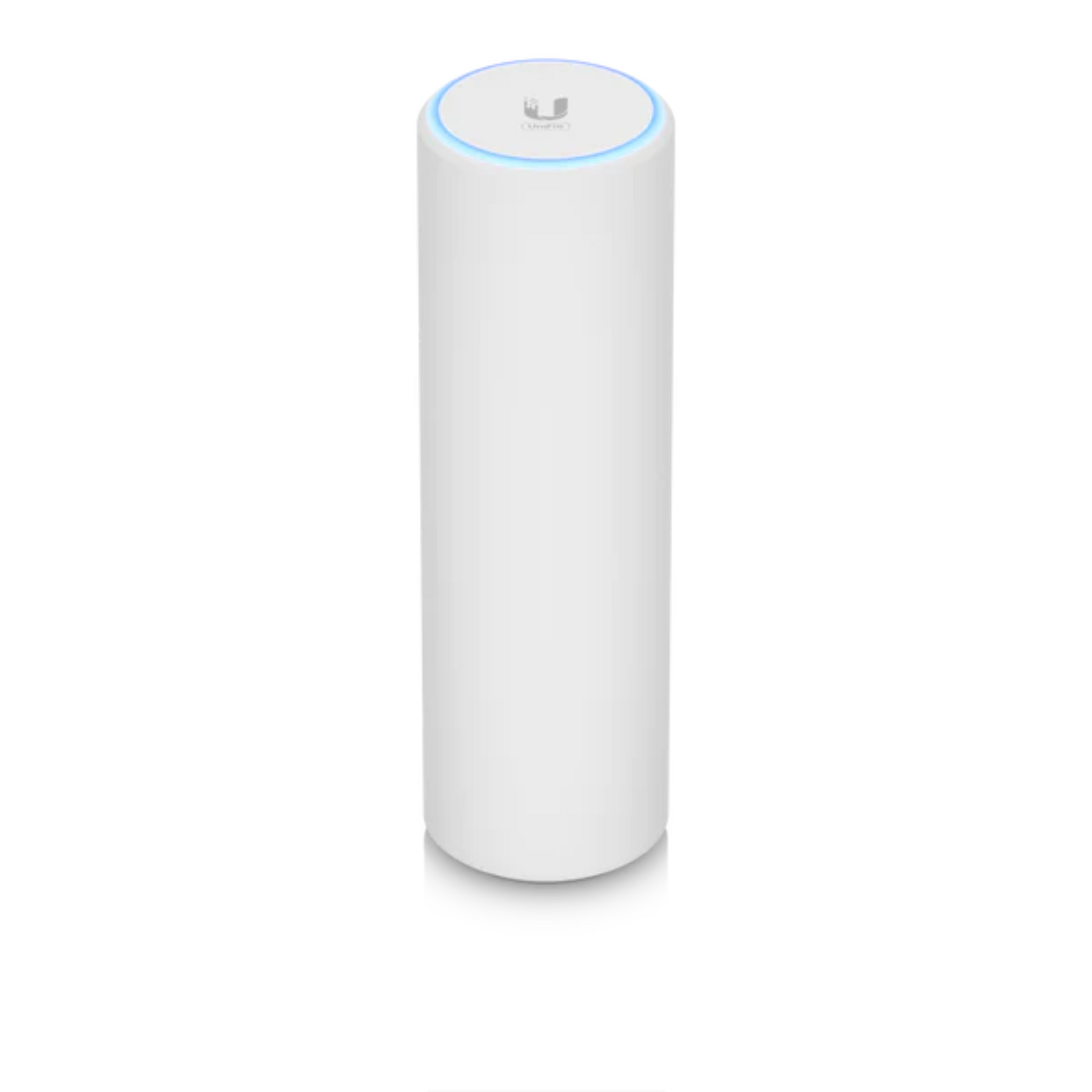

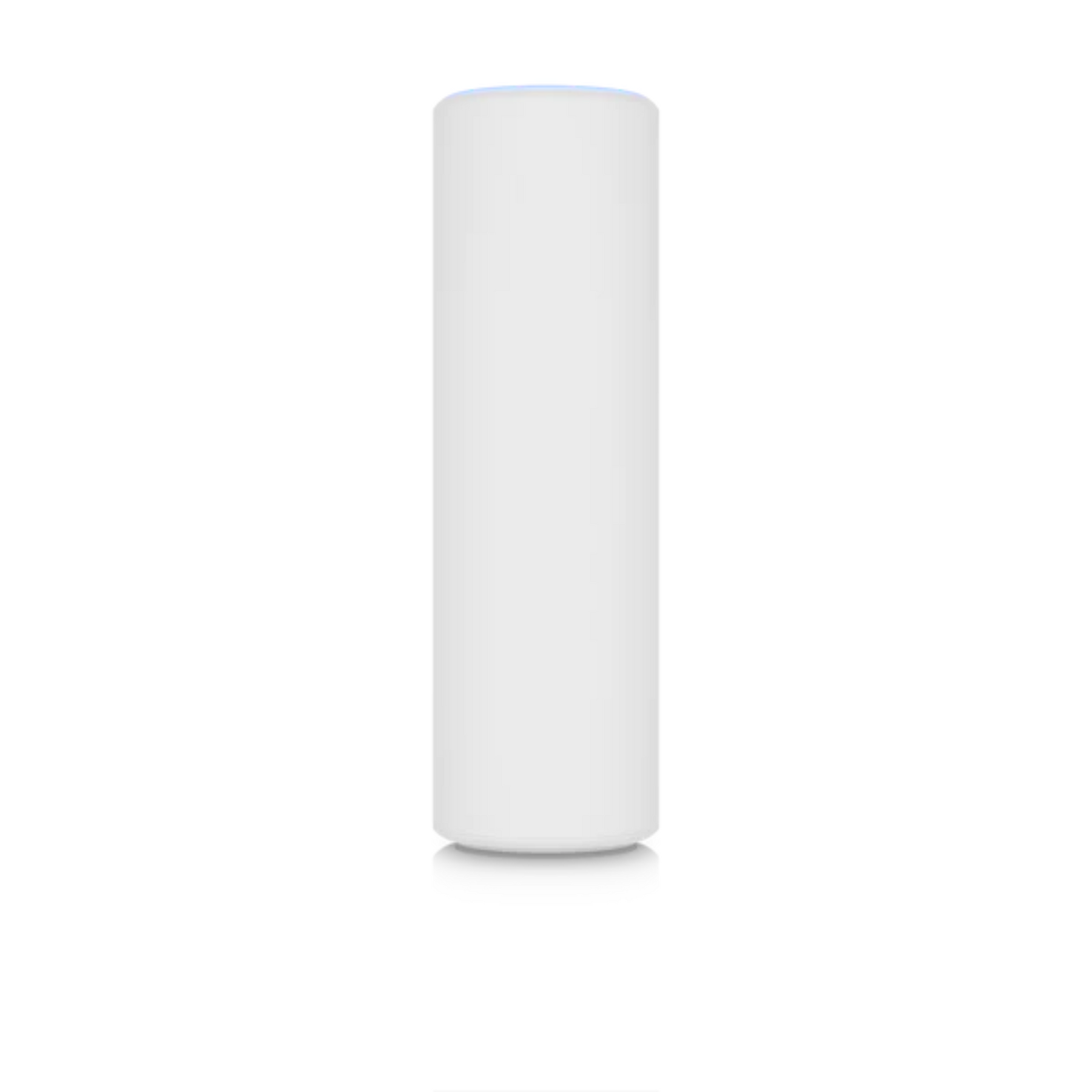

The UniFi6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MU-MIMO and OFDMA) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features
- High-efficiency 4x4 WiFi 6 (802.11ax)
- 5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
- 2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 throughput rate
- Operates at full 4x4 MIMO with 160 MHz bandwidth
- Powered with PoE (PoE adapter included)
Specifications
| Management interfaces |
Ethernet Bluetooth |

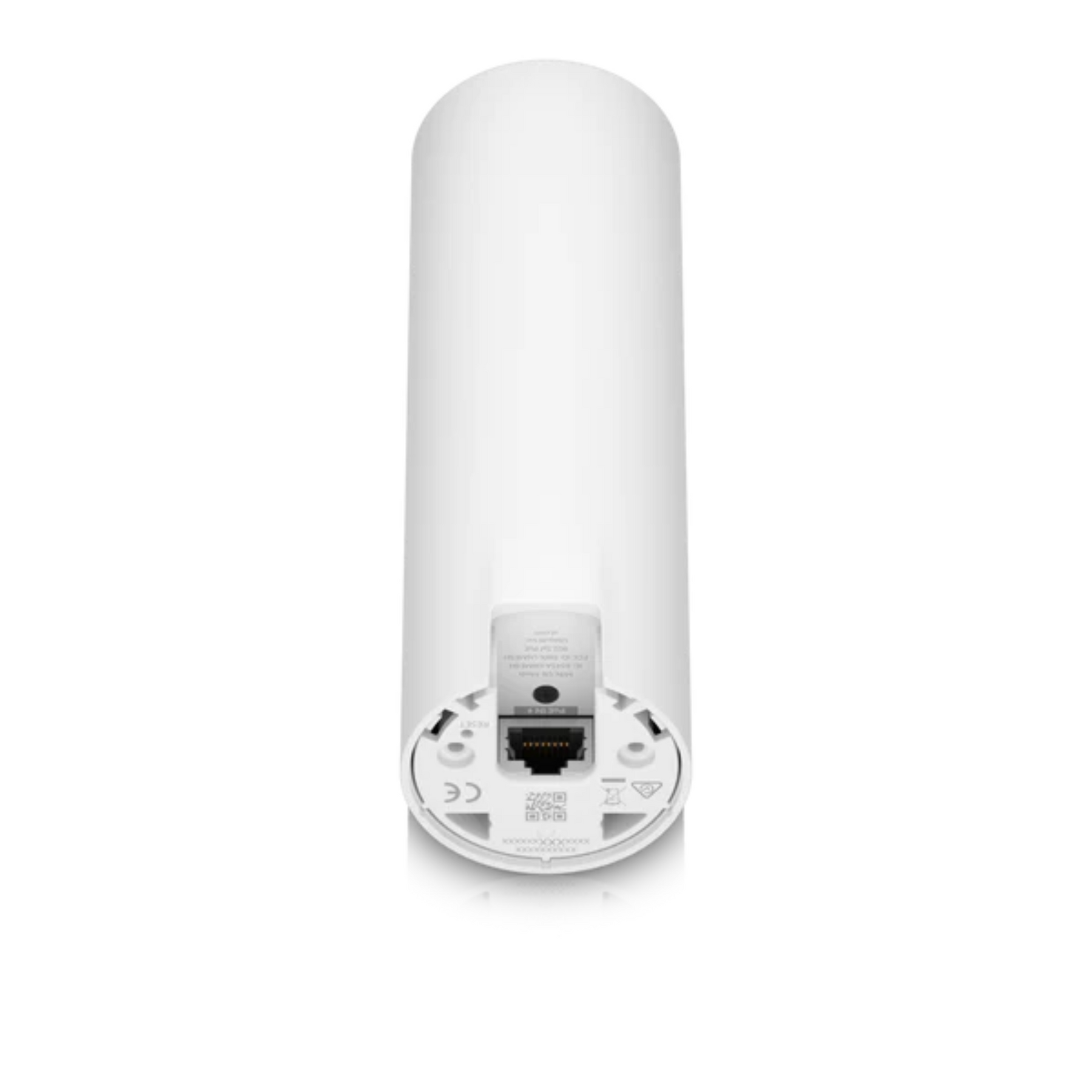

| Networking interface | (1) GbE RJ45 port |
| Button | Factory reset |
| LED* |
White/blue *Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes. |
| Power method | PoE |
| Power supply |
UniFi PoE switch 48V, 0.32A PoE adapter (included) |
| Supported voltage range | 44 to 57VDC |
| Max. power consumption | 11.4W |
|
Max. TX power 2.4 GHz 5 GHz |
22 dBm 26 dBm |
|
MIMO 2.4 GHz 5 GHz |
2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) |
|
Throughput rate 2.4 GHz 5 GHz |
573.5 Mbps 4.8 Gbps |
|
Antenna gain 2.4 GHz 5 GHz |
3 dBi 5 dBi |
| Mounting |

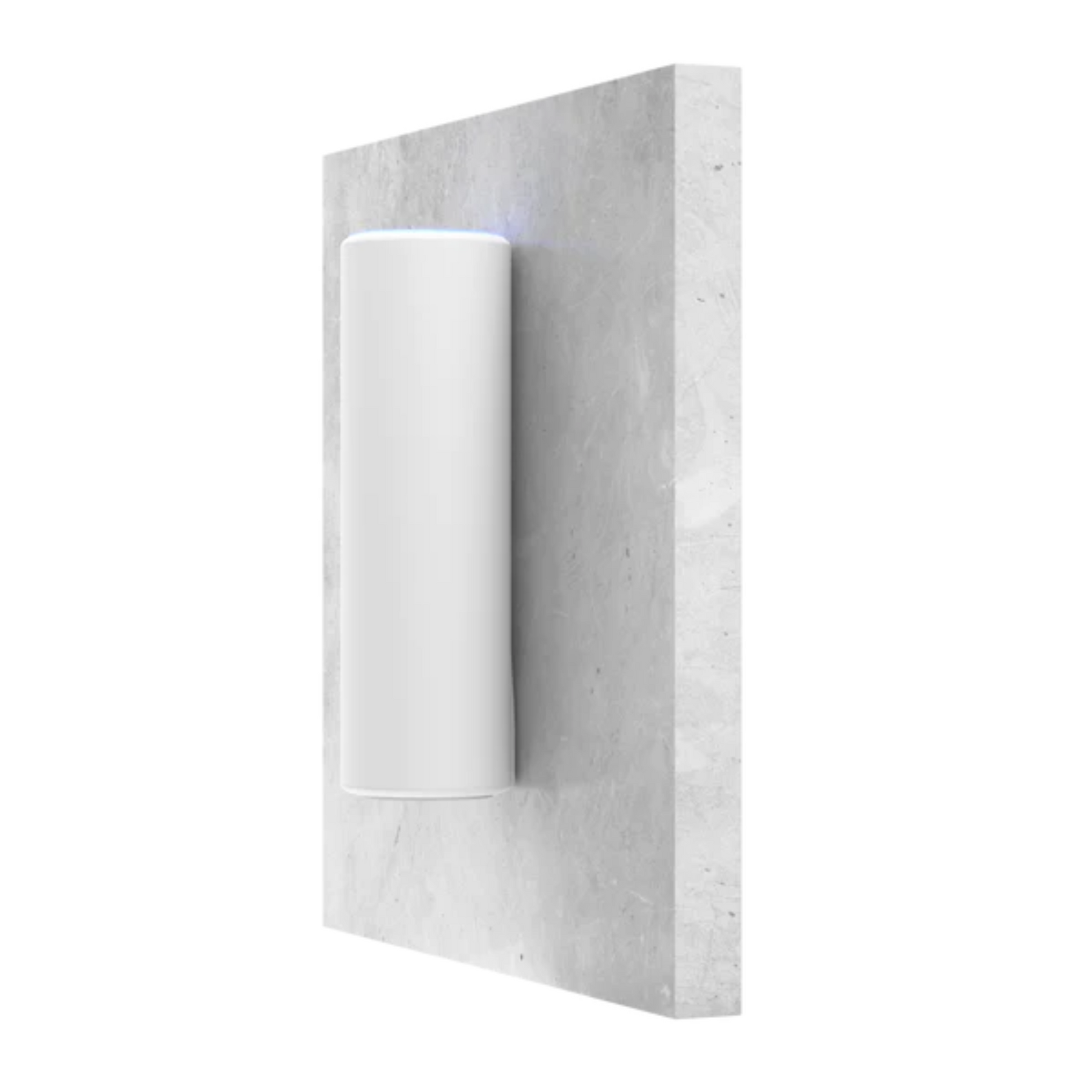

Wall, desktop, pole mount(included) Ceiling mount (optional) |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 - 95% noncondensing |
| Certifications | CE, FCC, IC |
Manuals
Multi-buy Discount
Purchase any 5 items, receive 5% off!
Purchase any 10 items, receive 10% off!
Available across all of our products!*
*Exclusions may apply.
Unrivalled Network Solutions

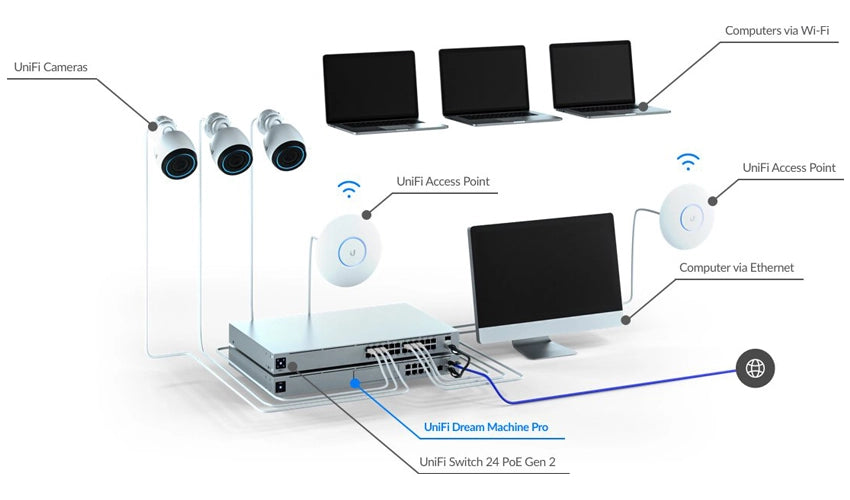

Unifi's comprehensive 'Plug & Play' network devices integrate directly with their industry-leading range of CCTV cameras, allowing for a full suite of connectivity and security. Managed from one intuitive app, achieving whole-home WiFi has never been easier.
