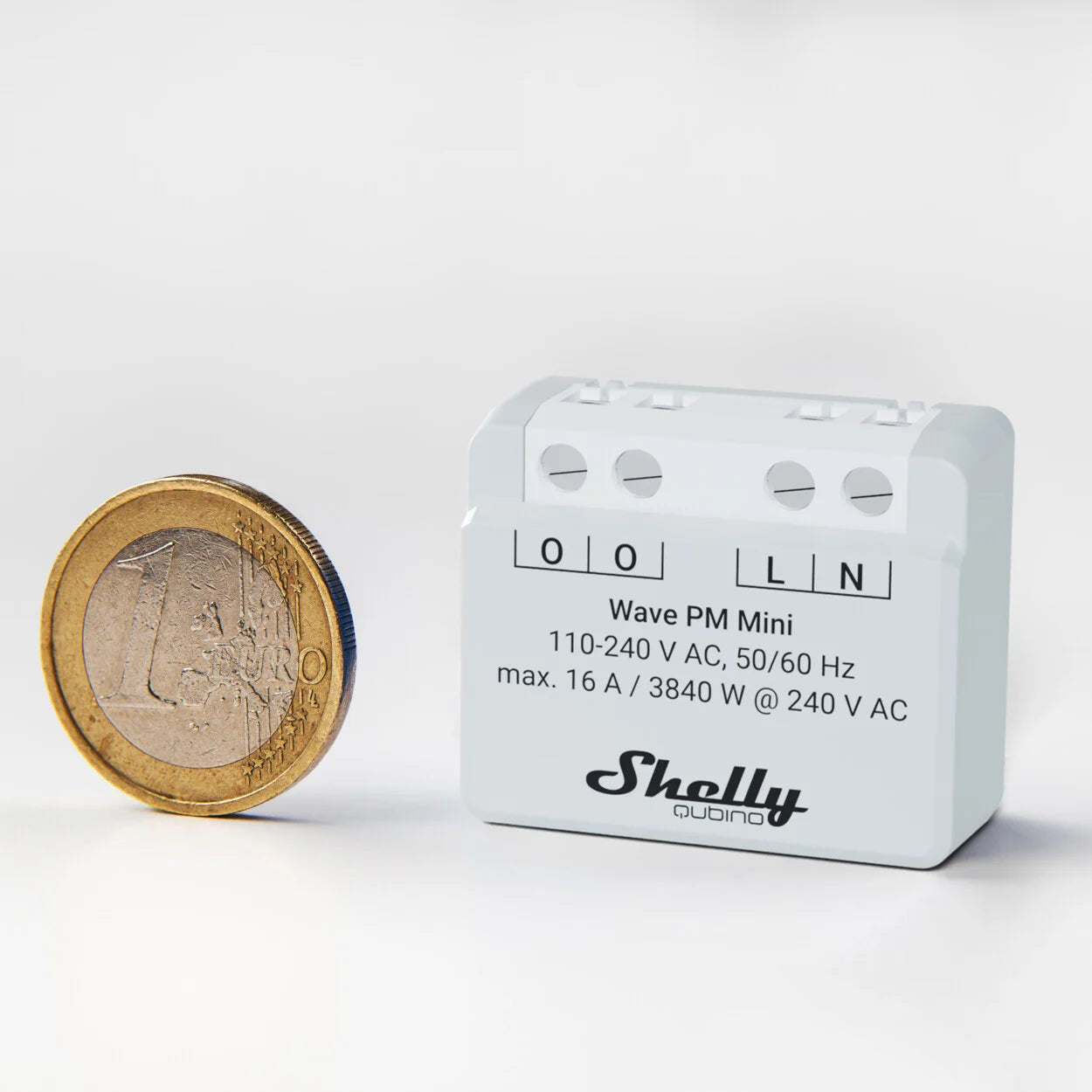

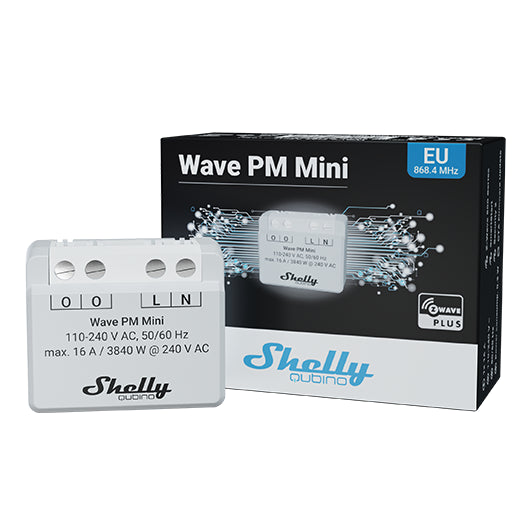

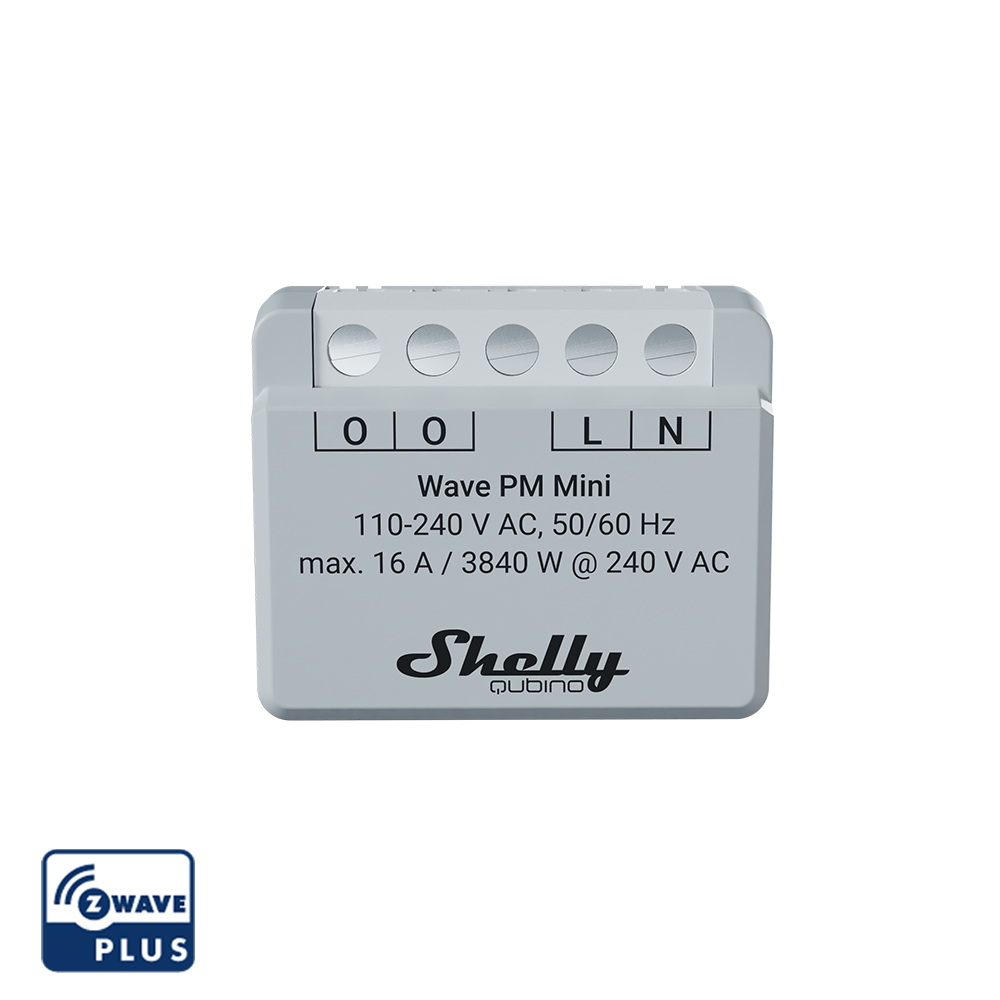

Shelly Qubino Z-Wave Wave PM Mini

Description

PLEASE NOTE: All Shelly products are currently operating on a 5-7 working day dispatch time.

Z-Wave® smart power meter, 1 channel 16 A.

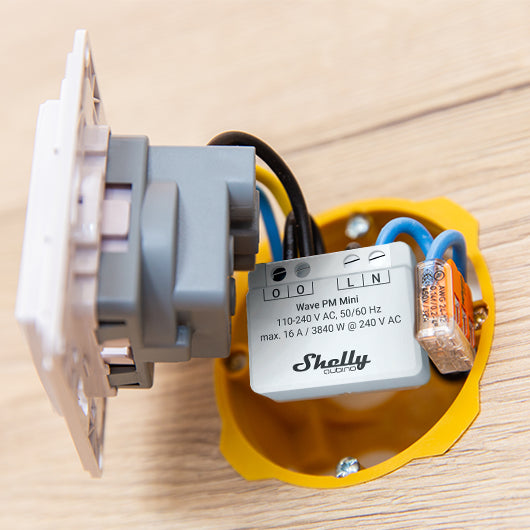

The smallest Z-Wave power meter in the world for precise power monitoring. Track electrical appliances' power consumption from anywhere and optimize your energy usage. Thanks to its compact retrofit design, it is small enough to fit into even the most tightly packed spaces and electrical wall boxes.​

WHY WAVE PM MINI?​
Mini Size, Mini Price​.
Designed with convenience in mind, this Mini power meter has the powerful capability of energy consumption monitoring fit into a compact and space-saving form factor.  Wave PM Mini is perfect for those tight spaces where traditional devices simply won't fit. Despite their small size, the Wave Mini devices don't compromise on performance or functionality.​

Shelly Qubino works on Z-Wave​.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world. ​

Supports up to 16 A.
The device can measure power consumption of a load of up to 16 A.​

Power Monitoring.
Wave PM Mini provides precise power consumption monitoring.​

Associations.
Establish direct communication between devices in your Z-Wave local network and set actions with no gateway present!​

Smart scenes.
Set custom scenes by combining Wave PM Mini with any other Z-Wave devices (gateway required). ​

Use Cases.

Preventative management​.
When an electrical appliance is damaged, it doesn't simply stop working. Usually, it increases the amount of energy used to compensate for its operational capacity. Since there is no visible difference in its performance, it might take months before you can identify a problem, leading to inefficiency and wasted energy. Wave PM Mini, however, will immediately report the increase in energy consumption and will save you additional expenses on repairs or replacement of equipment.​​

Track your power consumption and enhance cost-effectiveness.
It can happen sometimes that we forget to switch off all the lights or leave an appliance we don‘t need during the night on, which generates unnecessary energy. Wave PM Mini‘s power monitoring enables the detection and eradication of excess energy consumption across your household. Together with smart scenes, you can use Wave PM Mini‘s data to set off scenarios, such as turning off appliances during a spike to protect them or during the night to save energy.

Features

• Power Supply: 230 V AC

• Power consumption: < 0,3W

• Operating temperature: -20°C - 40°C

• Humidity: 30 - 70% RH

• Radio technology: Z-Wave 868,4 MHz

• Range: up to 40m indoor

• Conductor cross section: 0.5 to 1.5mm/ 20 to 16 AWG

• Range Extender: Yes


Manuals

Click here for the Shelly Qubino Z-Wave Wave PM Mini manual
