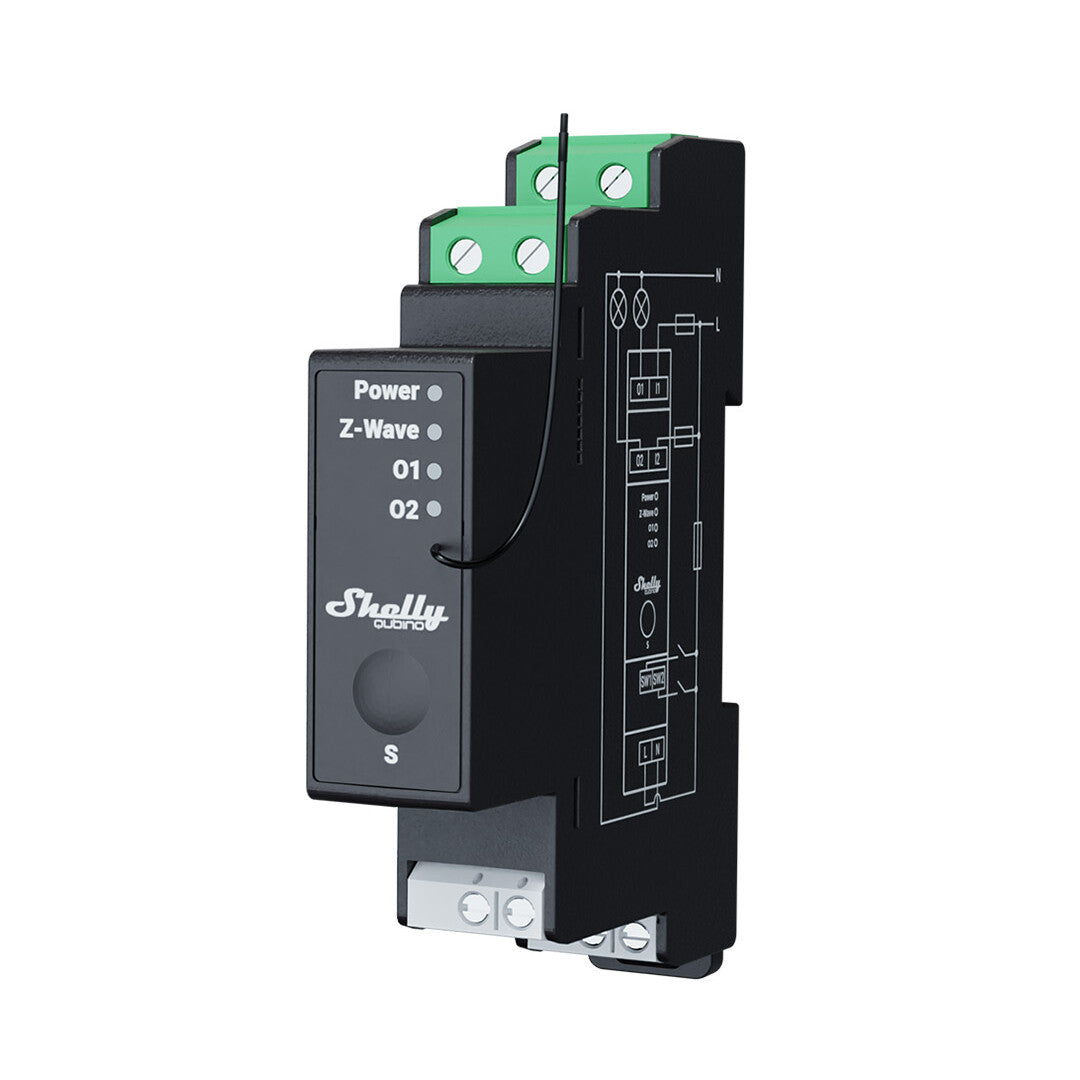

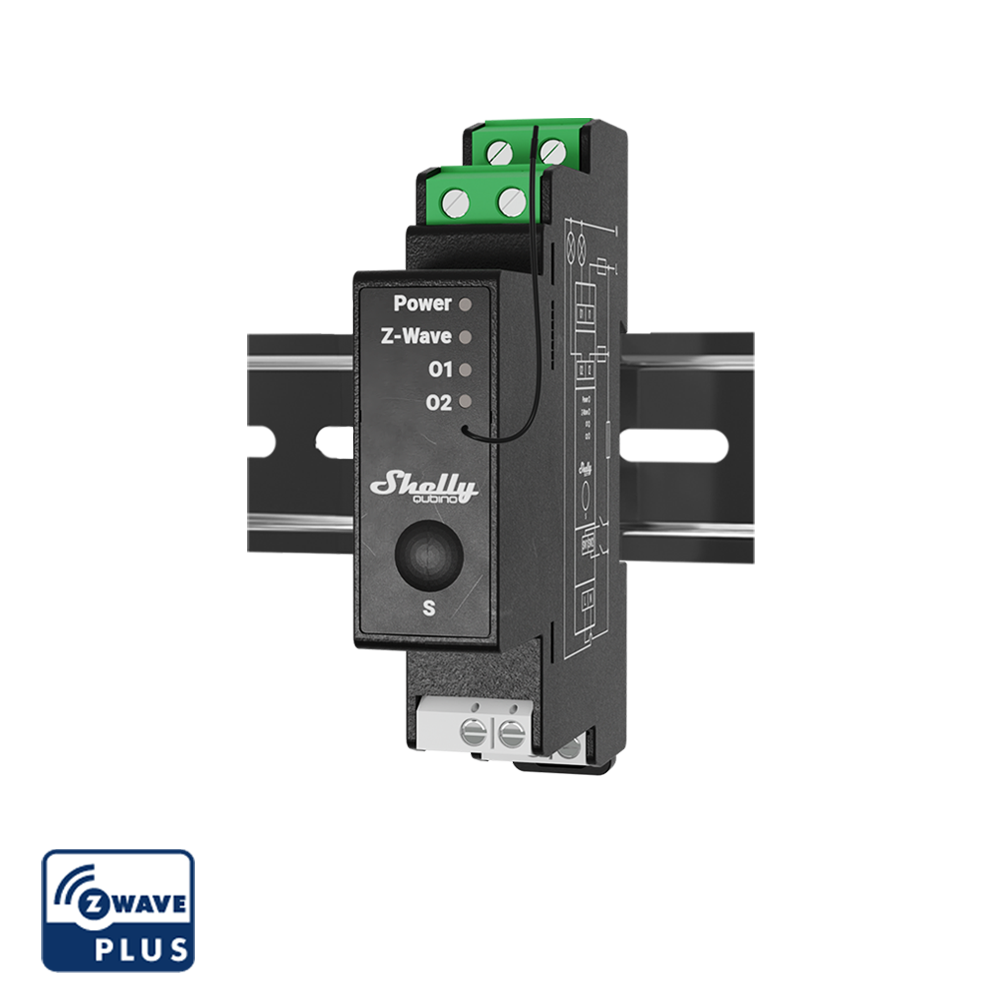

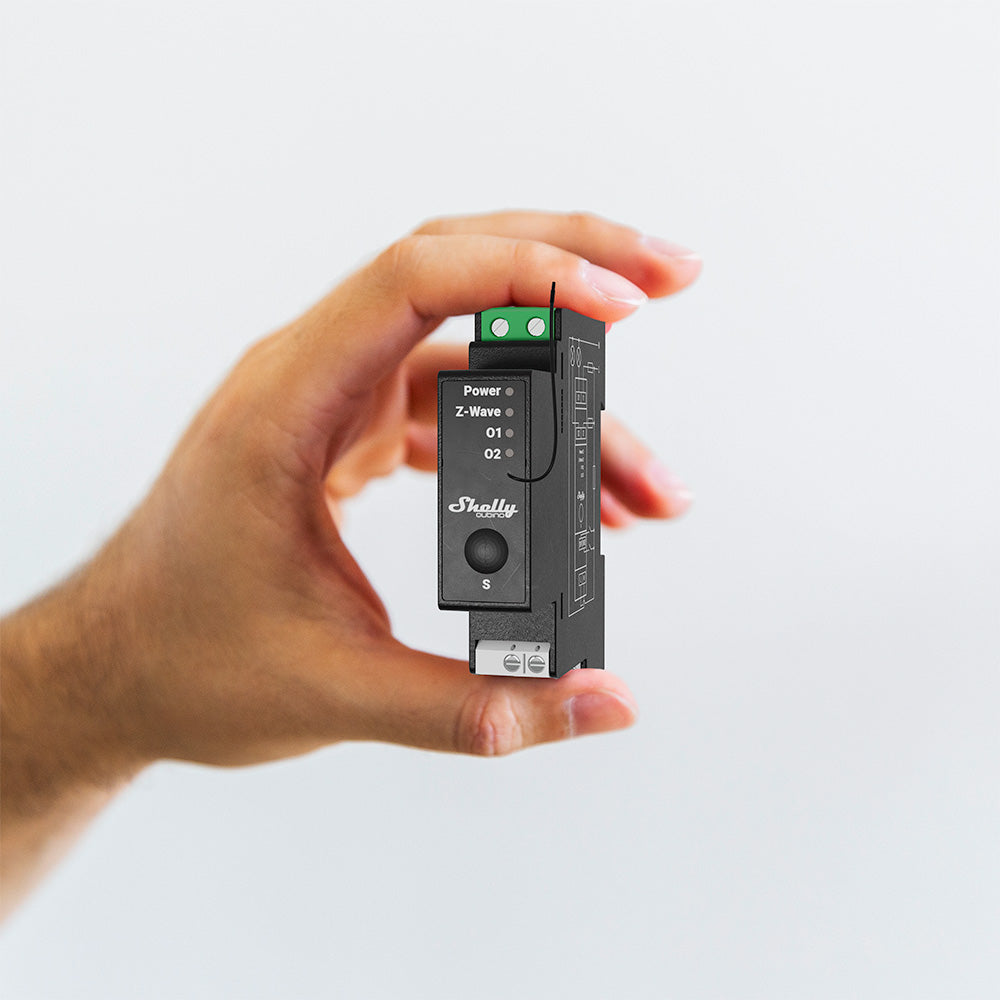

Shelly Qubino Z-Wave Wave Pro 2PM

Description

PLEASE NOTE: All Shelly products are currently operating on a 5-7 working day dispatch time.

Professional 2-channel DIN rail Z-Wave® smart switch with power metering​.
Suitable for home and facility automation with remote control. DIN-rail mountable inside a breaker box. Enhanced safety features.​

The best solution for new home buildings and business facilities.​​
Wave Pro 2PM is a one-phase, 2-channel relay, supporting up to 16 A per channel with a total device capacity of 25 A. It is equipped with two integrated power meters that allow customers to control and monitor the consumption for each channel separately and or together. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs. ​

Shelly Qubino works on Z-Wave.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.

2 outputs, 16 A each​​​.
Wave Pro 2PM has a total device output of 25 A. ​

Power metering​​​.
Wave Pro 2PM provides precise monitoring of the power consumption on each channel (W) or together (W, kWh).​

Associations.
Establish direct communication between devices in your Z-Wave local network and set actions with no hub present! ​

The highest level of security.
Include the device as Security 2 Authenticated for encrypted communication and utmost safety of your Z-Wave network.

Use Cases.

Dynamic lights control for improved efficiency​​.
Automate your lights and optimize their energy consumption through smart schedules, scenes, actions, etc. Wave Pro 2PM allows you to automate the lights on each floor separately and set custom schedules for each of them. Set all lights in the office to switch off when everyone has left the premises and never worry about wasting energy during non-working hours.​

Smart conference room ​.
Automate the conference rooms so that they are fully ready for your business meetings. Establish a local (direct) communication between Z-Wave devices within your network and execute actions without Z-Wave gateway. The motion sensor* will trigger the Wave Pro 2PM to turn on the lights and the projector, so the conference room is instantly ready for your presentation!​

Track and optimize your energy usage.  ​​
Keep an eye on real-time consumption of appliances and stop unnecessary energy usage in the office over the weekend! With Wave Pro 2PM you can precisely measure power consumption for each channel separately (W) and together (W, kWh). There are many appliances that employees forget to turn off when leaving the office on Friday, such as monitors, plugged chargers, desk lights, or printers, unnecessarily burdening the monthly bills. Use smart schedules to cut off the power supply of the office appliances over the weekend and to restore it before the employees arrive at the office. ​

​Preventative management. ​ ​
When an electrical appliance is damaged, it doesn't simply stop working. Usually, it increases the amount of energy used in an attempt to compensate for its operational capacity. Since there is no visible difference in its performance, it might take months before you can identify a problem, leading to inefficiency and wasted energy. Wave Pro 2PM, however, will immediately report the increase in energy consumption and will save you additional expenses on repairs or replacement of equipment.​

Features

• Power supply: 110-240 V AC, 50/60 Hz

• Power consumption: < 0.3 W

• Power measurement (W): Yes

• Max. switching current: 16 A per channel, 25 A total

• Overheating protection: Yes

• Overload protection: Yes

• Overvoltage protection: Yes

• Distance: Up to 40 m indoors (131 ft.) (depends on local condition)

• Z-Wave repeater: Yes

• CPU: Z-Wave™ S800

• Z-Wave frequency bands: 868,4 MHz

• Mounting: DIN rail

• Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)

• Conductor cross section: 0.5 to 1.5 mm²/ 20 to 16 AWG (white connectors)

• Ambient temperature: -20°C to 40°C / -5°F to 105°F

• Humidity: 30 % to 70 % RH


Manuals

Click here for the Shelly Qubino Z-Wave Wave Pro 2PM manual
