Ubiquiti

Unifi Switch Pro 24 PoE

£679.99
Sold out

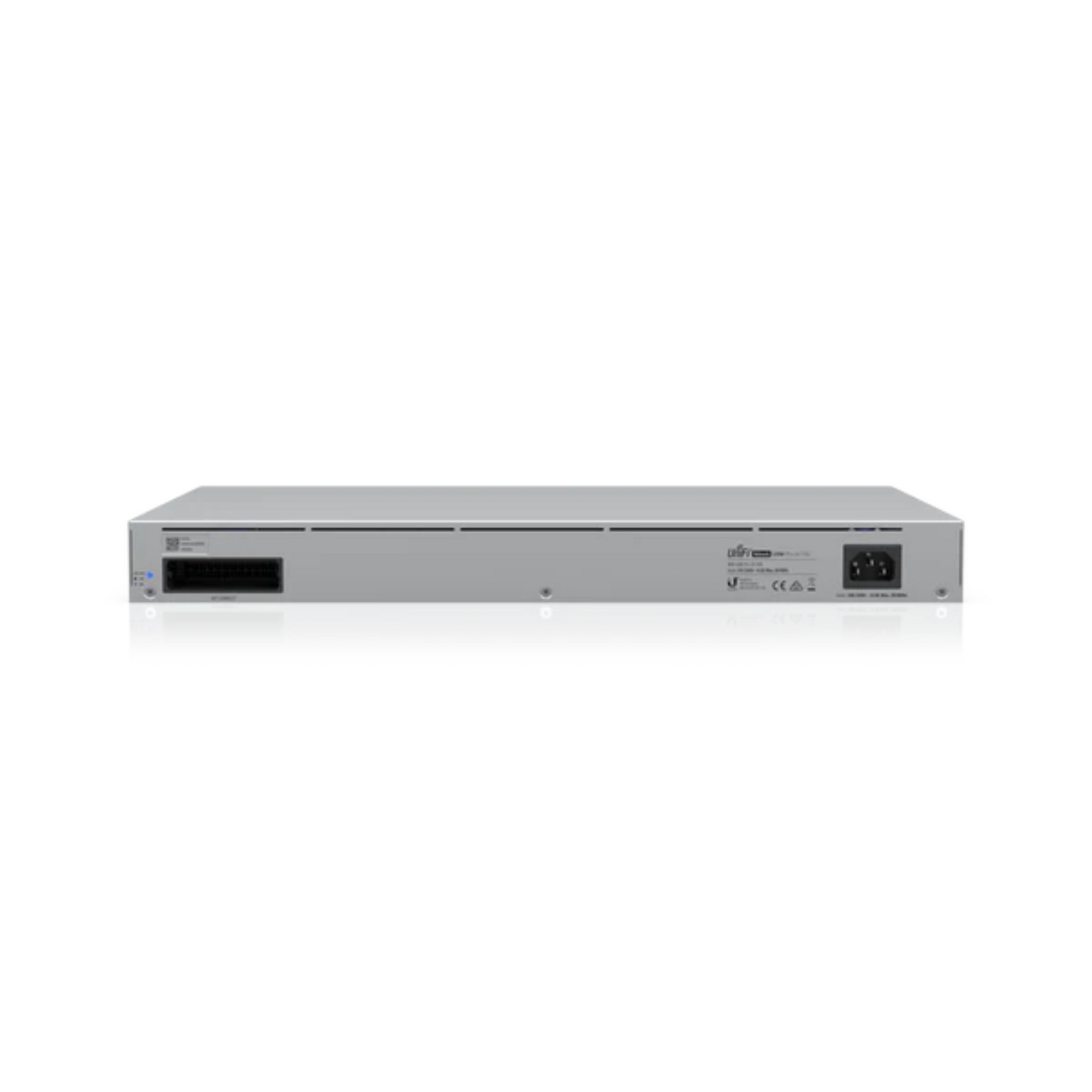

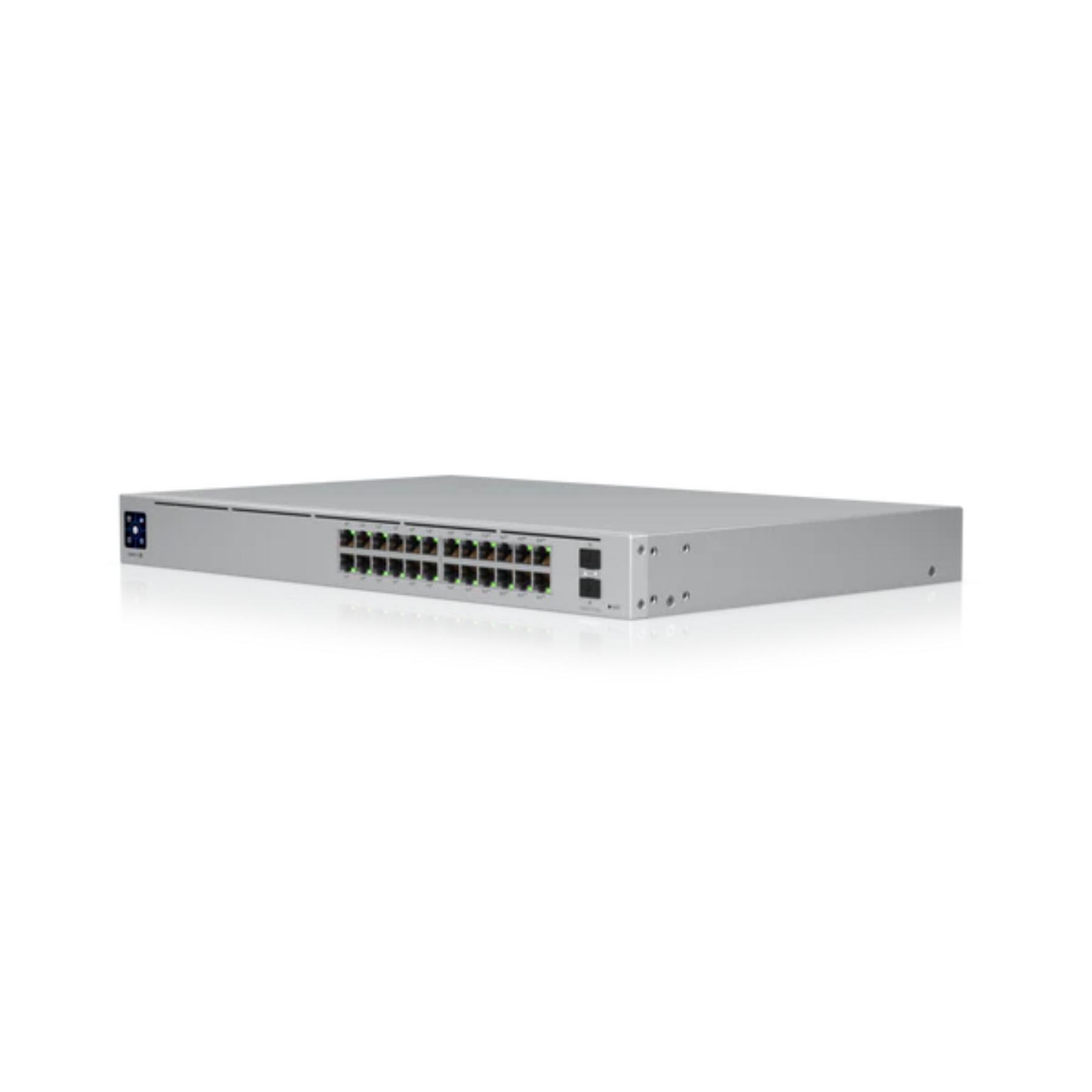

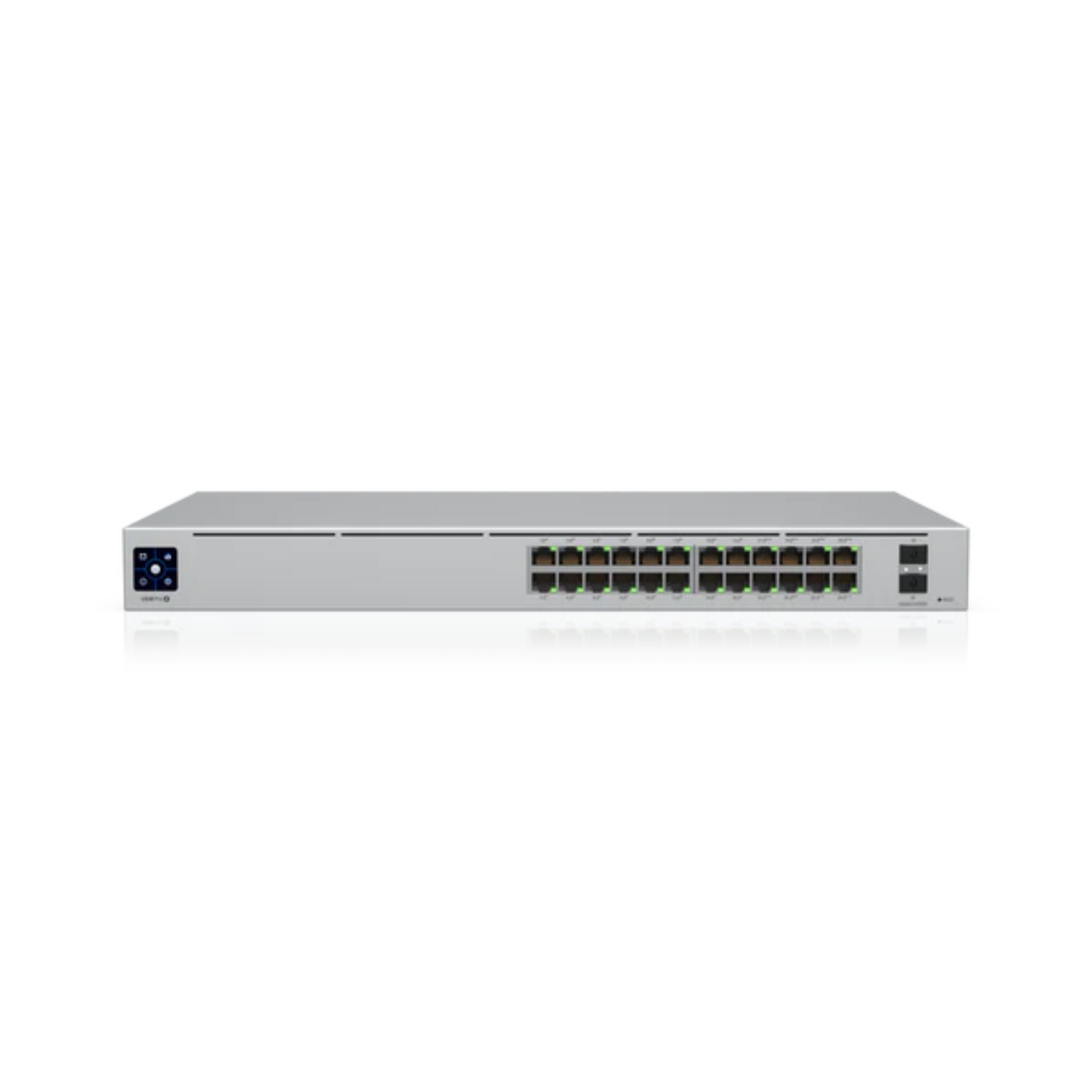

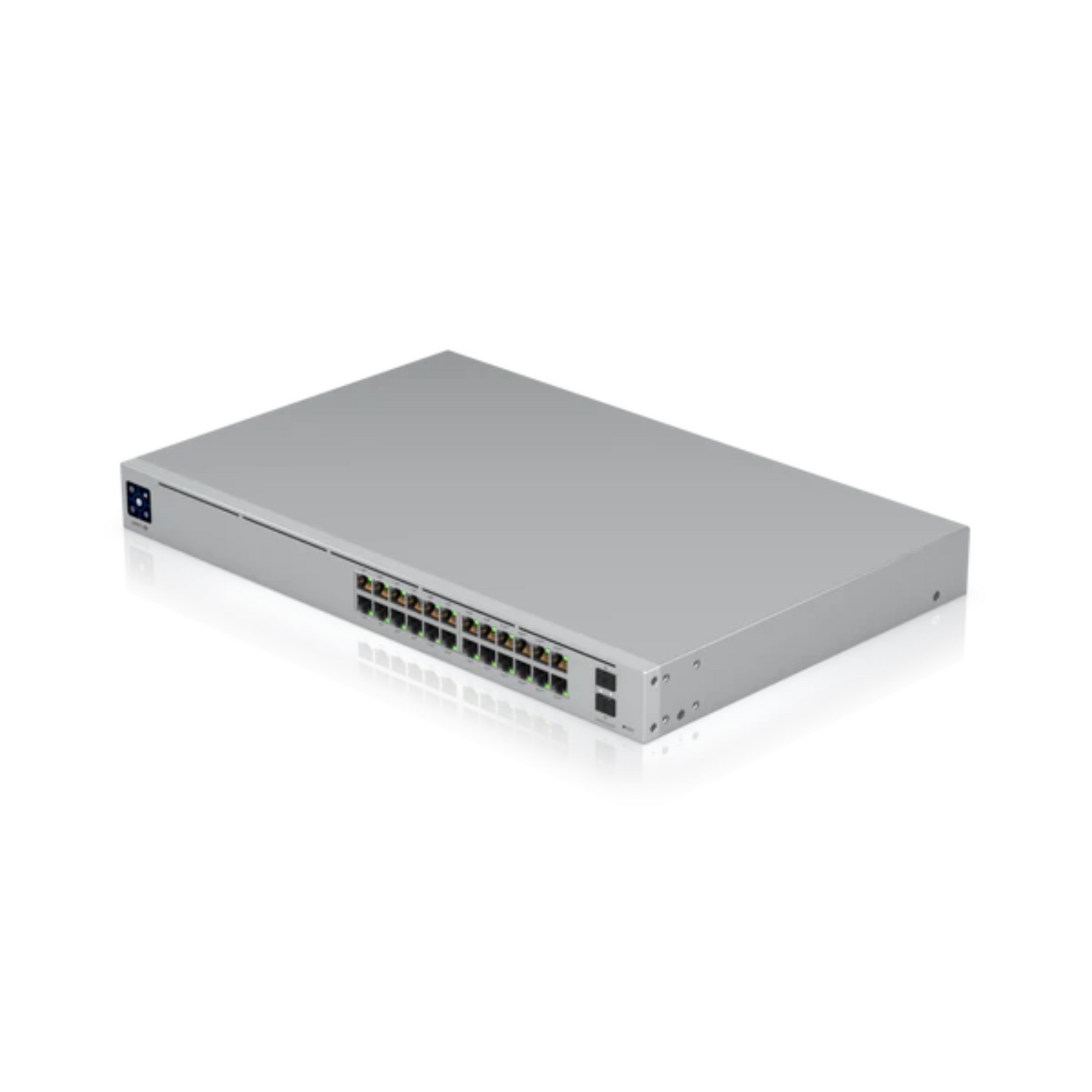

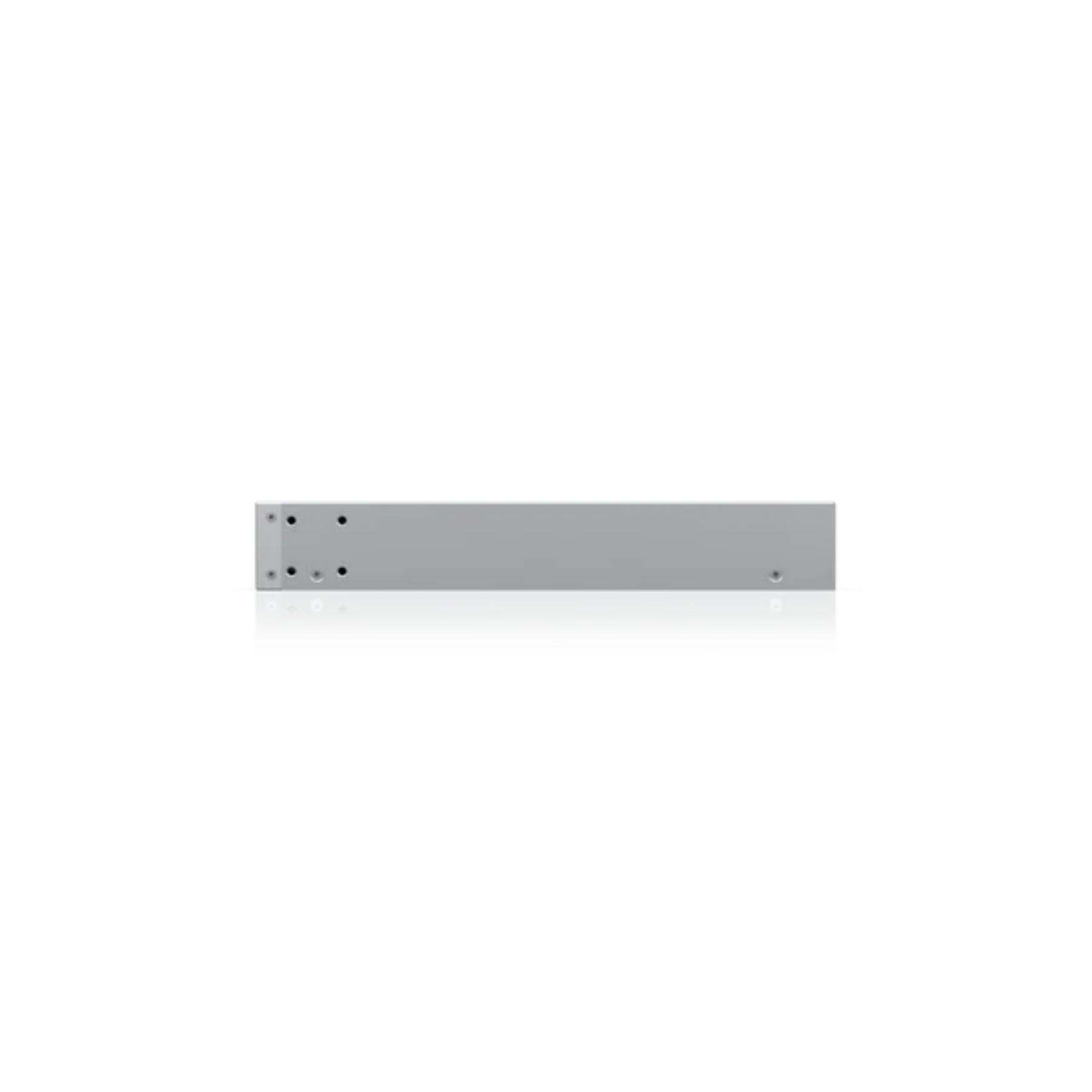

The Switch Pro 24 PoE (USW Pro 24 PoE) is a fully managed switch with (16) GbE, PoE+ RJ45 ports, (8) GbE, PoE++ RJ45 ports, and (2) 10G SFP+ ports. The USW Pro 24 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 24 PoE is the ideal access layer switch for any UniFi system. It combines up to 400W of PoE power with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

  • (1) 1.3" LCM color touchscreen with AR switch management
  • (16) GbE, PoE+ RJ45 ports
  • (8) GbE, PoE++ RJ45 ports
  • (2) 10G SFP+ ports
  • (1) USP RPS DC input
  • 400W total PoE supply
  • Near-silent cooling
  • Layer 3 switching features
Networking Interface (24) 10/100/1000 RJ45 Ports
(2) 1/10G SFP+ Ethernet Ports
Management Interface Ethernet In-Band
Total Non-Blocking Throughput 44 Gbps
Switching Capacity 88 Gbps
Forwarding Rate 65.472 Mpps
Power Method
Universal Input
USP RPS DC Input
100-240VAC/50-60 Hz
52VDC, 7.69A; 11.5VDC, 2.61A
Power Supply AC/DC, Internal, 450W
Supported Voltage Range 100 to 240VAC
Max. Power Consumption (Excluding PoE Output) 50W
LEDs
System
RJ45 Data Ports
SFP+ Data Ports
Status
PoE; Speed/Link/Activity
Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC

Unifi Switch Pro 24 PoE Manual
