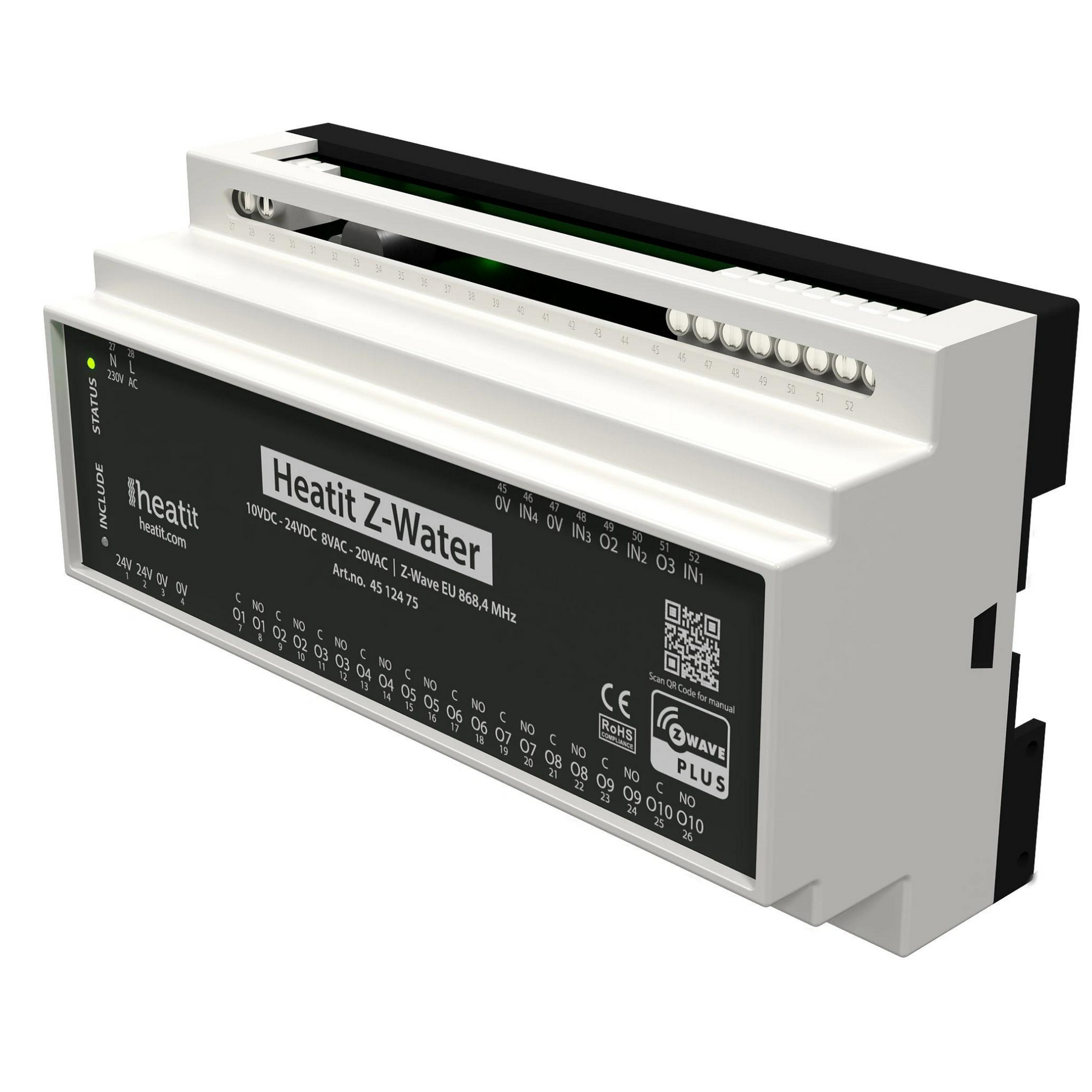

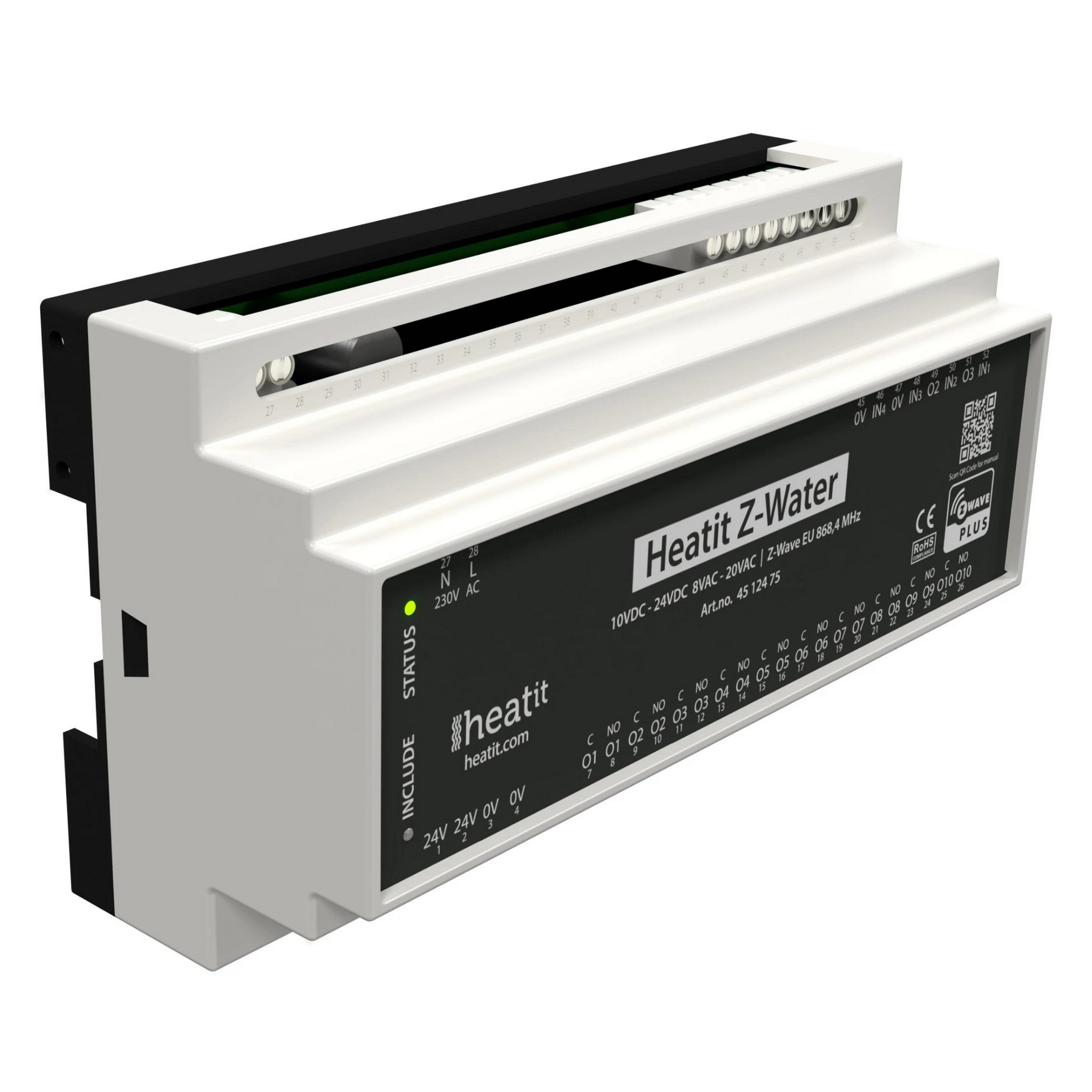

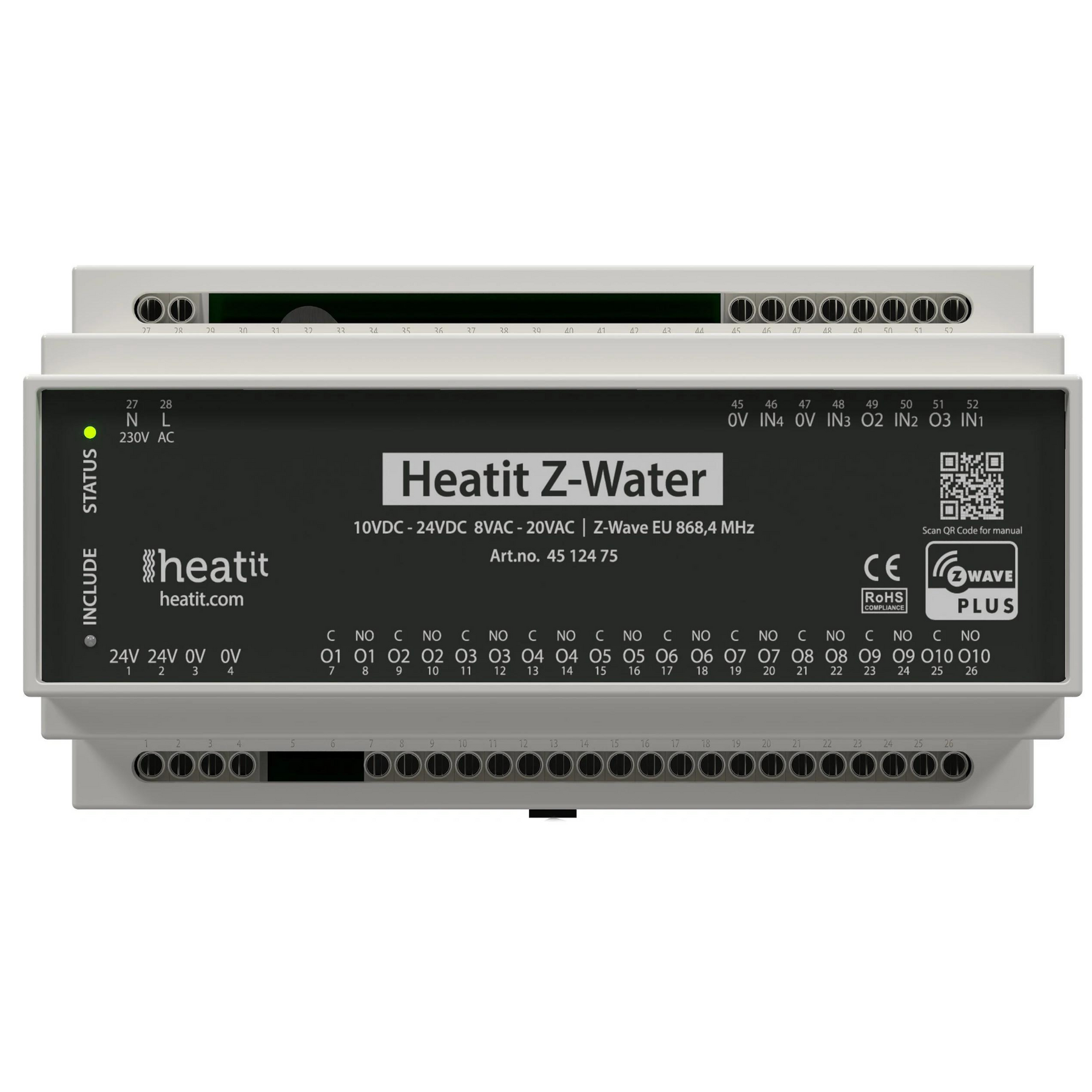

Heatit Z-Water Z-Wave Wet Underfloor Heating Controller

Heatit Z-Water is a DIN-rail regulator for controlling waterbased heating systems. The module clips right onto a DIN-rail to add a variety of functions to your wireless Z-Wave network. Heatit Z-Water is equipped with 10 relay outputs and it has 4 analog inputs.

The module is power supplied from a 230VAC mains connection and is able to deliver an output supply of 24VDC or 230VAC. Heatit Z-Water relay outputs may be freely controlled from the Z-Wave network, and may be used for several purposes, e.g. on/off control of lights, controlling valve actuators in an underfloor heating system, or controlling other home automation systems.

Features

• Regulator for waterbased heating systems
• Relay outputs can control actuators in a waterbased floor heating system
• May be used to control both 24V actuators and 230VAC actuators
• May be used with a Heatit Z-Temp2 or Heatit Z-TRM3 thermostat in each zone
• DIN-rail mounting
• Works as a Z-Wave repeater to improve the Z-Wave network range
• Firmware update (OTA)
• Supports encryption mode: S0, S2 Authenticated Class, S2 Unauthenticated Class

Technical

• IOT Protocol:Z-Wave - 868.4 MHz (EU)
• Voltage:240V
• Max load (Watt - resistive load):150
• Max installation temperature (°C):40
• Min installation temperature (°C):5
• Min. working temperature (°C):5
• Protection grade (IP):IP 21
• Certifications:Z-Wave Plus

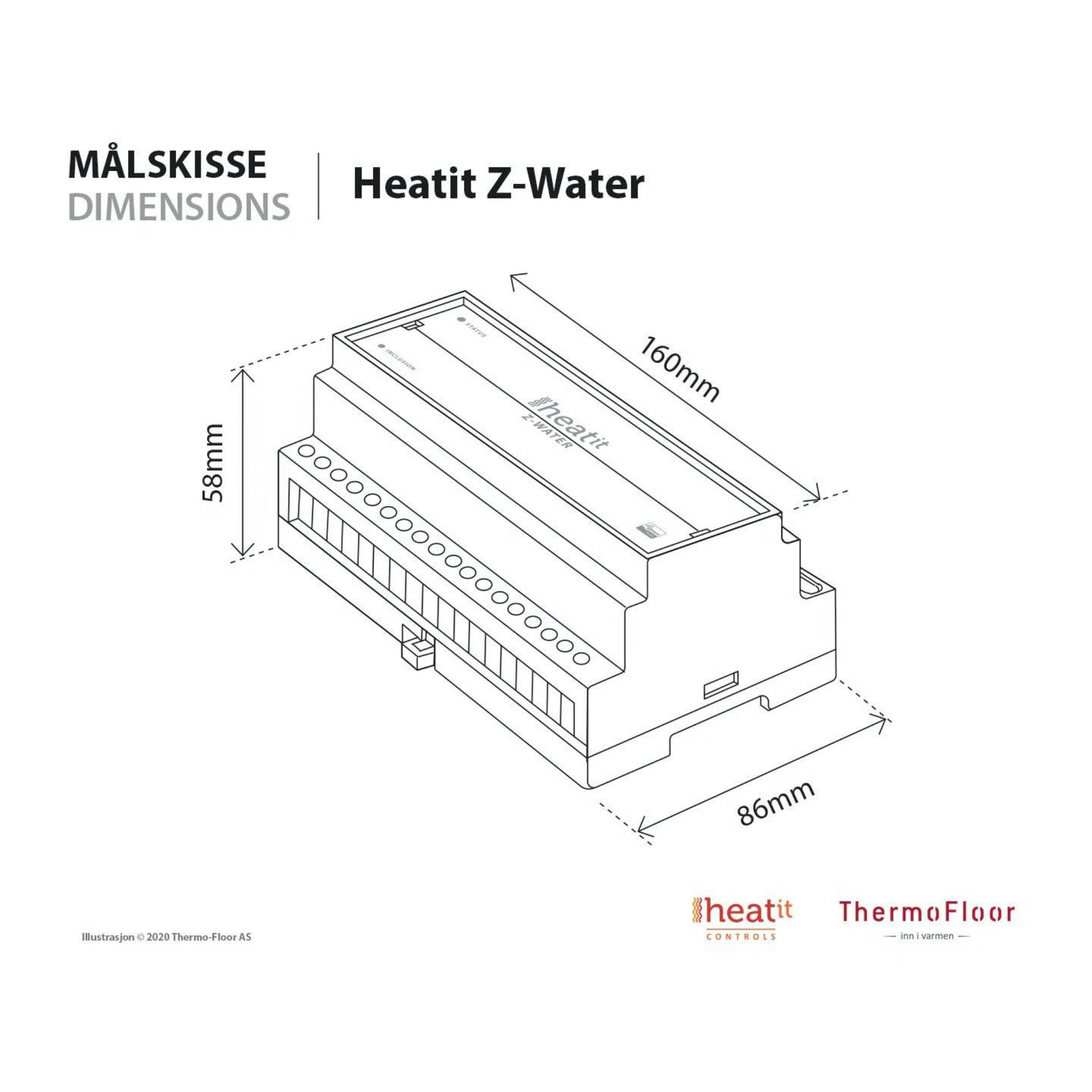

• Dimensions (LxHxW):59x86x159
• Total gross effect (W):1500
• International standard:CE, EMC 2014/30/EU, EN 50491-3:2009, EN 60669-2: 2004, LVD 2014/35/EU, RoHS 2011/65/EU
• Signal range radio frequency (max no. meters):40
• Max connection dimension (mm²):2,5mm²
• Max ambient humidity (%RH):90% RF
• Max temperature without load (°C):40
• Max temperature with load (°C):40
• Product height (mm):59
• Product length (mm):86
• Product width (mm):159
• IOT Chip type:Z-Wave 500 chip
• Z-Wave encryption mode:S0, S2 Authenticated Class, S2 Unauthenticated Class

Manuals

Heatit Z-Water Manual
