FIBARO Heat Controller for Radiators
FIBARO Heat Controller for Radiators
Whitehills
6 Thompson Road
Whitehills Business Park
Blackpool FY4 5QF
United Kingdom
Please note due to a change of branding, your order may be fulfilled with Nice branded products. Please be assured they are identical to FIBARO.

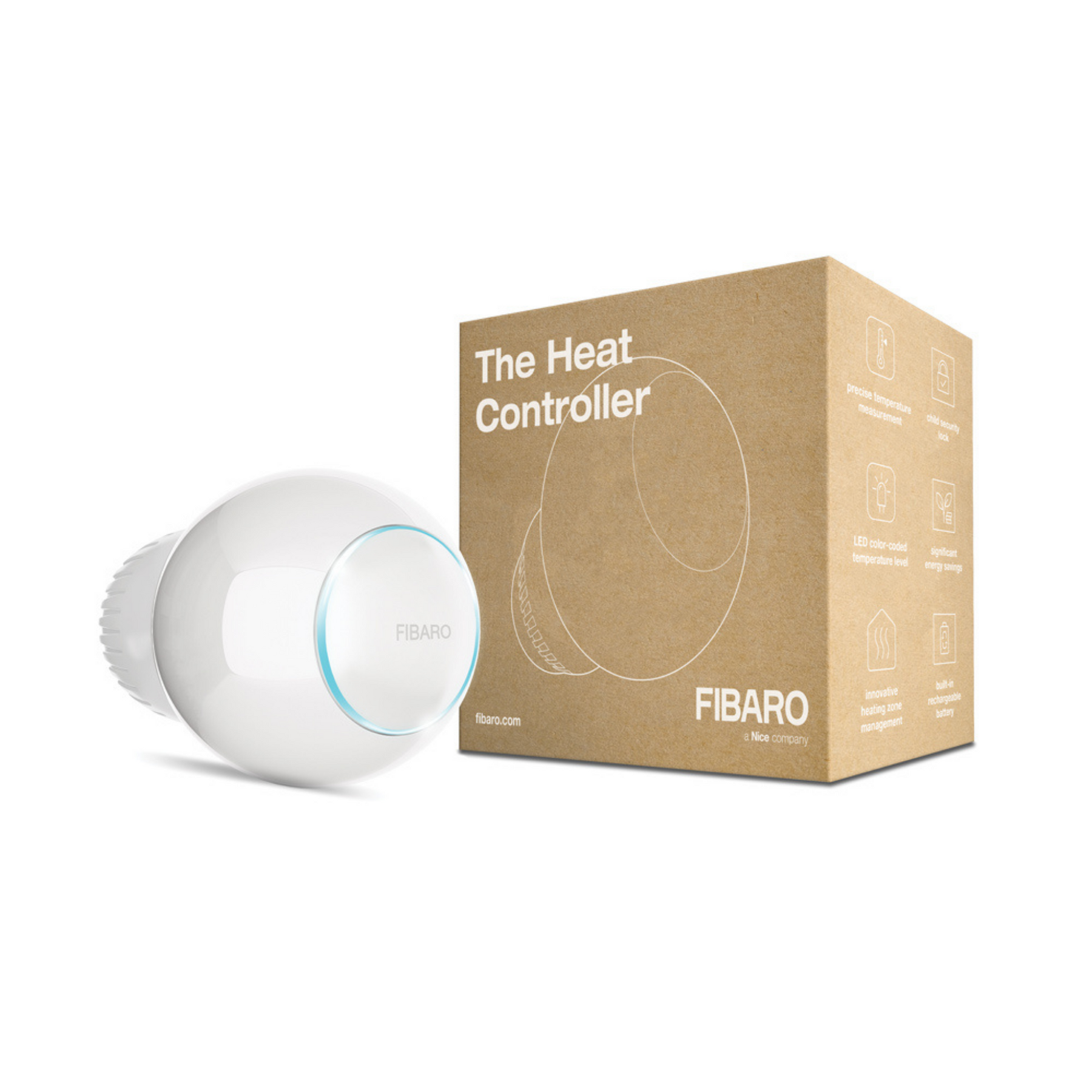

The FIBARO Heat Controller is a remotely controlled thermostatic head to control temperature in your room.
It measures the temperature and automatically adjust the heat level. It can be mounted without tools on three types of thermostatic radiator valves.
You can create schedules via the app to easily manage temperature throughout the week.
The FIBARO Heat Controller replaces your existing thermostatic radiator valve and when correctly set up the device will activate your heating source, e.g. central heating boiler.
What's more, the device comes with a built in temperature sensor allowing you to avoid overheating or under heating - because the temperature should be perfect where you are!
Features
- To be installed on three types of valves: M30 x 1.5, Danfoss RTD-N and Danfoss RA-N
- Compatible with any Z-Wave or Z-Wave+ Controller
- Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 with PRNG-based encryption
- Built-in battery recharged through standard micro-USB port
- Easy installation – no tools required
- Can use a dedicated temperature sensor
- Supports heating schedules
- Automatic calibration
- Anti-freeze function
- Decalc function
- Unconstrained rotation spherical knob to set desired temperature
Specifications
Thermostatic Head:
| Power supply: | SELV 3.7V Li-Poly battery pack (non-replaceable) |
| Supported charger (not included): | micro-USB 5V DC, min. 0.5A |
| Radio protocol: | Z-Wave (S2-enabled) |
| Radio frequency bands: |
868.0-868.6 MHz 869.7-870.0 MHz 2402-2480 MHz |
| Max. transmit power: |
6dBm (Z-Wave) 7dBm (BLE) |
| Operating temperature: | 0-40°C |
| Storage temperature: | -10-25°C |
| Maximum water temperature: | 90°C |
| Temperature measuring accuracy: | 0.5°C (within 0-40°C) |
| Supported valves: |
M30 x 1.5, Danfoss RTD-N, Danfoss RA-N |
| Rated impulse voltage: | 330V (when connected to the USB power supply) |
| Dimensions (diameter x length): |
56 x 74 mm 56 x 87 mm (with adapter) |
| EU directives compliance: |
RED 2014/53/EU RoHS 2011/65/EU |
Temperature Sensor:
| Power supply: | 3.0V CR2032 battery (included) |
| Radio frequency band: | 2402-2480 MHz |
| Max. transmit power: | 1dBm |
| Operating temperature: | 0-40°C |
| Dimensions (diameter x height): | 38 x 12 mm |
| EU directives compliance: |
RED 2014/53/EU RoHS 2011/65/EU |
Manuals
Multi-buy Discount
Purchase any 5 items, receive 5% off!
Purchase any 10 items, receive 10% off!
Available across all of our products!*
*Exclusions may apply.

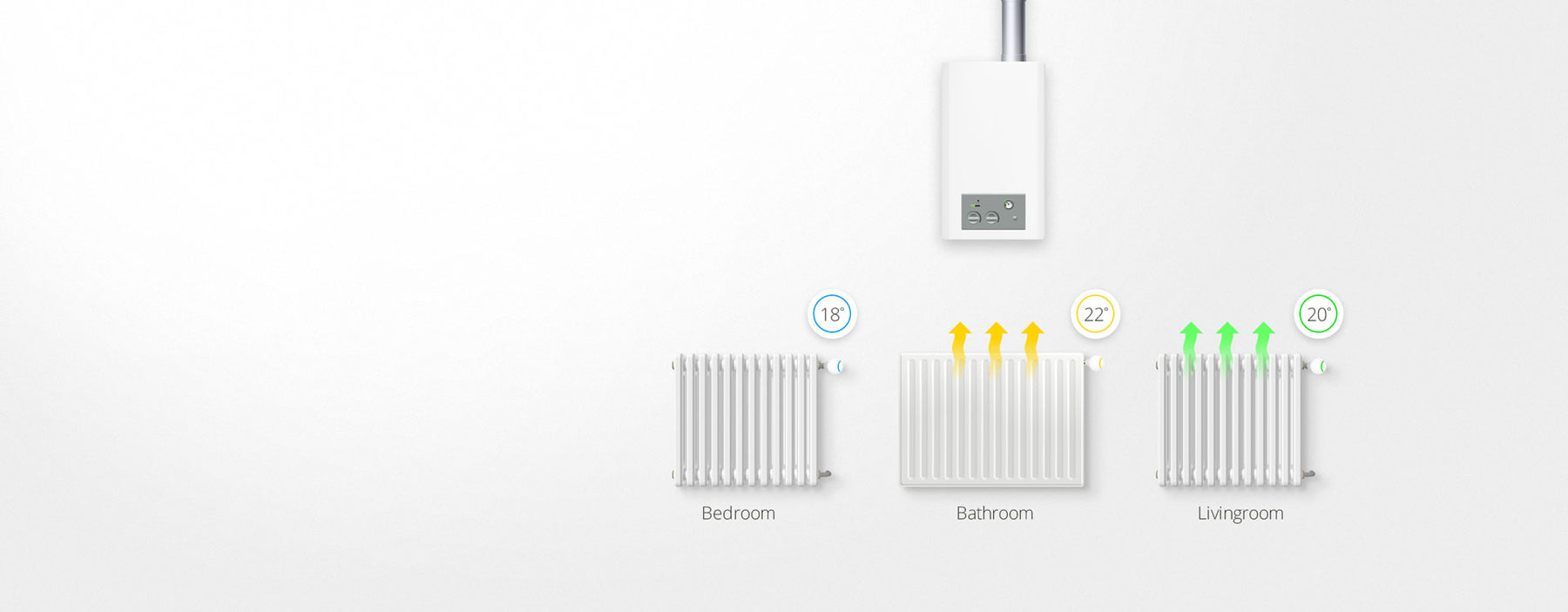

Individual Room Heating Control
